Fig. 3: Examination of NP size-minimization and BHJ morphology.
From: Solar-driven fast photocatalytic hydrogen evolution using size-minimized organic heterojunctions

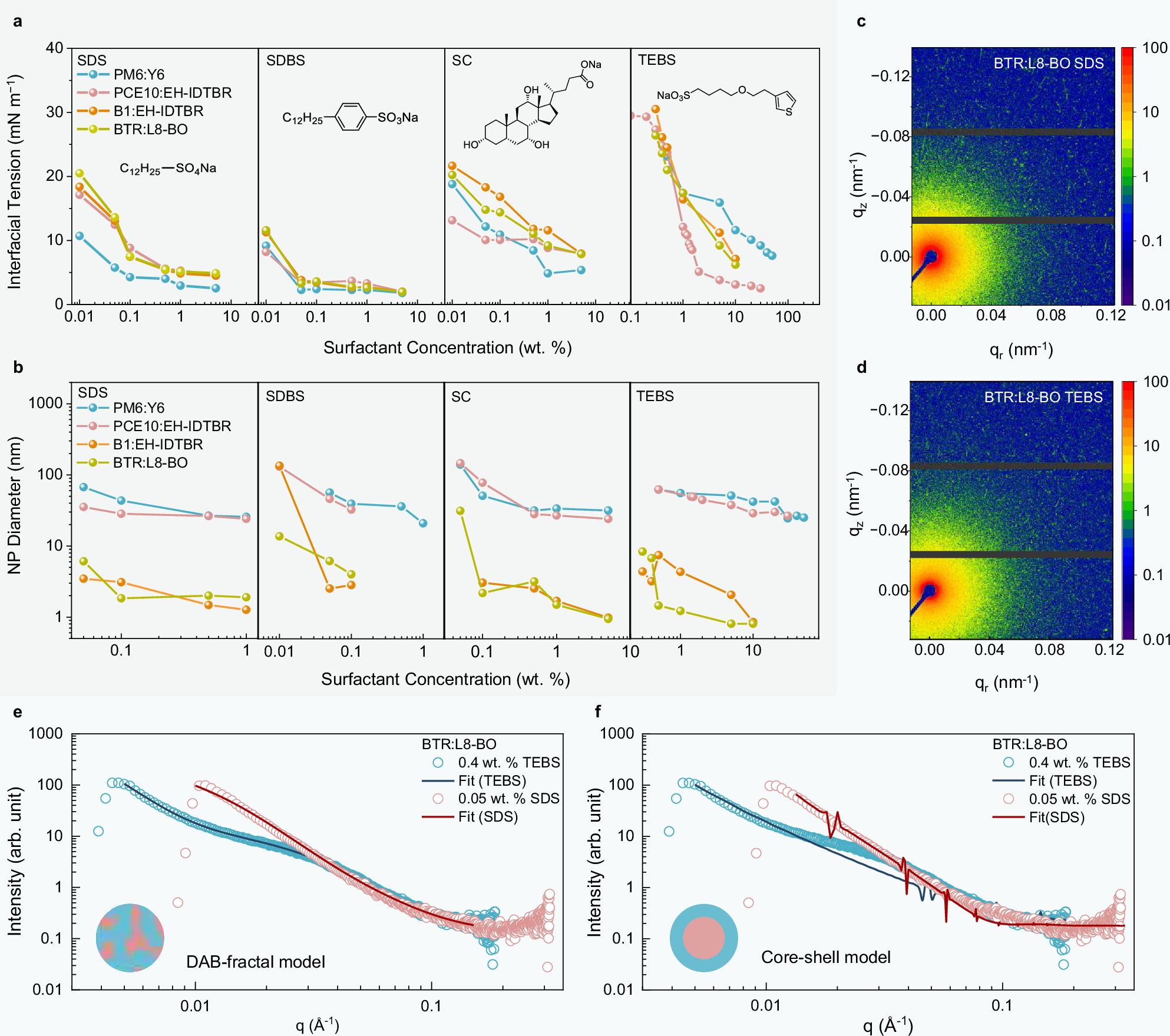

a Interfacial tension of dispersed phase (0.5 mg mL−1 chloroform solution)/continuous phase (varying concentrations of surfactant aqueous solution). The chemical structures of the used surfactants are depicted. b The surfactant concentration-NP diameter plot of polymer-free and polymer-containing D/A pairs. 2D SAXS patterns of BTR:L8-BO NPs stabilized by 0.05 wt.% SDS (c) and 0.4 wt.% TEBS (d). SAXS intensity profiles of BTR:L8-BO NPs fitted with DAB-fractal model (e) and core-shell model (f).
