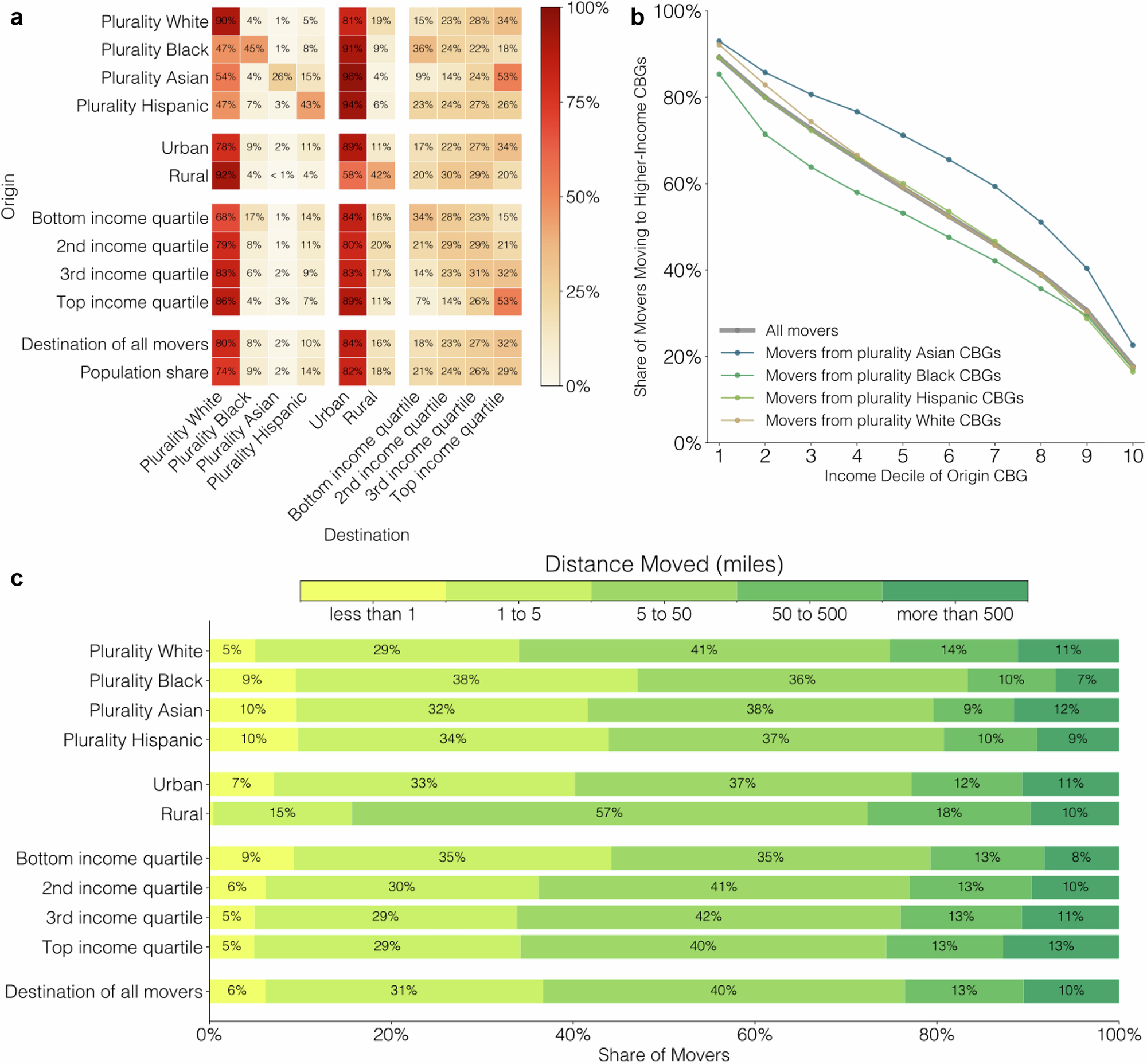

Fig. 4: National migration statistics.
From: Inferring fine-grained migration patterns across the United States
a Flows between ten types of Census Block Groups (CBGs)—plurality white, Asian, Black, and Hispanic; urban versus rural; and bottom, second, third, and top income quartile. Rows correspond to the origin CBG, and columns to the destination CBG; for example, the top left entry indicates that 90% of movers from plurality white CBGs move to plurality white CBGs. The final two rows report the proportion of all movers moving to CBGs of each type, and the population share living in CBGs of each type. We report averages across all years. b Probability of moving to a higher-median-income CBG, conditional on income decile of origin CBG, and plurality race of origin CBG. c Distance moved stratified by CBG type.
