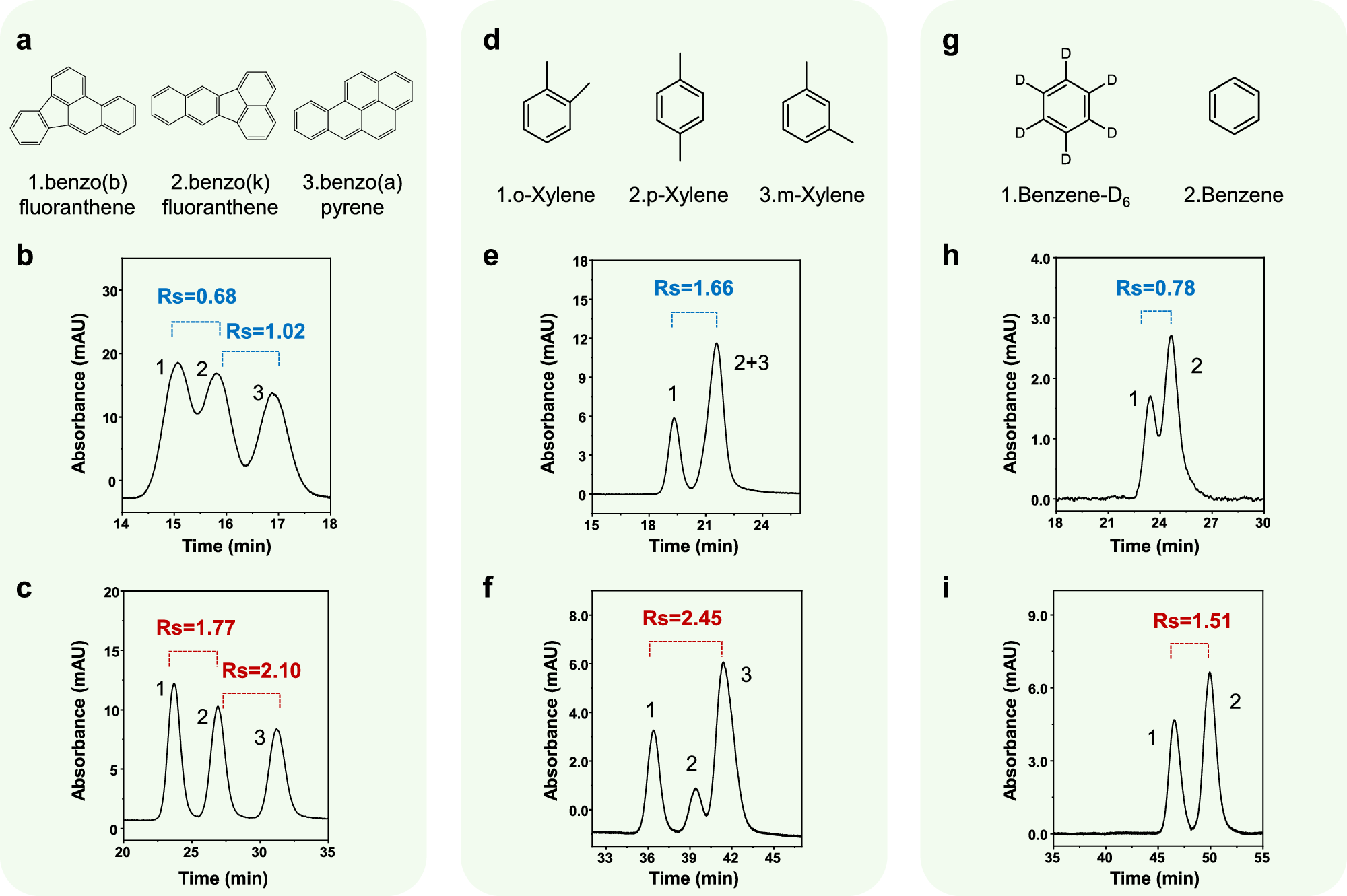

Fig. 5: Separations of critical pairs on monodisperse microspheres with ordered mesoporous structure.
From: Template-in-template assembly nanostructured microspheres for high performance chromatography
Chromatograms of a a polycyclic aromatic hydrocarbon mixture on b TPP and c OMP columns. Mobile phase: 70:30 v/v ACN/H2O. Chromatograms of d a xylene isomer mixture on e TPP and f OMP columns. Mobile phase: 50:50 v/v ACN/H2O. Chromatograms of g benzene/benzene-d6 on h TPP and i OMP columns. Mobile phase: 20:80 v/v ACN/H2O. All separations were performed on 15 cm columns under isocratic elution conditions at a flow rate of 800 nL/min with UV detection at 210 nm.
