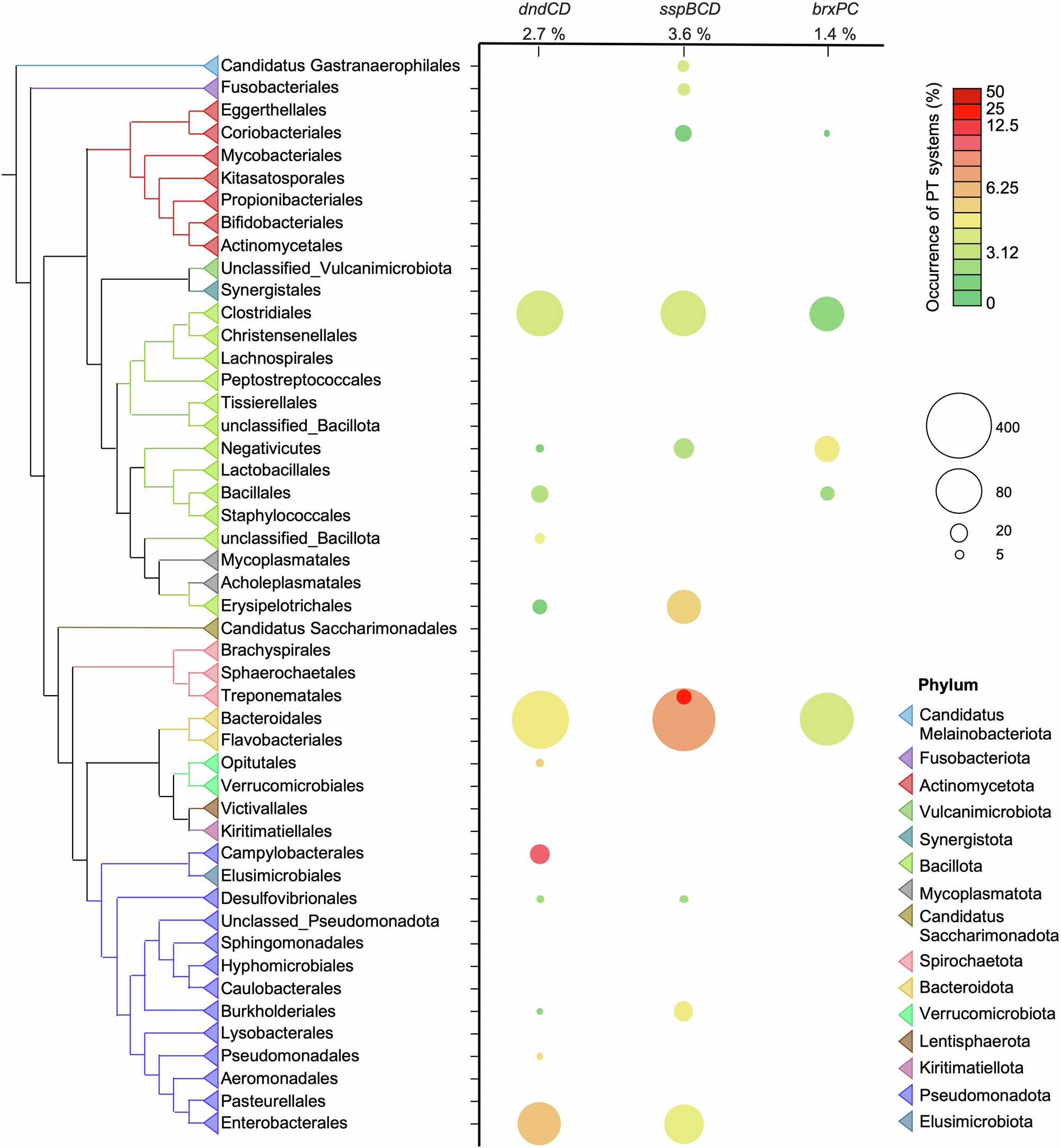

Fig. 4: Phylogenetic distribution of dndCD, sspBCD, and brxPC genes in human gut microbiome genomes.
From: Phosphorothioate DNA modification by BREX type 4 systems in the human gut microbiome
The reference phylogeny was reconstructed from the concatenated alignment of 10 ribosomal proteins. The colors of the triangles in the tree show the taxa at the order level. The occurrence of gene clusters was quantitatively presented by the colors and size of circles. For better visualization, orders containing <5 genomes were hidden. Source data are provided in Supplementary Table S5.
