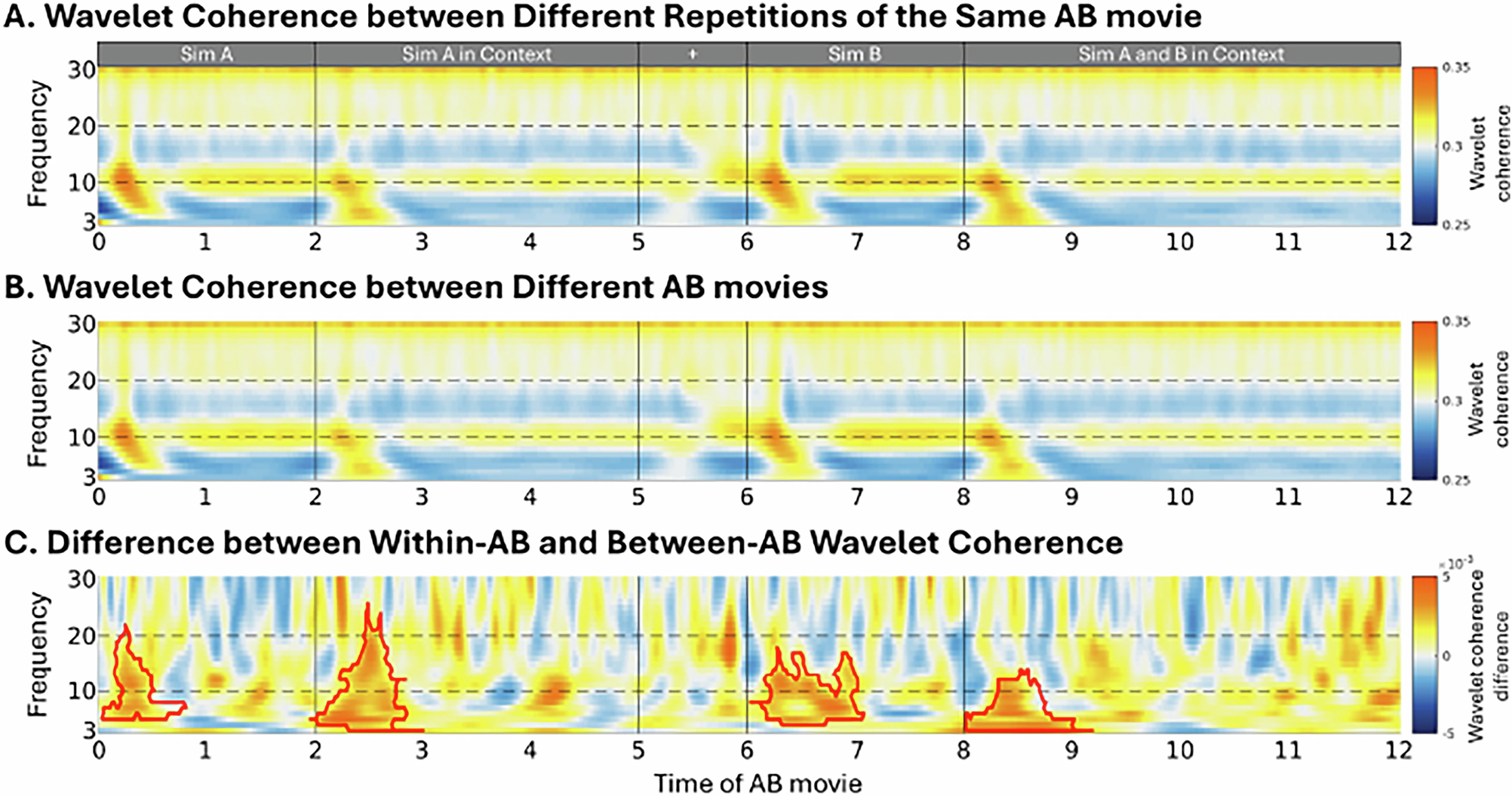

Fig. 4: Time–frequency feature identification.
From: Episodic events are flexibly encoded in both integrated and separated neural representations
A Within-AB wavelet coherence, B between-AB wavelet coherence, and (C) their coherence differences. Significant clusters, marked by red edges, indicate the time-frequency features that were stable across the five AB repetitions and sensitive to different AB movie content. The identified features were used as a template to extract the power values of the AB movies, which were used in the subsequent representational similarity analysis.
