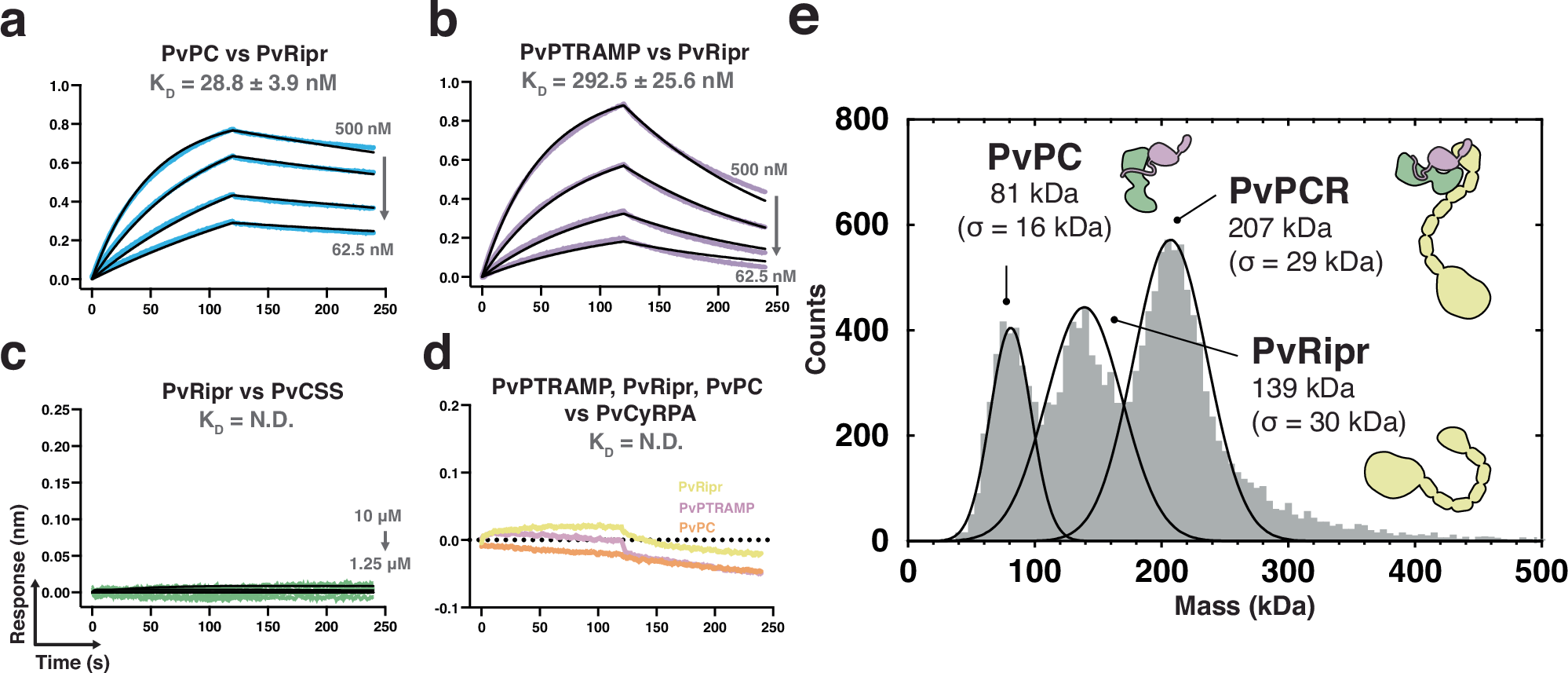

Fig. 3: The PvPC heterodimer forms a stable complex with PvRipr.

From: PTRAMP, CSS and Ripr form a conserved complex required for merozoite invasion of Plasmodium species into erythrocytes

Fig. 3: The PvPC heterodimer forms a stable complex with PvRipr.

a–c Representative biolayer interferometry sensorgrams of PvPC, PvPTRAMP, PvCSS, and PvRipr binding assays. Dilution series data are shown in color and 1:1 model best fit is shown in black. d Representative sensorgrams of PvPTRAMP, PvRipr and PvPC binding to PvCyRPA at an analyte concentration of 5 μM. Data could not be reliably fit with a model, and so no best fit has been shown. e Mass distribution of PvPC and PvRipr after pre-incubation as measured by mass photometry. Histogram data are shown in gray and Gaussian curve fit in black. Source data for all graphs are provided as a Source Data file.
