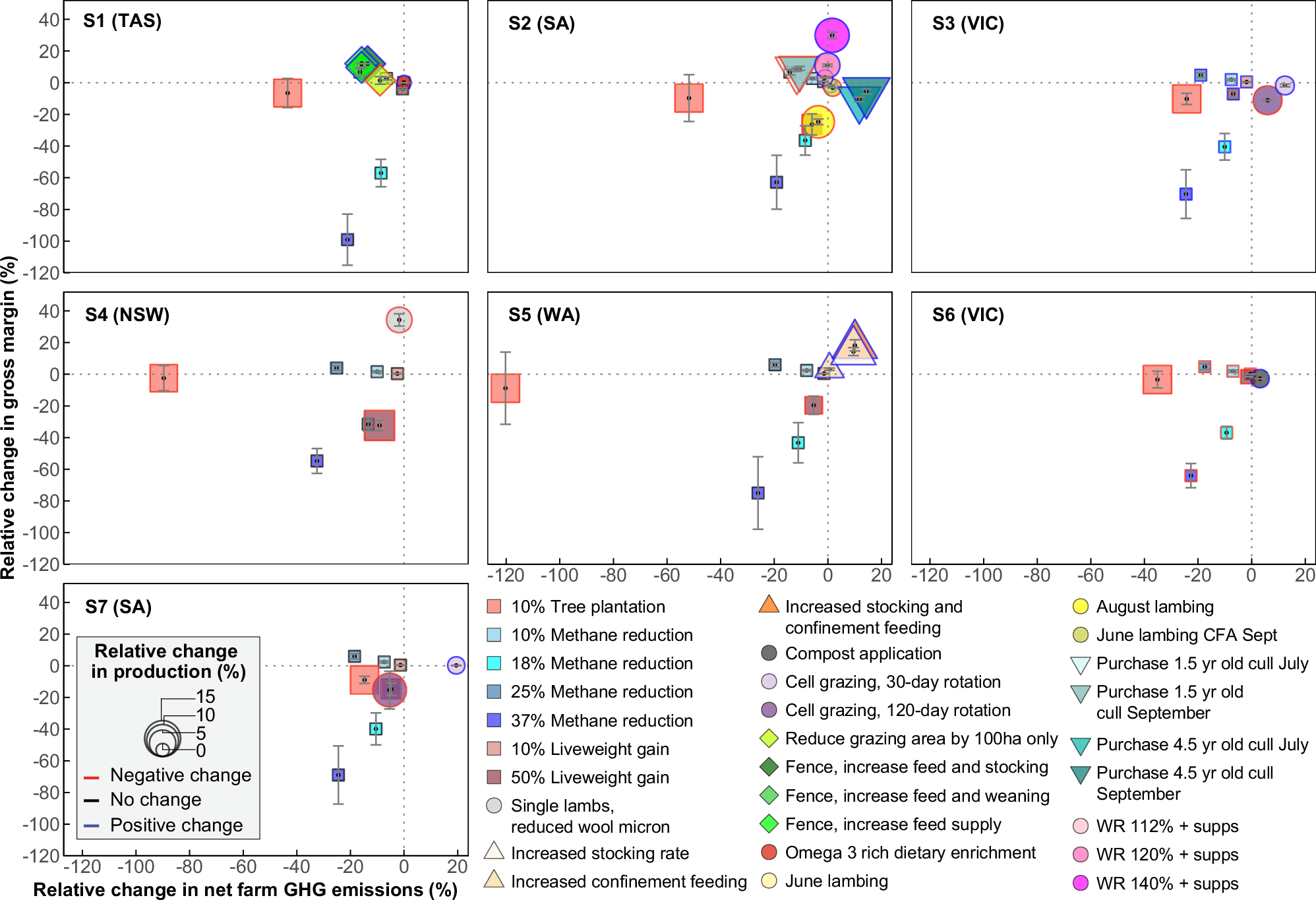

Fig. 2: Average change in enterprise gross margin, net GHG and production relative to each baseline for common and/or demand-driven interventions across multiple agroecological zones.
From: Tailoring Australian carbon farming can realise greater co-benefits
Relative change (points) computed as the mean of n = 30 climate-years. Error bars show range in gross margins at low and high carbon and sheep prices. Bubble size represents relative change in annual protein production. Blue, red, and black bubble margins indicate positive, negative, or zero change in livestock production relative to baseline conditions. Abbreviations S1-7 reflect farms. CFA cast for age, DSE dry sheep equivalents, NSW New South Wales, SA South Australia, TAS Tasmania, VIC Victoria, WA Western Australia, WR weaning rates, ‘+ve’ positive, ‘-ve’ negative.
