Fig. 1: Schematic diagram of the grinding strategy for enhancing chiral optical properties and the photophysical properties of R/S-In and R/S-InSb crystals. | Nature Communications

Fig. 1: Schematic diagram of the grinding strategy for enhancing chiral optical properties and the photophysical properties of R/S-In and R/S-InSb crystals.

From: Mechanochemical engineering of chiroptical properties in indium-based chiral metal halides by grinding

Fig. 1: Schematic diagram of the grinding strategy for enhancing chiral optical properties and the photophysical properties of R/S-In and R/S-InSb crystals.

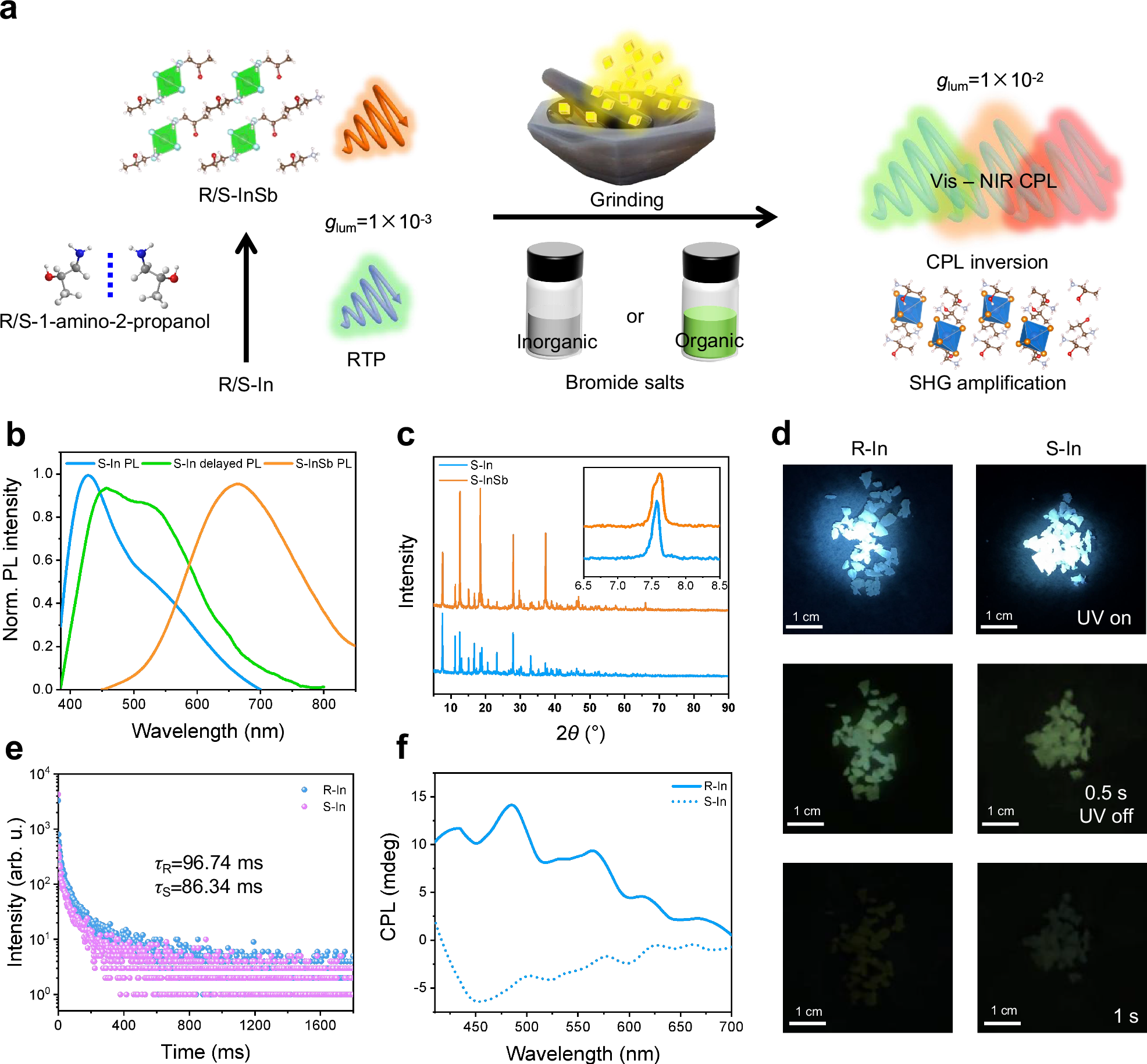

a Schematic diagram of the grinding strategy for boosting chiral optical properties. b PL and delay PL spectra of S-In and S-InSb crystals. c PXRD patterns of S-In (blue line) and S-InSb (orange line). d PL and RTP behaviors of R/S-In. e Time-resolved PL decay curves of R/S-In. f The CPL spectra of R/S-In. Source data are provided as a Source Data file.
