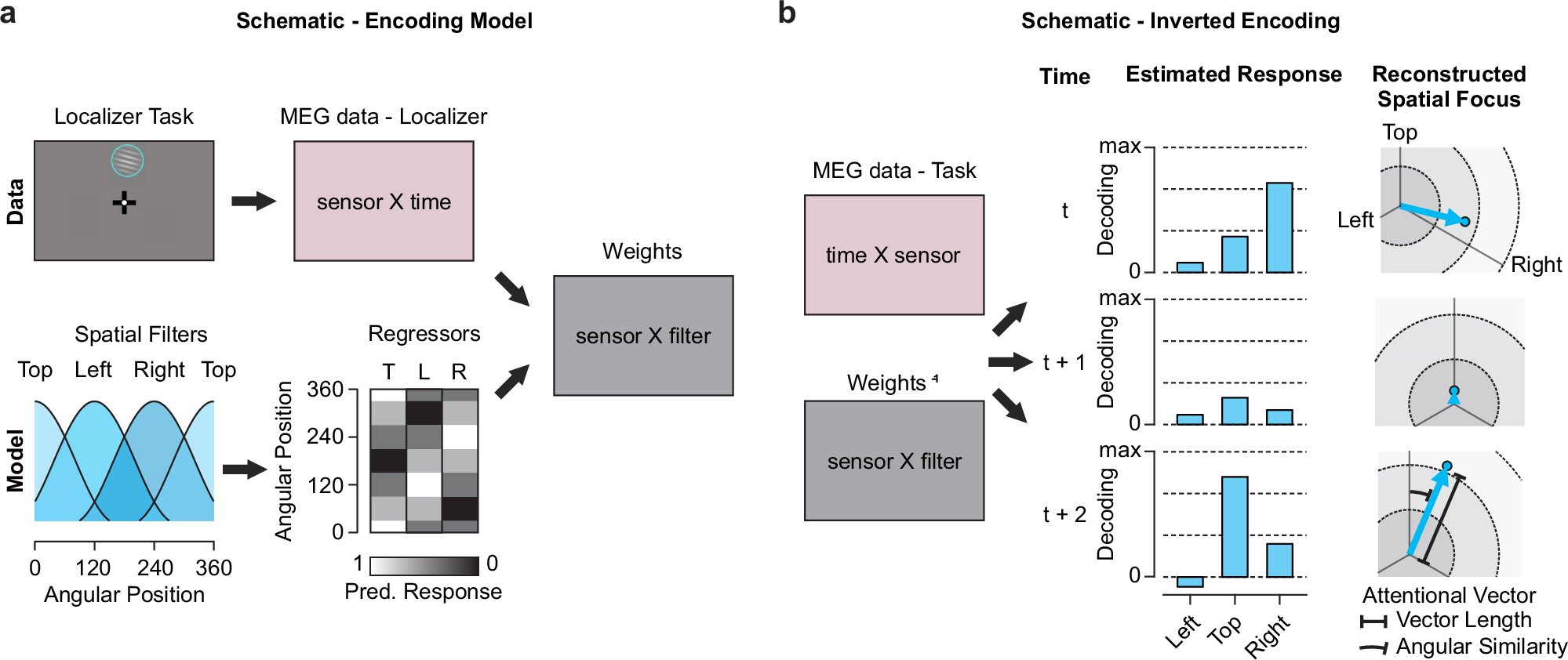

Fig. 2: Reconstructing the locus and strength of spatial attention with inverted encoding models.

a Training the encoding model. The encoding model consists of a set of linear spatial filters defining the response given a certain stimulus. It comprises each information channel’s tuning curve, which when discretized at presentation angles (T top, L left, R right) forms the Design Matrix with the normalized predicted response (from 0 to 1). In combination with MEG data from the retinotopic stimulus localizer (see “Methods”), the weighting of the information channels within each MEG sensor can be estimated by solving the general linear model (GLM). b Inverting the weights to estimate the channel responses during the decision-making task. We multiplied the inverted weighting matrix with the MEG data to estimate the response of the information channels at each time point (t). From the estimated responses, we reconstructed the focus of spatial attention as the vector sum of the three spatial channel responses (left, top, right). The resulting Attentional Vector featured first, the length corresponding to the overall amount of attention and second, the angular similarity to the three stimulus targets.
