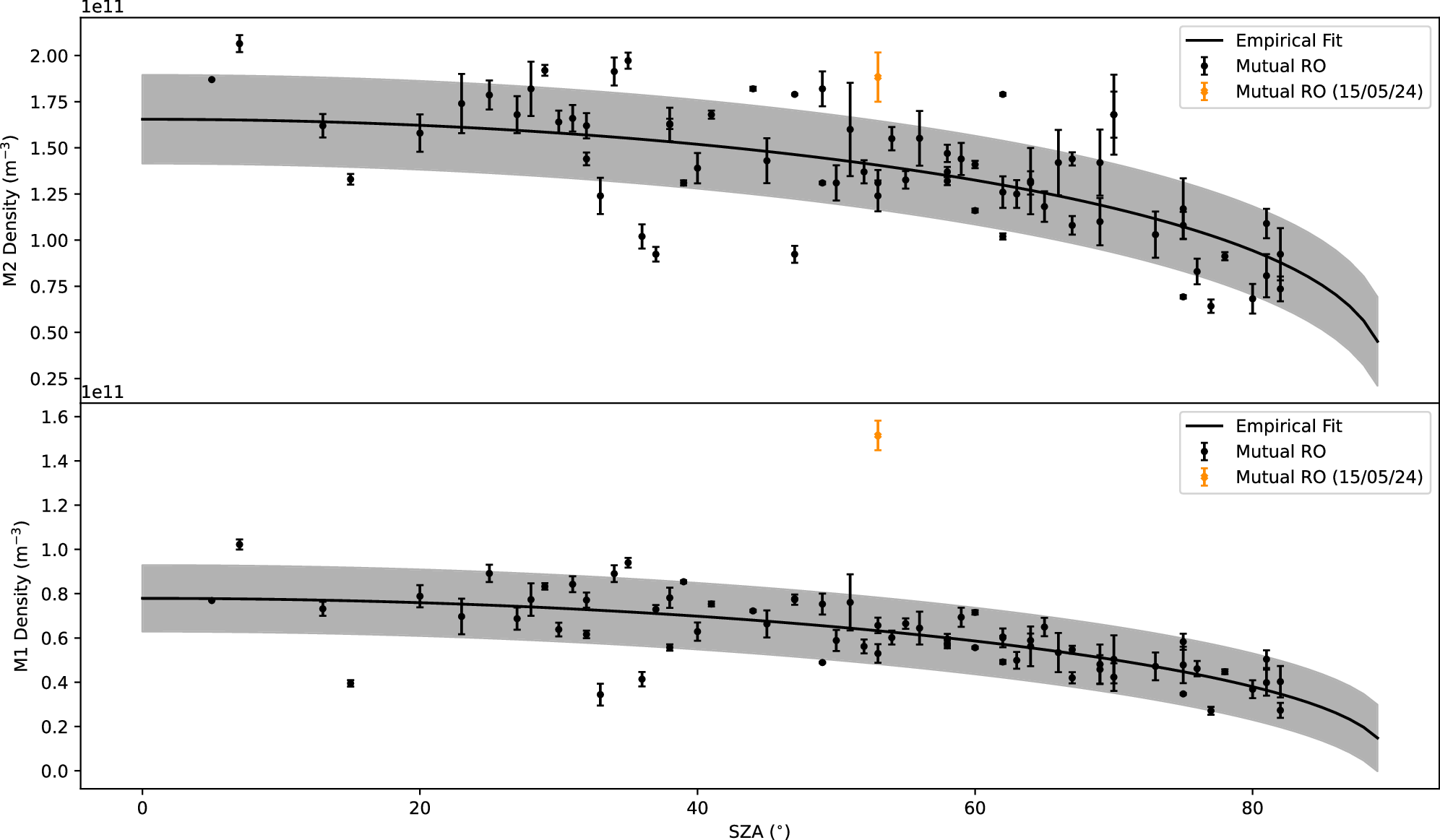

Fig. 3: The trend of the change in peak electron density for the M2 (top panel) and M1 (bottom panel) against solar zenith angle from the period of this mutual RO campaign (02/04/21- 17/06/24). | Nature Communications

Fig. 3: The trend of the change in peak electron density for the M2 (top panel) and M1 (bottom panel) against solar zenith angle from the period of this mutual RO campaign (02/04/21- 17/06/24).

From: Martian ionospheric response during the may 2024 solar superstorm

Fig. 3: The trend of the change in peak electron density for the M2 (top panel) and M1 (bottom panel) against solar zenith angle from the period of this mutual RO campaign (02/04/21- 17/06/24).The alternative text for this image may have been generated using AI.

The densities from the measurement on the 15/05/24, showing that effect of the solar storm was far greater on the M1 layer. The grey envelope is the 1σ uncertainty, the derivation of this can be found in Supplementary Fig. 3. Source data are provided as a Source Data file.
