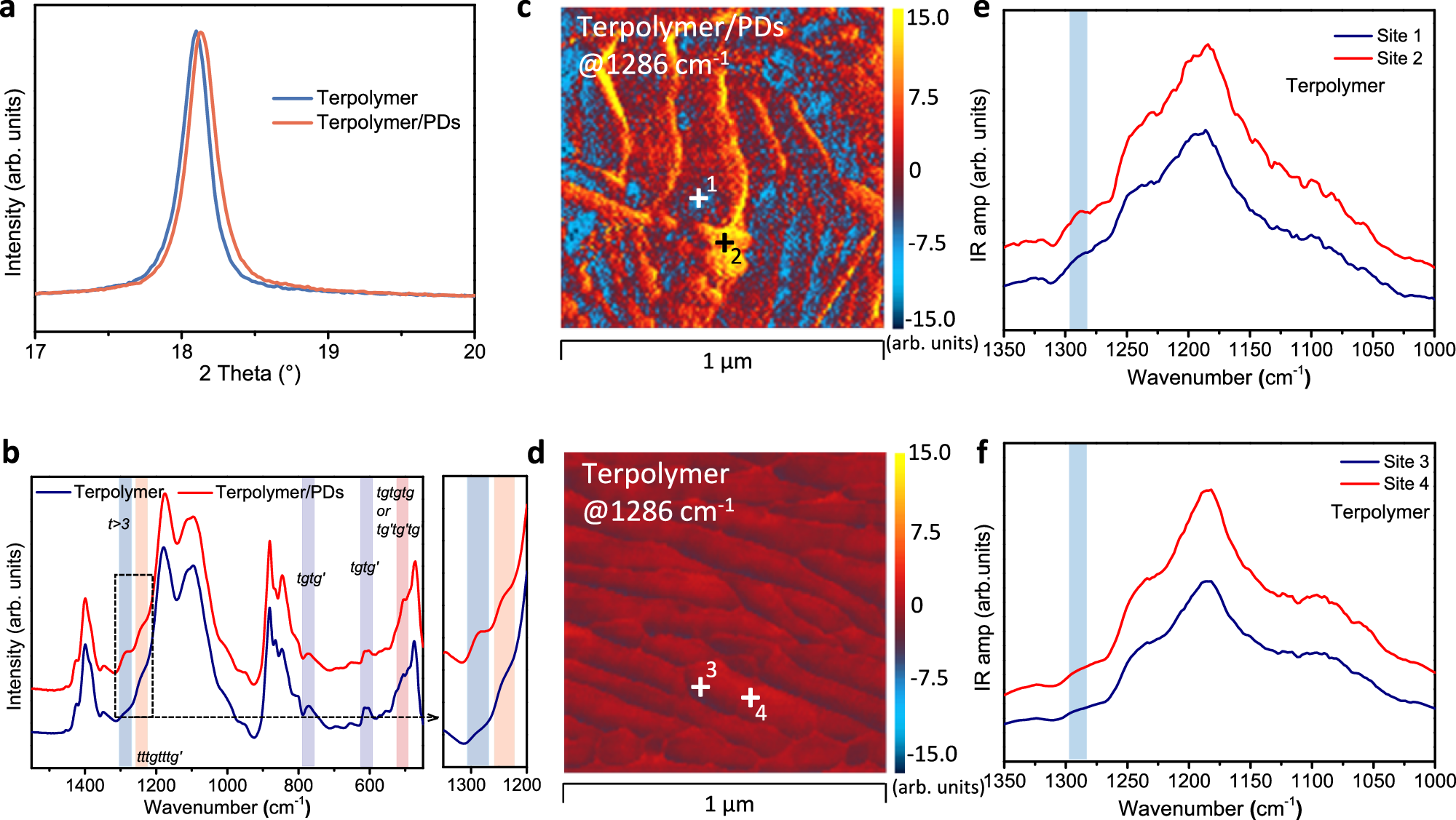

Fig. 2: Structural analysis of terpolymer and terpolymer/PDs composite films with uniform distribution of all-trans conformations.
From: Biomimetic actuator crafted from a relaxor ferroelectric polymer nanocomposite
a X-ray diffraction patterns of terpolymer and terpolymer/PDs nanocomposite (cPDs = 0.5 wt%). b FT-IR spectra of terpolymers with various contents of PDs. AFM-IR characterization of the polar phase distribution in (c) the terpolymer/PDs nanocomposite (cPDs = 0.5 wt%) and (d) terpolymer. Local IR spectra of the marked positions for (e) the terpolymer/PDs nanocomposite (cPDs = 0.5 wt%) and (f) the terpolymer.
