Main

For most crop plants, the breeding of new, advanced cultivars takes several years. Following crossing of selected parent lines, 4–6 generations of inbreeding are typically required to develop genetically stable lines for evaluation of agronomic traits and yield. This is particularly time consuming for field-grown crops that are often limited to only 1–2 generations per year. Here, we present flexible protocols for ‘speed breeding’ that use prolonged photoperiods to accelerate the developmental rate of plants2, and the harvesting and germination of immature seed, thereby reducing generation time. We highlight the opportunity presented by speed breeding and detail protocols to inspire its widespread adoption as a state-of-the-art breeding and research tool.

To evaluate speed breeding as a method to accelerate applied and basic research on cereal species, standard genotypes of spring bread wheat (T. aestivum), durum wheat (T. durum), barley (H. vulgare) and the model grass Brachypodium distachyon were grown in a controlled-environment room with extended photoperiod (22 hours light/2 hours dark) (Fig. 1; Methods: Speed breeding I; Supplementary Table 1). A light/dark period was chosen over a continuous photoperiod to support functional expression of circadian clock genes3. Growth was compared with that of plants in glasshouses with no supplementary light or heating during the spring and early summer of 2016 (Norwich, UK). Plants grown under speed breeding progressed to anthesis (flowering) in approximately half the time of those from glasshouse conditions. Depending on the cultivar or accession, plants reached anthesis in 35–39 days (wheat, with the exception of Chinese Spring) and 37–38 days (barley), while it took 26 days to reach heading in B. distachyon (Fig. 2a–d; Supplementary Tables 2–4). Concurrently, the corresponding glasshouse plants had only reached the early stem-elongation or three-leaf growth stage, respectively. Wheat seed counts per spike decreased, although not always significantly, in the speed breeding chamber compared to the glasshouse with no supplementary light (Supplementary Table 5) and both wheat and barley plants produced a healthy number of spikes per plant, despite the rapid growth (Supplementary Table 6). The viability of harvested seeds appeared to be unaffected by speed breeding, with similar seed germination rates observed for all species (Supplementary Table 7). Moreover, crosses made between wheat cultivars under speed breeding conditions produced viable seeds, including crosses between tetraploid and hexaploid wheat (Supplementary Table 8). These conditions were also used to successfully reduce the generation time of the model legume Medicago truncatula and the rapid-cycling pea (P. sativum) variety JI 28224 (Supplementary Fig. 1a,b; Supplementary Tables 9, 10).

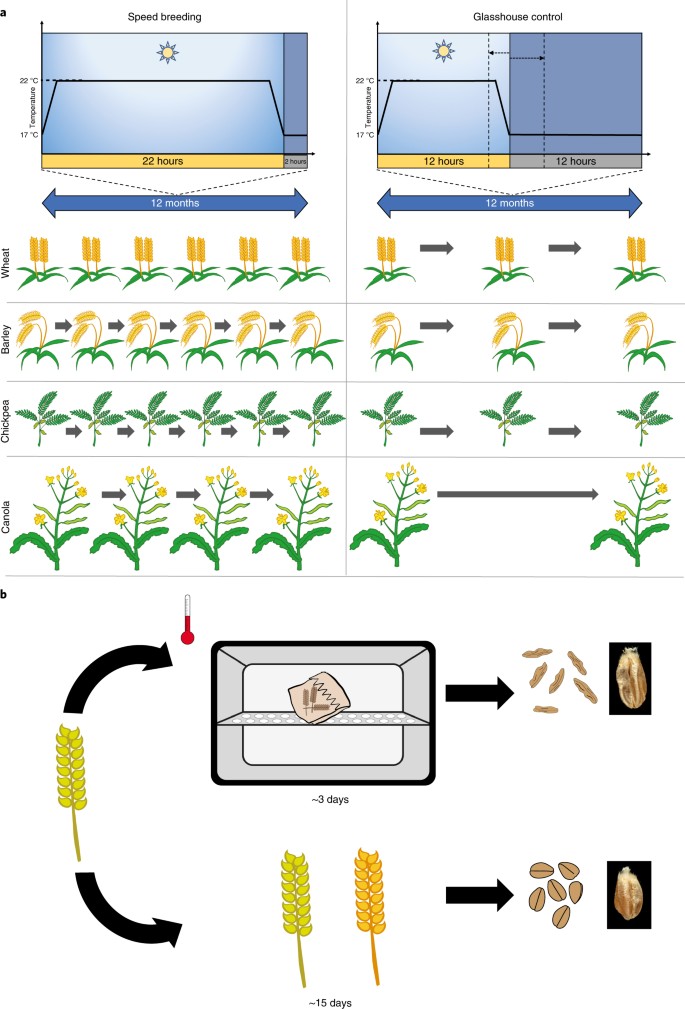

Fig. 1: Speed breeding accelerates generation time of major crop plants for research and breeding.
figure 1

a, Compared to a glasshouse with a natural variable photoperiod (10–16 hours), where only 2–3 generations of wheat, barley, chickpea and canola can be achieved per year (right), speed breeding enables 4–6 generations of these crops to be grown in a year (left). These values are representative of relatively rapid cycling cultivars of each crop. b, Harvesting of immature spikes and drying them in an oven/dehydrator (~3 days) enables faster seed to seed cycling compared to the normal seed ripening process, which takes about 15 days, although it comes with a loss of grain weight.

Full size image
Fig. 2: Accelerated plant growth and development under speed breeding (left) compared to control conditions (right).
figure 2

a, Wheat (T. aestivum cv. Cadenza) at 38 days post sowing. b, Barley (H. vulgare cv. Braemar) at 41 days post sowing. c, Brachypodium (B. distachyon accession Bd21) at 36 days post sowing. Scale bar = 20 cm. d, Representative graph depicting the development stages of wheat, barley and brachypodium (x axis in days) under speed breeding (top line for each crop) conditions in a controlled environment chamber compared to control conditions (bottom line for each crop) in a glasshouse during UK summertime with no supplementary light or heat. e, Canola (B. napus cv. Bravo), pictured at 50 days post sowing. f, Chickpea (C. arietinum cv. Jimbour), pictured at 35 days post sowing. Scale bar = 50 cm. g, Representative graph depicting the development stages of canola and chickpea (x axis in days) under speed breeding conditions in a supplemented glasshouse (top line for each crop) compared to control conditions (bottom line for each crop) in a glasshouse in Queensland, Australia, with no supplementary light.

Full size image

In an alternative, yet similar, protocol for rapid generation cycling, we evaluated a collection of spring wheat, barley, canola and chickpea varieties in Queensland, Australia, in a temperature-controlled glasshouse fitted with high-pressure sodium lamps to extend the photoperiod to a day-length of 22 hours. A control treatment in a glasshouse used a natural 12-hour control photoperiod. Both used the same temperature regime (22/17 °C; Fig. 1; Methods: Speed breeding II; Supplementary Table 1). Time to anthesis was significantly reduced for all crop species relative to the 12-hour day-neutral photoperiod conditions, where the average reduction was, depending on genotype, 22 ± 2 days (wheat), 64 ± 8 days (barley), 73 ± 9 days (canola) and 33 ± 2 days (chickpea) (Fig. 2e–g; Supplementary Tables 11–14). Analysis of growth stage progression revealed normal, though accelerated, development for all species (Fig. 2e–g; Supplementary Tables 15–18) compared to the day-neutral conditions. Wheat plants produced significantly more spikes than those in day-neutral conditions and grain number was unaffected by the rapid development in both wheat and barley (Supplementary Tables 19, 20). Notably, time to anthesis was more uniform within each species under speed breeding conditions (Supplementary Tables 11–14)—an important feature, as synchronous flowering across genotypes is desirable for crossing. Additionally, wheat seed was harvested before maturity: 14 days post anthesis in speed breeding conditions, and following a 4-day cold treatment seed viability was high (Supplementary Table 21), indicating that generation time can be further reduced by harvesting immature seed without the need for labour-intensive embryo rescue5. Seed viability of all other species under Speed breeding II conditions was either unaffected or improved compared with day-neutral conditions (Supplementary Tables 22–24). Since temperature greatly influences the rate of plant development6, generation time may be further accelerated by elevating temperature. This may, however, induce stress and affect plant performance.

Seed production (g per plant) of canola and chickpea was similar between speed breeding and day-neutral conditions (Supplementary Tables 25, 26). Plant growth and seed yield in wheat and barley plants grown for a second generation under speed breeding I and II were unaffected, except for a 2 day delay in early plant development, as well as a final reduction of total number of seeds harvested per plant, when plants were grown from immature seed (Supplementary Fig. 2–3; Supplementary Tables 27–29). Considering the time taken to produce viable seed under speed breeding in the glasshouse, wheat, barley, canola and chickpea, depending on the variety, could produce between 4 and 6 generations per year (Supplementary Table 30). These results highlight the opportunity to apply speed breeding across several important crop species without jeopardising the production of subsequent generations. The application of speed breeding conditions in a glasshouse fitted with supplementary lighting exemplifies the flexibility of the approach and may be preferred over growth chambers if rapid generation advance is to be applied to large populations, such as in breeding programs.

SSD is commonly used in breeding and research programs to facilitate development of homozygous lines following a cross7. This process only requires one seed per plant to advance each generation. To investigate the ability of speed breeding to accelerate SSD, where plants are typically grown at high density, wheat and barley genotypes were grown in 100-cell trays under both speed breeding and 12-hour day-neutral photoperiod conditions in the glasshouse. This equated to a density of approximately 900 plants per m2. Generation time was shorter than for plants grown at lower density in the previous speed breeding experiments (Supplementary Tables 31, 32). This was probably caused by stress or plant competition as a result of the higher density, which is known to hasten flowering8. In most cases, each plant produced a single viable tiller containing on average 19.0 ± 1.3 and 18.6 ± 1.8 seeds for wheat and barley, respectively. Seed viability was 80% for wheat harvested at 2 weeks post anthesis and 100% for both wheat and barley harvested at 4 weeks post anthesis (Supplementary Tables 31, 32). Therefore, integrating speed breeding and SSD techniques can effectively accelerate the generation of inbred lines for research and plant breeding programs. This method could facilitate sample collection for genetic studies with seed sowed in a 96-cell format to conform to a 96-well DNA plate.

In an additional protocol (Supplementary Table 1; Methods: Speed breeding III), we successfully implemented a low-cost speed breeding growth room design, lit exclusively by LEDs to reduce the operational cost of lighting and cooling (Supplementary Table 33), which permits 4–5 generations a year, depending on genotype and crossing plans (Supplementary Fig. 4). These results highlight the flexibility of tailoring the speed breeding ‘recipe’ to suit the local purpose and resources.

Besides exploring the various ways in which speed breeding can be used to accelerate generation time, we also evaluated the ability to phenotype some key adult plant phenotypes of wheat and barley. We observed that phenotypes associated with the ethylmethane sulfonate-induced mutation of the awn suppressor B1 locus9 and the Green Revolution Reduced height (Rht) genes in wheat10 could be accurately recapitulated in the controlled-environment room conditions (Fig. 3a,b). We also evaluated the effects that speed breeding might have on disease by inoculating resistant (Sumai 3) and susceptible (Timstein) wheat spikes with Fusarium graminearum, the causal agent of fusarium head blight (FHB). Consistent with expectations, we found clear signs of FHB progression in the susceptible cultivar, and little to no disease progression in the resistant cultivar (Fig. 3c; Supplementary Table 34). Previously, it has been shown that adult plant resistance to wheat leaf rust (caused by Puccinia triticina f. sp. tritici) and wheat stripe rust (Puccinia striiformis f. sp. tritici) can also be scored accurately under speed breeding conditions11,12. We also evaluated the effect of loss of function of FLOWERING LOCUS T-B1 in the F6 recombinant inbred line of Paragon x W352 under speed breeding conditions. We observed the expected late flowering phenotype in the recombinant inbred line, albeit within fewer days and with fewer leaves produced (Fig. 3d; Supplementary Table 35). To study the effect of speed breeding on cuticular β-diketone wax production in barley, we grew wild type and Eceriferum mutants13. The mutant leaf sheaths exhibited a clear, decreased glaucous appearance in the flag leaf stage, compared to the control (Fig. 3e). We also studied polyploid wheat chromosome pairing at metaphase I in meiosis in the presence and absence of the PAIRING HOMOEOLOGOUS 1 (Ph1) locus14. We grew wheat carrying Ph1 and wheat-rye hybrids either carrying or lacking Ph1 in speed breeding and control conditions, and observed no major differences in chromosome pairing and recombination in meiocytes at metaphase I (Supplementary Table 36). The chromosome behaviour suggests that both wheat and wheat–rye hybrids are cytologically stable under speed breeding conditions (Supplementary Fig. 5). In summary, all the above adult plant phenotypes could be recapitulated accurately and much faster than in the corresponding glasshouse conditions.

Fig. 3: Adult plant phenotypes in wheat and barley under speed breeding conditions.
figure 3

a, Loss of function of the awn suppressor B1 locus in T. aestivum cv. Paragon (mutant on left, wild type on right). b, Green Revolution Reduced height (Rht) dwarfing genes under speed breeding conditions. From left to right, T. aestivum cv. Maringá wild type, Maringá Rht-1, Maringá Rht-3. Scale bar = 100 cm. c, FHB progression in spikes of the resistant T. aestivum cv. Sumai 3 (right) and the susceptible cv. Timstein (left) at 7 and 10 days post inoculation (dpi). d, Two instances depicting the flowering time of the F6 hybrid (right in both panels) derived from T. aestivum cv. Paragon (left in both panels) and T. aestivum landrace W352 (centre in both panels). In the left panel, the parents flower while the F6 is just beginning to boot at 44 days; in the right panel, the F6 hybrid is shown with developed spikes at 67 days when the parents have moved into senescence. e, Reduced glaucousness of Eceriferum (Cer) mutants in H. vulgare cv. Bonus. WT, wild type.

Full size image

We further investigated the potential for using speed breeding in conjunction with genetic transformation. Seeds of barley (H. vulgare cv. Golden Promise) were sown and immature embryos harvested and transformed (Supplementary Fig. 6). The transformation efficiency of speed-grown and normal plants was comparable (Supplementary Table 37). Moreover, we observed that transformed barley explants could be grown under speed breeding conditions and viable seed obtained >6 weeks earlier compared to standard control conditions (Supplementary Table 38; Supplementary Fig. 7).

We investigated the ability to phenotype canola, grown under speed breeding conditions, for pod shattering resistance, a significant factor causing yield loss in the field. Using an established method which measures the energy absorbed by each pod when shattered by a pendulum15 (Supplementary Fig. 8), we tested five canola cultivars considered susceptible to shattering. All displayed varying degrees of pod strength comparable to measures obtained from field-grown pods (Supplementary Table 39). Due to the lack of shatter resistance in cultivars, new alleles from related Brassica species could be transferred to canola16. Our results suggest that speed breeding could accelerate this objective.

Speed breeding is likely to reduce generation time for other crop species, for example, sunflower (Helianthus annuus), pepper (Capsicum annuum), and radish (Raphanus sativus), which have been shown to respond well to extended photoperiod2. Speed breeding methods have already been successfully applied to accelerate breeding objectives for amaranth (Amaranthus spp.)17, peanut (Arachis hypogaea)18 and pea (P. sativum)19. In the latter study, the gibberellic acid biosynthesis inhibitor flurprimidol was applied to induce a compact growth habit, permitting an increased cultivation density. While the direct application of our speed breeding protocols to short-day species such as maize or rice are unlikely to be successful, there is probably room for optimization to achieve faster generation times in these species. For instance, other growth parameters could be tweaked to accelerate the generation time, such as optimizing photoperiod, temperatures, plant density and watering regime. In a breeding context, it should be noted that phenotypes studied under controlled or glasshouse conditions do not always correlate with field observations; in particular, complex traits such as yield and abiotic stress tolerance. Yet, phenotypic selection in early segregating generations of wheat (F2 and F3) has been successfully implemented for some desirable traits such as stripe rust resistance12 and grain dormancy20. Alternatively, speed breeding could be used to rapidly generate fixed populations through SSD, which in some species may be cheaper than generating double haploids, for subsequent field evaluation and selection, thus facilitating genetic gain and production of improved cultivars. For genetically well-defined traits, speed breeding could be used to rapidly introgress genes or haplotypes into elite lines using marker-assisted selection21.

Recent advances in genomic tools and resources22,23,24,25,26 and the decreasing cost of sequencing have enabled plant researchers to shift their focus from model to crop plants. Despite such advances, the slow generation times of many crop plants continue to impose a high entry barrier. We envisage that combining these tools and resources with speed breeding will provide a strong incentive for more plant scientists to perform research on crop plants directly, thus further accelerating crop improvement research. In a breeding context, rapid generation advance to homozygosity following crossing will facilitate genetic gain for key traits and allow more rapid production of improved cultivars by breeding programs.

Methods

Speed breeding I—Controlled-environment chamber speed breeding conditions

A Conviron BDW chamber (Conviron, Canada) was programmed to run a 22-hour photoperiod, with a temperature of 22 °C during the photoperiod, and 17 °C during the 2-hour dark period. Light and temperature were set to ramp up and down for 1 hour 30 minutes to mimic natural dawn and dusk conditions (as illustrated in Fig. 1). Humidity was set to 70%. Lighting was supplied by a mixture of white LED bars (Valoya; 6 units per 7.6 m2), far -red LED lamps (Valoya; 12 units per 7.6 m2) and ceramic metal hydrargyrum quartz iodide lamps (Valoya; 32 units per 7.6 m2). Light intensity was adjusted to 360–380 µmol m−2 s−1 (highest value after ramping) at bench height, where the pots were kept, and 490–500 µmol m−2 s−1 (highest value after ramping) at adult plant height (with reference to wheat, T. aestivum cv. Paragon). Light quality (spectral composition) is shown in Supplementary Fig. 9.

A timelapse video of T. aestivum cv. Paragon under speed breeding condition I (‘speed breeding’) and control glasshouse conditions (‘control conditions’) during the UK summertime with no supplementary light in the spring and summer of 2017 is given in Supplementary Video 1 and the accompanying plant height growth curve in Supplementary Fig. 10.

Sowing, harvesting and germination rate evaluation for speed breeding in a controlled-environment room chamber

Wheat, barley and Brachypodium seeds were imbibed on filter paper wetted with sterile water containing 0.5 ppm gibberellic acid, stratified at 4 °C for 3 days and then germinated at room temperature for 2 days before sowing in 1.33 l pots containing 900 ml of soil (one seed per pot). The soil used was the John Innes Centre (JIC) cereal mix, the composition of which is outlined in Supplementary Table 40. Seeds were harvested ~2.5–3 weeks post anthesis. The plants were not watered in the last week leading up to harvest in order to accelerate the grain ripening. The harvested spikes were kept in paper bags and dried at 28–30 °C for 3–5 days to reduce the moisture content. The grain was threshed and stored at room temperature. To measure germination rates, seeds were placed in Petri dishes lined with filter paper and wetted with sterile water. The seeds were stratified at 4 °C for 3 days and then placed at room temperature, with periodic rehydration of the filter paper lining to maintain moisture levels. Seeds were observed for germination at daily intervals for 5 days.

Pea seeds of the John Innes accession JI 2822 were scarified and sown into pots of approximately 260 ml volume with JIC Cereal Compost Mix (Supplementary Table 40). Pots were placed in a glasshouse with no supplementary light and a minimum temperature of 12 °C, or the Conviron chamber under speed breeding conditions, and moved around every 2–3 days in a rotating fashion to ensure uniformity of growth conditions. The number of days after sowing until the first flower opened, flowering node number, number of pods, plant height and seed number were recorded (Supplementary Table 10). At 6 weeks and 9 weeks, respectively, the plants in the cabinet and glasshouse were no longer watered. Mature, dry seeds were chipped and placed on moist filter paper for 5 days at room temperature in the dark to estimate percentage germination. The number of seeds where the radicle and shoot had not emerged were counted as not germinated.

Wild-type M. truncatula (genotype Jemalong A17) seeds were scarified with glasspaper, surface-sterilized for 3 minutes in 10% sodium hypochlorite and washed five times with distilled water. Seeds were left to imbibe for 2 hours before being transferred to agar plates for 72 hours at 4 °C. Seedlings were sown in JIC Cereal Compost Mix in 24-cell trays (each cell containing 80 ml of soil) and transferred to 1 l pots after 14 days. The number of days after sowing for the first flower to appear was recorded. Watering stopped following maturation of ~90% of the pods. Pods were harvested 14 days later and the resulting seeds subjected to germination tests similar to pea.

Speed breeding II—Glasshouse speed breeding conditions

A temperature-controlled glasshouse fitted with high-pressure sodium vapour lamps (Philips SON-T 400 W E E40 in Sylvan High Bay housing with glass diffuser) was programmed to a 17/22 °C temperature regime with a 12-hour turnover and 22-hour photoperiod (Supplementary Fig. 11). The 2-hour period without lamps operating and 17 °C cycle occurred during the night. Light intensity was 440–650 µmol m−2 s−1 at adult plant height (approximately 45 cm above bench height). Light and temperature changes did not include a ramping up/down procedure. Light quality (spectral composition) is shown in Supplementary Fig. 12.

Sowing, harvesting and germination rate evaluation for speed breeding in a light-supplemented glasshouse

Wheat, barley, canola and chickpea seeds were imbibed by placing on water-moistened filter paper in agar plates overnight at room temperature. The imbibed seeds were chilled at 4 °C for 4 days to break any dormancy and support uniform germination. Seeds were then left at room temperature for 5 days. All seedlings were sown singly into 1.4 l pots. Soil media consisted of the CGS20 compost mix (Supplementary Table 41) with the addition of Scotts Osmocote Plus trace elements (2 g per l soil) and a final pH of 5.5–6.5. Pots were placed in pot racks in complete randomized block designs and hand-watered daily. Plants were supplemented with a weekly foliar spray of calcium nitrate diluted in filtered water (1 g per l) to mitigate any calcium deficiency, which is common with such rapid growth27.

Anthesis date was recorded for wheat, canola and chickpea, while awn peep was recorded for barley. One spike was harvested from wheat and barley at 2 and 4 weeks post anthesis. Three pods per plant of canola and chickpea were harvested 6 weeks post anthesis. All harvested seeds were placed in paper bags and immediately dried in an air-forced oven for 5 days at 35 °C, threshed by hand, then weighed. Germination tests were carried out as per the presowing treatments described above. Percentage germination was calculated following 5 days at room temperature. At approximately 4–6 weeks following anthesis, water supply was reduced to every second day for 1 week, then twice per week for 1 week, followed by complete withholding of water. When plants were fully senesced, all spikes or pods were harvested, counted, dried, threshed and weighed to determine yield. Grain number per spike of wheat and barley plants was counted following threshing of each individual spike.

One cultivar each of wheat (T. aestivum cv. Westonia) and barley (H. vulgare cv. Commander) was sown in a 100-cell tray (length, 350 mm; width, 290 mm; height, 45 mm; each cell approximately 18 ml) to demonstrate the potential of high-density planting. Three spikes were harvested at 2 and 4 weeks post anthesis and percentage germination determined, as above. The watering regime was also as above. Following complete senescence, all grain was harvested, dried, threshed and weighed to determine yield.

As a control, an identical protocol was carried out on the same species/cultivars in a similar glasshouse maintained at the same temperature settings but with no supplemental lighting.

Speed breeding III—Homemade growth room design for low-cost speed breeding

A room of 3 m × 3 m × 3 m with insulated sandwich panelling fitted with seven LB-8 LED light boxes (one light box per 0.65 m2) from Grow Candy (www.growcandy.com) and a 1.5 horsepower inverter split system domestic air conditioner was set up as a low-cost alternative to the Conviron BDW chamber. The light spectrum details are outlined in Supplementary Fig. 13. The light quantity of photosynthetically active radiation (PAR) at bench height ranged from 210–260 µmol m−2 s−1 and at 50 cm above the pot from 340–590 µmol m−2 s−1. The lights were situated at a height of 140 cm above the bench. The room can accommodate 90 pots of 20.3 cm diameter and 5 l volume. Automatic watering was achieved with the Hunter 10 Station Irrigation Controller, with one solenoid per room and a 13 mm main line with spike drippers (one per 20.3 cm pot). The humidity conditions were ambient.

The lighting was set to run a 12-hour photoperiod (12 hours of darkness) for 4 weeks and then increased to an 18-hour photoperiod (6 hours of darkness). The lights did not ramp up and down during the switch between light and dark periods in the 24-hour cycle. The air-conditioner was set to run at 18 °C in darkness and 21 °C when the LED lights were on, with fluctuation being no more than ± 1 °C.

This system was used for speed breeding of wheat (T. aestivum cvs Morocco and AvocetR), barley (H. vulgare cvs Gus and Baudin), oat (Avena sativa cv. Swan) and triticale (Triticosecale cvs Jackie and Coorong).

The speed breeding experiments I and II used artificial light sources with enriched PAR in the blue, red and far-red part of the spectrum (Supplementary Figs. 9 and 13). Some manufacturers now produce LED lights that can be programmed to optimize PAR and customize the wavelength and intensity to suit different growth stages and plant species (https://www.heliospectra.com/sites/default/files/botanical_garden_gothenburg_-_case_study.pdf). We predict this will significantly contribute to further increase plant growth performance in the academic and commercial research sector for a large range of species.

Adult plant phenotyping protocols

Canola pod shattering resistance phenotyping

Five canola cultivars were selected for evaluation (cvs Skipton, CB Argyle, ATR Cobbler, ATR Beacon and Bravo TT), where ten mature pods representative of normal development were harvested from each plant grown under speed breeding II conditions. This resulted in 30 pods per genotype (three replicate plants per genotype). Pods from each plant were placed together in 50 ml lidded plastic Falcon tubes with silica beads to absorb any moisture. These were then phenotyped using the pendulum pod shatter protocol15 at the NSW Department of Primary Industries, Wagga Wagga Agricultural Institute (WWAI), Wagga Wagga, Australia. The rupture energy measures were adjusted for variation in pod length to calculate rupture energy per length squared, as per28. The five canola cultivars were also grown in field row plots at the experimental farm of WWAI in two replicates16 and evaluated for shattering resistance using the same technique, where ten fully mature pods were sampled per plot.

Wheat crossing and evaluation of crossing efficiency

Newly emerged spikes were emasculated to remove all immature anthers. The emasculated spikes were bagged for up to 3 days to allow for maturation of the stigma and then pollinated by anthers from a separately selected parent. The spikes were checked for seed setting 3–5 days post pollination. Crossing efficiency was calculated as the percentage of emasculated ovaries that successfully set seed.

Wheat flowering time

For measurement of flowering time of the wheat cultivars Paragon, Watkins landrace W35229 and the late flowering Paragon x W352 F6 recombinant inbred line, the number of days taken to reach heading was recorded for each replicate of each line. At the same time, the leaves on the main tiller were counted (starting from the three-leaf stage) until the time of heading.

Wheat seed count

Seeds were manually counted in each spike. Images were obtained using a Nikon DSC D90 camera (HFX-DX, Melville, NY) and processed using ViewNX 2 software, produced by Nikon (Nikon, Surrey, UK) (Supplementary Fig. 14). Details are given in the Supplementary Information.

Wheat and barley single seed weight

Three replicates of ten seeds were weighed for each replicate plant within each genotype and averaged. This was then divided by ten to obtain an estimate of single grain weight for each plant. This was averaged across the three genotype replicates.

FHB infections

The test undertaken was for type II resistance, which is resistance to spread from floret to floret within the head. A suspension of 1 × 106 conidiaspores per ml of F. graminearum, which had been cultured in a mungbean liquid media, was used for point inoculations30. The isolate was a mix of two aggressive deoxynivalenol-producing F. graminearum UK isolates (K1-4/K1-5), obtained from the JIC’s Facultative Pathogen Collection. At least two spikes on each of three plants of the resistant wheat (T. aestivum cv. Sumai 3) and three plants of the susceptible wheat (T. aestivum cv. Timstein) were inoculated.

Transformation of barley

Immature embryos of the barley (H. vulgare cv. Golden Promise) were inoculated with Agrobacterium strain AGL1 and transformed plants were recovered following the protocol of Harwood31. Constructs from the pBRACT series32 containing selection cassettes conferring resistance to the antibiotic hygromycin were introduced.

Wheat meiosis studies

The anthers used for this study came from hexaploid wheat (T. aestivum cv. Chinese Spring) carrying the Ph1 locus and crosses between rye (Secale cereale cv. Petkus) and hexaploid wheat (T. aestivum cv. Chinese Spring) either carrying or lacking the Ph1 locus (ph1b deletion)33.

Seeds were stratified on wet filter paper in the dark for 5 days at 4 °C, followed by a period of germination for 24 hours at 25 °C. The seedlings were vernalized for 3 weeks at 5 °C and then transferred to different controlled-environment rooms until meiosis. Three seedlings from each genotype were transferred to the Conviron speed breeding chamber and an additional three were transferred to a glasshouse with no supplementary lighting or heating, as a control. From each plant, one spike was collected for the determination of meiotic stability in pollen-mother cells. For meiosis studies, suitable young spikes were excised and fixed in ethanol/acetic acid (3:1). The samples were kept at room temperature, for at least 1 week, until slide preparation. Each floret has three synchronous anthers, and so one anther per floret was squashed in 45% acetic acid in water and assigned at metaphase I in meiosis by observation under a Leica DM2000 microscope (Leica Microsystems Ltd., Heerbrug, Germany; http://www.leica-microsystems.com). The two remaining anthers were stained following the Feulgen procedure34. The present observations were limited to this stage. Images were collected using the Leica DM2000 microscope equipped with a Leica DFC450 camera (Leica Microsystems) and processed using LAS V4.4 system software (version 4.4, Leica Microsystems). Four parameters of meiotic stability were studied, including univalents, bivalents, multivalents and crossovers. The number of cells observed in each plant in the two different photoperiods was 80. Further details are given in the Supplementary Information.

Statistical analyses were performed using STATISTIX 10.0 software (Analytical Software, Tallahassee, FL, US). The analysis of variance was based on randomised blocks. In wheat–rye hybrids lacking the Ph1 locus, tangent transformation was applied to univalents to meet the requirement of homogeneity of variances. Means were separated using the least significant difference test with a probability level of 0.05.

Successive generations under speed breeding I and II

In order to demonstrate the health and normal development of successive generations of wheat and barley plants grown under speed breeding, a second generation was grown from seeds obtained through both speed breeding and control (glasshouse grown) plants.

Wheat (T. aestivum cv. Paragon) seed procured from plants grown under speed breeding I and harvested immature (2 weeks post anthesis) and seed harvested at maturity under UK summertime glasshouse conditions were grown under speed breeding I conditions (Supplementary Fig. 2, Supplementary Table 27).

To determine the effect on subsequent generations for speed breeding II conditions, a second generation of wheat (T. aestivum cv. Suntop) and barley (H. vulgare cv. NRB090257) was grown under these conditions using seed harvested at maturity from plants grown under speed breeding II and glasshouse conditions with no supplementary lighting (Supplementary Fig. 3, Supplementary Tables 28 and 29).

Data availability

The data that support the findings of this study are presented in the supplementary materials and methods and/or available from the corresponding authors upon request.
