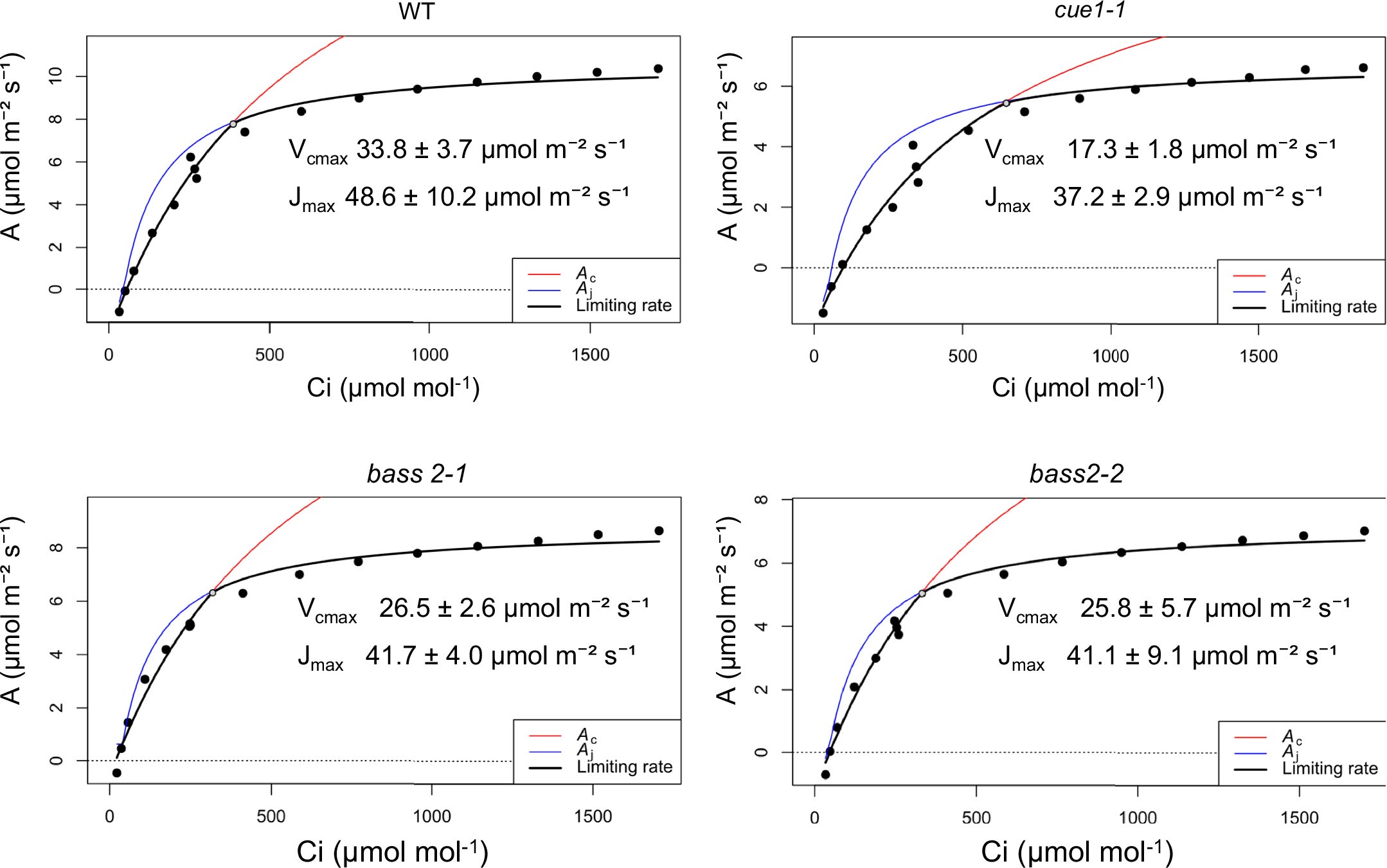

Extended Data Fig. 10: CO2 assimilation (A) and intercellular CO2 concentration (Ci) in Arabidopsis wild-type (WT), bass2 and cue1 mutant plants.
From: Rubisco supplies pyruvate for the 2-C-methyl-d-erythritol-4-phosphate pathway
A/Ci curves were fit based on the Farquhar-von Caemmerer-Berry (FvCB) model of photosynthesis using the plantecophys package on R46. Estimates of Vcmax (maximum Rubisco carboxylation rate) and Jmax (the maximum rate of electron transport) are presented as mean ± SD from individual fit (n = 3-4 plants). Ac represents photosynthesis limited by rubisco, while Aj indicates limitation due to RuBP-regeneration.
