Photosynthesis powers the metabolism of photoautotrophic organisms by converting solar energy into biologically useful forms of energy. In higher plants, photosynthesis is accomplished in the thylakoid membranes of chloroplasts by electron transport chains composed of two large membrane protein complexes—photosystems I and II—that are functionally linked by cytochrome b6f (cytb6f)1,2,3. By catalyzing the transfer of electrons from lipid-soluble plastoquinone (PQ) to water-soluble plastocyanin (PC), cytb6f transfers electrons from photosystem II to photosystem I. This results in proton transfer across the membrane and contributes to the proton-motive force required for the production of adenosine triphosphate4. Cytb6f is also involved in regulatory processes that secure photosynthetic efficiency5,6,7,8. Cytb6f is, thus, a crucial enzyme for photosynthesis. Yet, some of the most fundamental aspects of its mechanism remain unclear.

Cytb6f operates according to a modified ‘Q-cycle’ that was originally developed for cytochrome bc1 (cytbc1)4,9. Cytbc1 is related to cytb6f and performs a similar function in the respiratory or photosynthetic electron transport chains. By analogy to cytbc1, the cycle in cytb6f is based on the joint operation of two catalytic sites, Qp and Qn. These sites are located on opposite sides of the membrane and are responsible for plastoquinol (PQH2) oxidation (at the Qp site, on the luminal side of the membrane) and PQ reduction (at the Qn site, on the stromal side)10. These sites are connected functionally by redox cofactors organized in two chains: a ‘low-potential’ chain comprising b-type haems bp and bn and c-type haem cn (also referred to as haem ci), and a ‘high-potential’ chain comprising an iron–sulfur cluster [2Fe2S] and a c-type haem f11. The Qp acts as a branch point for both chains, where it is linked to Qn in the low-potential chain and to PC in the high-potential chain (Fig. 1a). The oxidation of PQH2 at Qp separates the routes for two electrons deriving from this reaction. One electron is transferred to PC via the [2Fe2S] and haem f, and the other is transferred via haem bp and the pair of haems bn/cn to ultimately reduce quinone at Qn. As a consequence of the bifurcation reaction, the low-potential chain delivers one electron to Qn at a time. Thus, the oxidation of two PQH2 at Qp leads to reduction of one PQ at Qn, which results in a net oxidation of PQH2 (refs. 3,6).

Fig. 1: An overview of the structure of cytb6f, cofactor architecture and sample preparation.
figure 1

a, Arrangement of redox cofactor chains in cytb6f and a schematic representation of PQH2 oxidation and PQ reduction at Qp and Qn, respectively. Green-filled boxes represent two monomers of cytb6f. PC stands for plastocyanin. b, Two procedures for cryo-EM grid preparation, which yielded 1.9 Å and 2.2 Å cryo-EM maps for DPQ-incubated cytb6f and cytb6f during enzymatic turnover, respectively. c, Cryo-EM maps at 1.9 Å resolution of DPQ-incubated cytb6f with colour-coded subunits (left) and coloured according to the calculated local resolution (in Å; right). d, Close-up view of selected 1.9 Å map regions with remarkable resolution of amino acid side chains and cofactors. The colours of the frames correspond to regions marked by squares in c.

Full size image

Various structures of cytbc1 and cytb6f show that the positions of cofactors are consistent with a functional Q-cycle in both complexes12,13,14,15,16,17,18,19,20,21,22. Nevertheless, intriguing differences between cytbc1 and cytb6f also indicate functional differences. For instance, the cytb6f complex contains additional cofactors—chlorophyll a, 9-cis β-carotene and haem cn—whose functions are unclear. Haem cn is highly unusual. It is a high-spin haem with a water molecule as the only axial ligand to the haem iron. It is covalently attached to a single cysteine residue and positioned in proximity to haem bn (refs. 15,16,20). Moreover, it occupies the position where ubiquinone binding occurs in cytbc1. Haem cn thus appears to be an extension of the low-potential chain (Fig. 1a), but the mechanistic consequences of this arrangement remain highly speculative. Inhibitors of Qn have been shown to bind as axial ligands to haem cn, and it has been postulated that the substrate binds in a similar way17,18,23. However, the reported positions of PQ in the region of Qn are inconsistent with the overall model and, thus, have been considered precatalytic states22,24.

Currently available structures of cytb6f show a large distance between Qp and haem f, similar to the large distance between Qp and haem c1 (equivalent of haem f) observed in cytbc1. This implies that large-scale movement of the domain harbouring the iron–sulfur cluster (ISP-HD) between positions close to Qp and haem f/c1 must occur during the catalytic cycle25. Indeed, such movement is well documented for cytbc1, not only by numerous spectroscopic and kinetic analyses26,27,28,29 but also by structural data showing ISP-HD in various positions30. In the case of cytb6f, spectroscopic data suggest a similar movement of ISP-HD31,32,33; however, distinct positions of ISP-HD have not yet been structurally characterized.

To simultaneously address these open questions, we determined high-resolution, single-particle cryogenic electron microscopy (cryo-EM) structures of spinach cytb6f in various states (Fig. 1b). We show that decylplastoquinone (DPQ), an analogue of the natural PQ substrate, adopts an unprecedented position and orientation in the Qn site during catalysis. The observed coordination is fundamentally different from the known position of Qn site-specific inhibitors17,18,23. Our structures also reveal coordinated water channels that connect the exterior of the complex directly with Qn. Furthermore, we show that ISP-HD adopts distinct positions, which illustrate its dynamic movement between cyt b6 and cyt f. These findings provide fundamental molecular insights into the interactions at the catalytic sites of cytb6f that inspire new concepts for explaining substrate exchange in cytb6f and cytbc1 complexes.

Results

Cryo-EM structures of cytb 6 f with DPQ and during turnover

Purified and detergent-solubilized cytb6f was equilibrated with an excess of DPQ or exposed to substrates, reduced DPQ (DPQH2) and oxidized PC and vitrified during catalytic turnover. These samples were used for single-particle cryo-EM analyses and resulted in two high-resolution reconstructions. In detail, we determined the structure of cytb6f supplemented with DPQ at an overall resolution of 1.9 Å and the enzyme during catalysis at an overall resolution of 2.2 Å (Fig. 1b, Table 1 and Extended Data Fig. 1). Both structures show cytb6f as a homodimeric complex with a subunit composition and spatial arrangement of cofactors consistent with previous reports15,21,22 (Fig. 1c and Extended Data Fig. 1). The recently identified subunit thylakoid soluble phosphoprotein 9 (TSP9)21 is present in both structures, indicating that it is stably associated throughout the catalytic cycle. The quality of the cryo-EM maps obtained allowed us to unambiguously identify amino acid side chains, ligands and cofactors (Fig. 1d). Furthermore, we observed density peaks in various regions of cytb6f that likely correspond to coordinated water molecules, which we would expect to observe at 1.9 Å and 2.2 Å resolution. We assigned, validated and manually curated the positions of 329 water molecules in the 1.9 Å structure and 214 in the 2.2 Å structure.

Table 1 Cryo-EM data collection, refinement and validation statistics
Full size table

DPQ does not contact the haem iron when bound at Qn

The 2.2 Å resolution structure of cytb6f vitrified during catalysis revealed the position and orientation of a quinone bound in Qn (Fig. 2a,b). Note that we use the term ‘quinone’ to indicate a quinone group, not its redox state, which cannot be inferred from the cryo-EM maps. In detail, the quinone head is inclined at an angle of 37° relative to the plane of haem cn, with the C4-side of the quinone ring positioned close to the haem plane (Fig. 2b,c). A water molecule (wat1) is coordinated between the carbonyl oxygen at the C4-side (O4) of quinone and the conserved Asp35 residue of subunit IV (D35sIV; Fig. 2b). D35sIV and wat1 are located inside a hydrophobic pocket formed by F40sIV, L36sIV, A31sIV and Val26 of the cytochrome b6 subunit (V26b6) near haem cn (Extended Data Fig. 2a). On the opposite side of the quinone group, the propionate of haem cn and R207b6 enclose the carbonyl oxygen (O1) of DPQ (Fig. 2b and Extended Data Fig. 2b). O1 is close enough to R207b6 and the proximal propionate to hydrogen bond with them. The distal propionate points towards a hydrophilic tunnel comprising K24b6, N25sIV and the backbone carbonyls of R207b6, K208b6 and Q209b6 (Extended Data Fig. 2b). The position of wat1 is remarkable because it suggests that this water molecule might be directly engaged in PQ reduction.

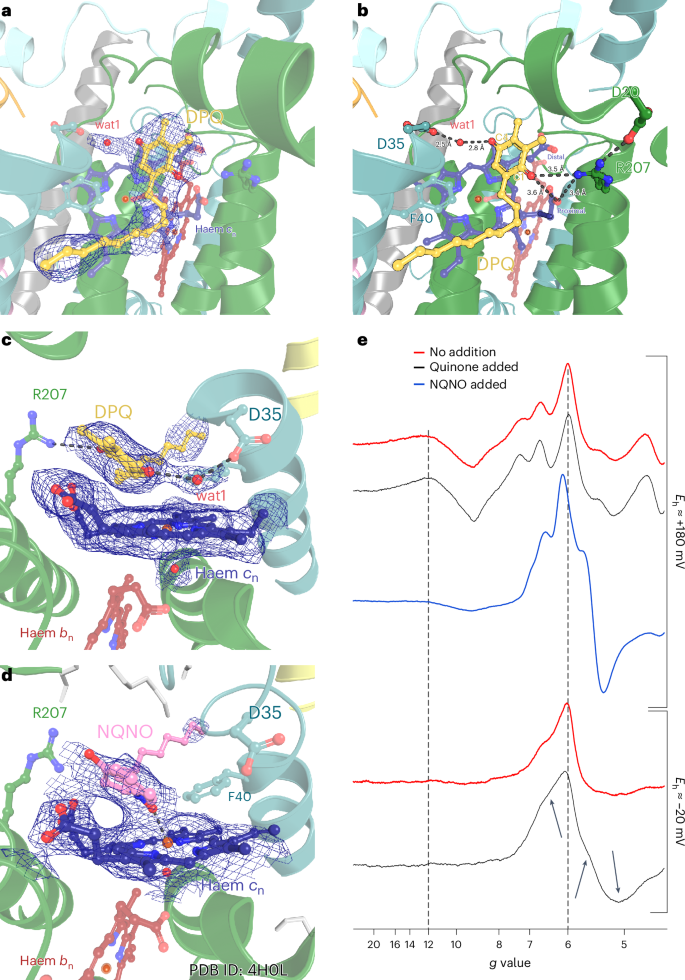

Fig. 2: Qn of cytb6f occupied with DPQ molecule or inhibitor, NQNO.
figure 2

a, Quinone molecule (DPQ in all figures refers to a DPQ molecule, not its redox state) remodelled in the Qn site in the 2.2 Å cryo-EM map (PDB ID: 9ES8). b, Hydrogen-bond interactions between quinone, wat1, haem cn and selected residues. Cyt b6 (green), subIV (light teal) and haem bn (red) are in the background. c, Close-up side view of Qn with quinone and haem cn built into the cryo-EM map shown with isomesh representation. d, Close-up view of Qn occupied by the NQNO inhibitor bound to haem cn. The model and electron density map (that is, x-ray crystallographic 2Fo–Fc map) were taken from PDB ID: 4H0L entry17. e, Low-field regions of the EPR spectra of cytb6f poised at Eh of +180 mV or −20 mV, with (black) and without (red) addition of quinone. Black arrows indicate the regions with the largest observed changes, related to an increase in the rhombicity of the haem cn signal in the sample with quinone added. For comparison, the blue spectrum shows the relatively larger effect on the rhombicity of the haem cn signal imposed by interaction with NQNO bound at Qn.

Full size image

The orientation of the quinone ring in Qn clearly differs from those of three Qn inhibitors described previously: 2-nonyl-4-hydroxyquinoline N-oxide (NQNO), tridecyl-stigmatellin and stigmatellin A. In currently known structures of cytb6f, these inhibitors coordinate the iron atom of haem cn directly17,18,23 (Fig. 2d and Extended Data Fig. 3). By analogy to these inhibitors, PQ was thought to bind to the haem cn in the same way. Our structure, however, clearly shows that although the quinone ring is in proximity to the haem, there are no direct contacts between the quinone and the haem iron (Fig. 2c). In fact, the phenyl group of F40sIV covers a large part of the haem plane, severely restricting access for the potential axial ligand15,34. We conclude that the inhibitors must push the F40sIV ring away upon binding to occupy the Qn niche and replace wat1.

The proximity of the quinone ring to haem cn was further substantiated by the sensitivity of the electron paramagnetic resonance (EPR) spectrum of this haem to the redox state of quinone (Fig. 2e), observed as changes in transitions at different g values (the g factor, abbreviated as g, characterizes magnetic moment and angular momentum of molecular system with unpaired electrons). At a high external redox potential (Eh = +180 mV), the spectrum showed a g = 12 transition that originates from the spin–spin exchange between the oxidized haems cn and bn (ref. 35) and the g = 6 signal, which can be ascribed to a fraction of nearly axial high-spin haem cn that is not spin-coupled to haem bn (ref. 36). This spectrum was insensitive to the presence of externally added DPQ (at this Eh, quinone remains oxidized). At a lower Eh (−20 mV), the signal at g = 12 disappeared37, but the remaining transitions around g = 6 were clearly sensitive to the presence of DPQH2 in the sample (at this Eh, the added DPQ becomes fully reduced). Changes in the shape of the lines around g = 6 suggest a slight increase in the rhombicity of the zero-field splitting36. Typically, an increase in rhombicity is recognized by splitting of the g = 6 line into two lines. In our case, the rhombicity is not large, and the split is small and results in overlapping transitions (arrows in Fig. 2e). Such spectral change is possibly a consequence of lowering the symmetry of the ligand field around the iron ion of haem cn, resulting from the presence of the quinone molecule nearby. However, we cannot conclude on the specific redox state of that molecule (that is, whether it is DPQH2 or the semiquinone form) involved in these interactions.

NQNO, which binds as a ligand to the iron of haem cn, induced different changes in the shape of the EPR spectrum (Fig. 2e, blue). Consistent with earlier observations36, even at high Eh, a dramatic increase in the rhombicity of the signal was accompanied by loss of the signal at g = 12. Thus, the EPR spectra not only confirm the proximity of the quinone or inhibitor to haem cn but also corroborate their different binding modes.

Proton channels and water molecules link Qn to the exterior

The 4 Å distance between haem cn and the quinone ring in the haem ligand niche confirms their readiness for the catalytically relevant electron transfer. Furthermore, hydrogen bonding indicates that the quinone is also ready to accept protons at O1 and O4, which are required for the completion of catalytic reduction of PQ (Figs. 2b and 3a). Wat1 is positioned to act as the primary proton donor for O4. Wat1 might accept a proton directly from D35sIV, which is surrounded by several polar residues (R26PetN, E29sIV, K272f (transmembrane helix of the cytochrome f subunit)), and several aligned water molecules extending towards the aqueous phase (Fig. 3a–d, red dots). On the other side of the ring, R207b6 is the most likely primary proton donor for O1; however, direct protonation by the proximal propionate of haem also appears possible. R207b6 might accept protons from D20b6, which is in direct contact with the protein exterior. Thus, these two residues might form an anhydrous proton channel towards O1, as proposed earlier17. R207b6 might also accept a proton from the proximal propionate of haem (Fig. 2b).

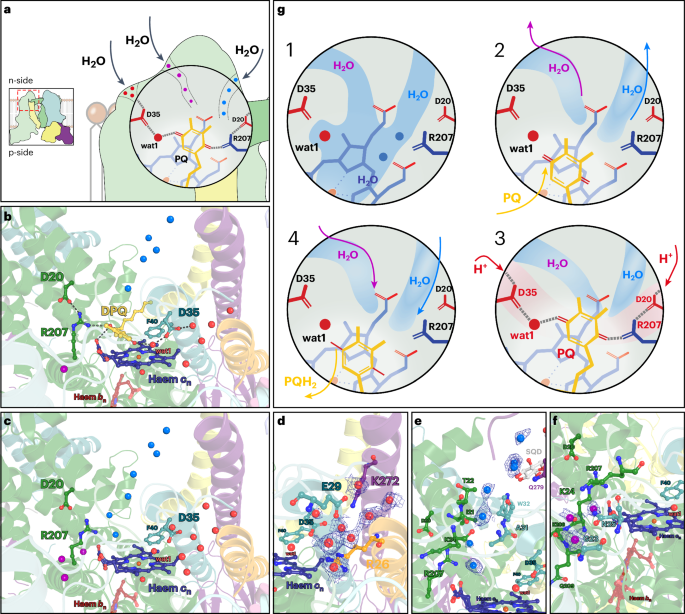

Fig. 3: Water channels towards the cavity of Qn.
figure 3

a, Schematic representation of water chains connecting the Qn cavity with the aqueous phase. The stromal and lumenal side of the thylakoid membrane are referred to as n-side and p-side, respectively. Red dots mark water molecules present in a funnel-like pocket in the cytb6f surface, in contact with wat1 through D35sIV. Purple dots represent water molecules reaching the distal propionate of haem cn. Blue dots represent a water molecule wire connected to R207b6. b, The 2.2 Å structure of Qn (PDB ID: 9ES8) with quinone bound, showing water molecules colour-coded the same as in a. c, The 1.9 Å structure of Qn (PDB ID: 9ES7) showing water molecules colour-coded the same as in a. d–f, Close-up view of each water chain (red (d), blue (e) and purple (f)) taken from the 1.9 Å structure with selected amino acids and isomesh representation of the cryo-EM map around water molecules. g, The proposed quinone/water exchange mechanism as a molecular basis for the efficiency of catalytic turnover. In this mechanism, the arrival or departure of PQ from Qn is synchronized with the movement of water molecules in and out of Qn (see details in the text). Wat1 and the two water molecules seen in the 1.9 Å structure that clash with quinone in the 2.2 Å structures are marked as red and blue dots, respectively.

Full size image

In addition to the proton channels, our structures reveal channels filled with water molecules that line up, linking the Qn niche with the aqueous phase outside the membrane (Fig. 3). In one channel, water molecules (Fig. 3, blue dots) are located in the crevice between subunit IV and cytb6. They interact with the backbone atoms of A31sIV, W32sIV, T22b6, K24b6 and I21b6 (Fig. 3b,c,e). Two water molecules are positioned within hydrogen-bonding distance to the side chain of R207b6 (Fig. 3c). In another channel, the water molecules (Fig. 3, magenta dots) interact with the backbone atoms of G23sIV, Q209b6, R207b6 and the side chains of N25sIV and K24b6, reaching the distal propionate of haem cn (Fig. 3b,c,f). We note that the density map of the region of the Qn cavity in the 1.9 Å structure was not completely empty and may have been partially occupied by DPQ or endogenous quinone molecules. Nevertheless, two water molecules that are hydrogen-bonded by R207b6 can be clearly identified. When quinone occupies the catalytically relevant position (as seen in the 2.2 Å structure), these water molecules would clash with the quinone ring and, thus, must be displaced during the full accommodation of quinone in the site.

We propose a mechanism in which the water channels allow water molecules to flow into and out of the Qn cavity during catalysis (Fig. 3g). Quantum mechanical calculations indicate that in the absence of substrate (Fig. 3g, state 1), the Qn cavity can be occupied by at least eight water molecules (including wat1), which shield the charged residues—D20b6, K24b6, R207b6, D35sIV and R26PetN (Extended Data Fig. 4)—thereby weakening the interactions between them. This substantially reduces the binding energy of PQ, which, upon entering Qn, pushes the water molecules out of the cavity through the channels in a piston-like manner (Fig. 3g, state 2). The only remaining water molecule is wat1, which allows the quinone ring to adopt an orientation that allows electron and proton transfer to O1 and O4 (Fig. 3g, state 3). When reduction of PQ is complete, PQH2 leaves Qn and exposes charged residues, attracting water molecules into Qn through the channels (Fig. 3g, state 4). The Qn site, filled with water (state 1), is then free to accommodate the next PQ molecule. In this mechanism, synchronized movements of water and PQ/PQH2 facilitate exchange of the substrate/product and thus enable high efficiency of catalytic turnover.

It has been observed that the redox midpoint potential of haem cn shows a strong dependence of −60 mV per pH unit38, which implicates a coupled protonation event. This is not typical for haems in a protein environment. The enhanced exposure of haem cn to water molecules, which can fill the quinone-binding cavity through the water channels, might contribute to the increased pH sensitivity of the redox potential of this haem. In addition, the biphasic titrations of this haem in the presence of NQNO implicate that the occupancy of the Qn site is sensitive to the redox state of the enzyme38. The differences in the density maps of this region in our two samples (1.9 Å and 2.2 Å structure) are in line with these observations. Given that the redox state of haem cn has also been shown to be sensitive to the membrane potential39, the influence of membrane potential on occupancy of the Qn site is to be considered. Haem cn could play a role of the redox sensor to accommodate the catalytic reactions at the Qn site to the dynamically changing redox state of the cells, but such scenarios require further experimental testing.

The proton transfer paths towards O1 and O4 of DPQ described here confirm earlier predictions from analyses of the cytb6f structures with inhibitors bound at Qn (ref. 17). Moreover, our work adds structural details essential for mechanistic considerations. First, wat1 is the primary proton donor for PQ, and it bridges between D35sIV and O1 to facilitate proton transfer. Second, the identified water channels and water-mediated networks of hydrogen bonds implicate a water–PQ exchange mechanism at Qn.

The position of DPQ in our structure differs from the positions described earlier for PQ in cytb6f of plants22 and cyanobacteria24. In those structures, the angles between the PQ ring and the haem cn plane differed from the angles in our structure. Moreover, the PQ ring pointed away from the haem ligand niche, closer to the side of the haem plane and closer to the inter-monomer cavity (Extended Data Fig. 5). Furthermore, in those orientations, PQ was unable to interact with protonable groups in a way that would allow both O1 and O4 to form hydrogen bonds at the same time. As our structure indicates, to achieve such an orientation, the PQ ring must enter the haem cn ligand niche as deeply as the space allows. Incidentally, the PQ ring, in such a position, is relatively close to the protein surface and the cytb6f-bound part of the TSP9 protein for potential interactions with redox partners that are postulated to deliver electrons to Qn from the protein exterior as part of the cyclic electron flow in photosynthesis. The positions of PQ in Qn reported previously might still be relevant to the states during the arrival or departure of PQ to or from the catalytic site.

Interestingly, the TSP9 fragment bound to cytb6f appears to cover the salt bridge formed between the carboxylate group of the C-terminus of cyt b6 and R125sIV. This hinders the accessibility of R125sIV for interaction with a specific kinase involved in state transitions, as part of the regulatory function of cytb6f (refs. 7,40). Furthermore, the carboxyl group of E50TSP9 forms another salt bridge with R125sIV, which additionally stabilizes this conformation (Extended Data Fig. 6). How R125sIV becomes exposed to interact with the kinase remains to be elucidated.

ISP-HD adopts several positions between Qp and haem f

On the other side of the membrane from Qn, the other catalytic site in cytb6f, Qp, oxidizes PQH2 to PQ. For this region, focused three-dimensional (3D) classifications of our cryo-EM datasets identified four distinct classes, representing the most populated states of cytb6f present in the samples (Fig. 4a). These classes correspond to states in which ISP-HD occupies either the b-position (ISP-HD close to cyt b6 and the Qp site), the f-position (ISP-HD close to cyt f, with [2Fe2S] located close to haem f) or an intermediate position. An additional class corresponding to ISP-HD in an intermediate position with PC bound near cyt f was observed. Binding occurs in the same region as previously described21. The presence of these different states in the same dataset confirms the dynamic behaviour of ISP-HD and provides direct structural evidence for its movement, which is postulated to be necessary for catalysis. The b-position seems to reflect the state where electron transfer between 2Fe2S and PQ at the Qp site takes place, and the f-position the state where electron transfer between the [2Fe2S] and haem f takes place (Fig. 4 and Extended Data Fig. 7).

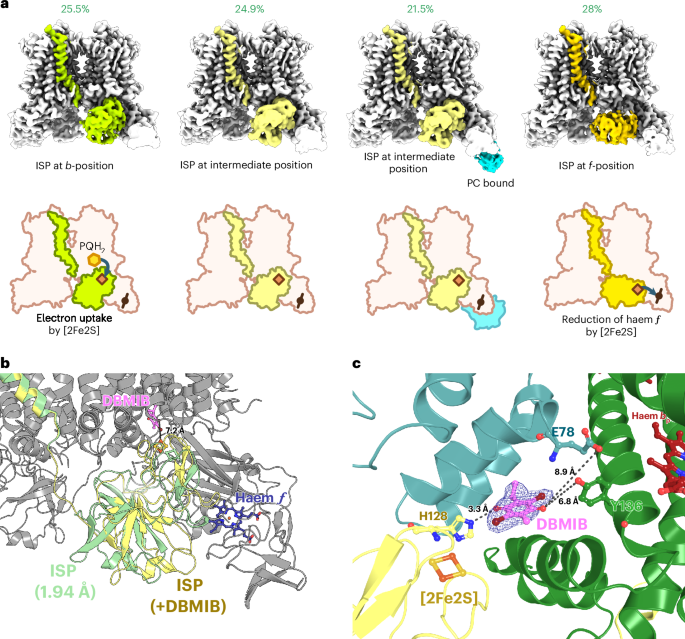

Fig. 4: Heterogeneity of ISP-HD positions and binding of inhibitor DBMIB at Qp.
figure 4

a, Three-dimensional classification of cytb6f particles trapped during catalysis with different ISP-HD and PC positions with percentage results. Top: cryo-EM maps with colour-marked ISP subunit and PC. Bottom: schematic representation of ISP-HD and PC positions in each subgroup of particles. b, ISP-HD position in the cytb6f structure with bound DBMIB (yellow; 2.3 Å; PDB ID: 9ES9) compared with the ISP-HD position from the 1.9 Å structure (green; PDB ID: 9ES7). c, Close-up view of Qp occupied by DBMIB. DBMIB is within hydrogen-bond distance of the Nε atom of the H128 side chain, which also coordinates the 2Fe2S cluster via Nδ.

Full size image

In spectroscopic studies, the cytb6f inhibitor 2,5-dibromo-3-methyl-6-isopropylbenzoquinone (DBMIB) was found to affect the position of ISP-HD32,41,42; therefore, we used it as a probe to further investigate ISP-HD movement. We determined the structure of DBMIB-inhibited cytb6f at 2.2 Å resolution. In the presence of the inhibitor, only one state of ISP-HD was seen in the dataset. Remarkably, in this structure, ISP-HD was even closer to Qp (Fig. 4b,c). The DBMIB molecule was clearly visible in our reconstruction. A hydrogen bond formed between the carbonyl group of the inhibitor and the Nε atom of H128ISP, which coordinates the 2Fe2S cluster. Y136b6 adopts two conformations (Extended Data Fig. 8a,b), one of which stabilizes DBMIB by forming a second hydrogen bond. In contrast to a previous report43, these data clearly reveal the position of DBMIB in the active site of cytb6f. Consistent with the inhibitory effect of this compound, its influence on the EPR spectrum of the [2Fe2S] cluster and observations based on EPR analysis, DBMIB traps ISP-HD at Qp in the b-position32,41,44. Whether the extremely close position of ISP-HD in complex with DBMIB is a catalytically relevant position remains to be elucidated.

In the DBMIB-bound structure, unlike in other available structures, the first seven amino acids at the N-terminus, preceding the α-helical transmembrane anchor of ISP-HD, become structured (Extended Data Fig. 8c,d). The N-terminus bends towards the protein surface and interacts hydrophobically with cyt f. This change in position of this region might be relevant to cytb6f -mediated redox sensing and signal transduction42,45,46.

In all observed states, the ‘neck’ region that connects ISP-HD to its membrane anchor remains highly unstructured (Extended Data Fig. 9a–c). Only in the cryo-EM map with DBMIB, where the ISP-HD occupies the closest b-position, is the neck region slightly better resolved (Extended Data Fig. 9c). Therefore, the dynamic conformation of the neck region in cytb6f is clearly different from that of cytbc1, which undergoes a sharp transition from a stretched coil-like thread to a proper α-helix when ISP-HD occupies the b-position or the c1-position47 (Extended Data Fig. 9d,e). The lack of an α-helix in the state where ISP-HD is in the f-position (corresponding to the c1-position of cytbc1) implies that the motion of ISP-HD in cytbc1 and cytb6f involves different transitions between conformations.

The position and orientation of the substrate (PQH2) in Qp for the catalytic reaction remain unresolved. In the internal cavities around Qp, both 1.9 Å and 2.2 Å structures show densities remarkably similar to those described in the previous high-resolution structure of cytb6f, which were interpreted as a possible channel for unidirectional PQ traffic through the site21 (Extended Data Fig. 10). Nevertheless, some shortened density fragments might suggest that a partial replacement of natural PQ with the shorter PQ analogue DPQ has taken place. Ligands in the channel remain highly mobile, which makes unambiguous interpretation of their orientation as challenging as in previous analyses.

Conclusion

We present structural and spectroscopic data that point towards fundamentally different binding modes for substrates and inhibitors at the quinone reduction site of cytb6f. Furthermore, we propose a quinone–water exchange mechanism that provides the molecular basis for effective catalytic turnover. Our data reveal overall similarities and minor differences in the motion of ISP-HD in cytb6f compared with cytbc1. The structures also clarify the mechanism of cytb6f inhibition by DBMIB at the Qp site. Our findings contribute to a complete molecular description of the dynamic mechanisms of quinone oxidation and reduction reactions in cytb6f. This work helps us understand the phenomena responsible for photosynthesis and respiration, which enable life on our planet.
