Extended Data Fig. 10: Selection and evolution of ethylene sensitivity in modern roses. | Nature Plants

Extended Data Fig. 10: Selection and evolution of ethylene sensitivity in modern roses.

From: Haplotype-resolved genome assembly and resequencing provide insights into the origin and breeding of modern rose

Extended Data Fig. 10

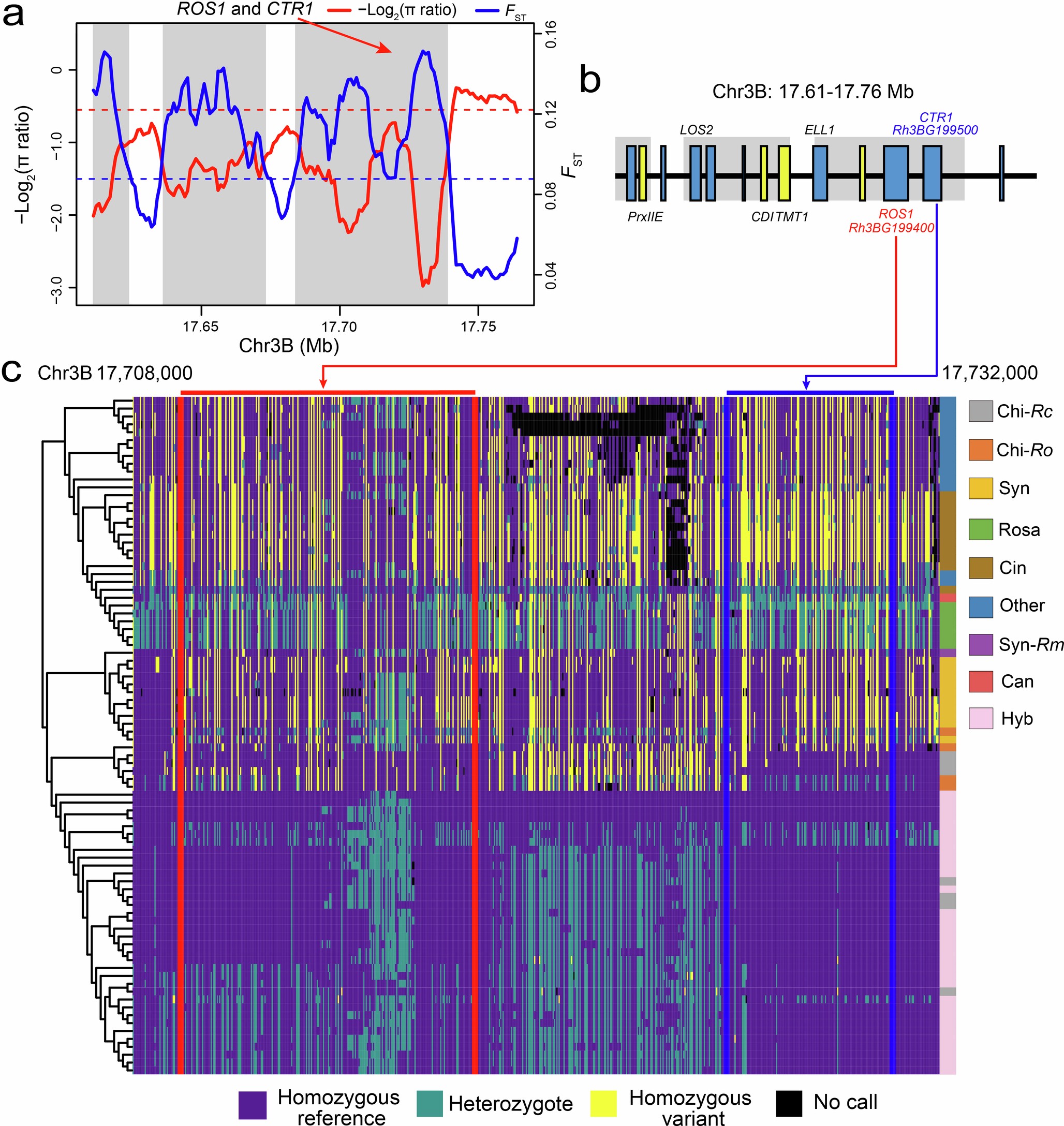

a, π ratio and FST values in the selective sweep region containing CTR1 and ROS1 genes. b, Genes in the selective sweep region. Blue boxes represent genes located on the sense strand, while yellow boxes represent genes located on the antisense strand. c, Heatmap of SNP genotype profiles in selective sweep regions. Maximum likelihood phylogenetic tree is shown on the left. The rectangular boxes on the right indicate the sections to which the samples belong. Hyb, modern cultivars, R. hybrida; Syn, section Synstylae; Syn-Rm, R. moschata; Chi-Rc, R. chinensis in section Chinenses; Chi-Ro, R. odorata in section Chinenses; Rosa, section Rosa; Can, section Caninae; Cin, section Cinnamomeae; Other, sections Pimpinellifoliae, Microphyllae, Bracteatae, Banksianae, and Laevigatae.
