Extended Data Fig. 2: Cube of cube model details.
From: Mechanical interactions between tissue layers underlie plant morphogenesis

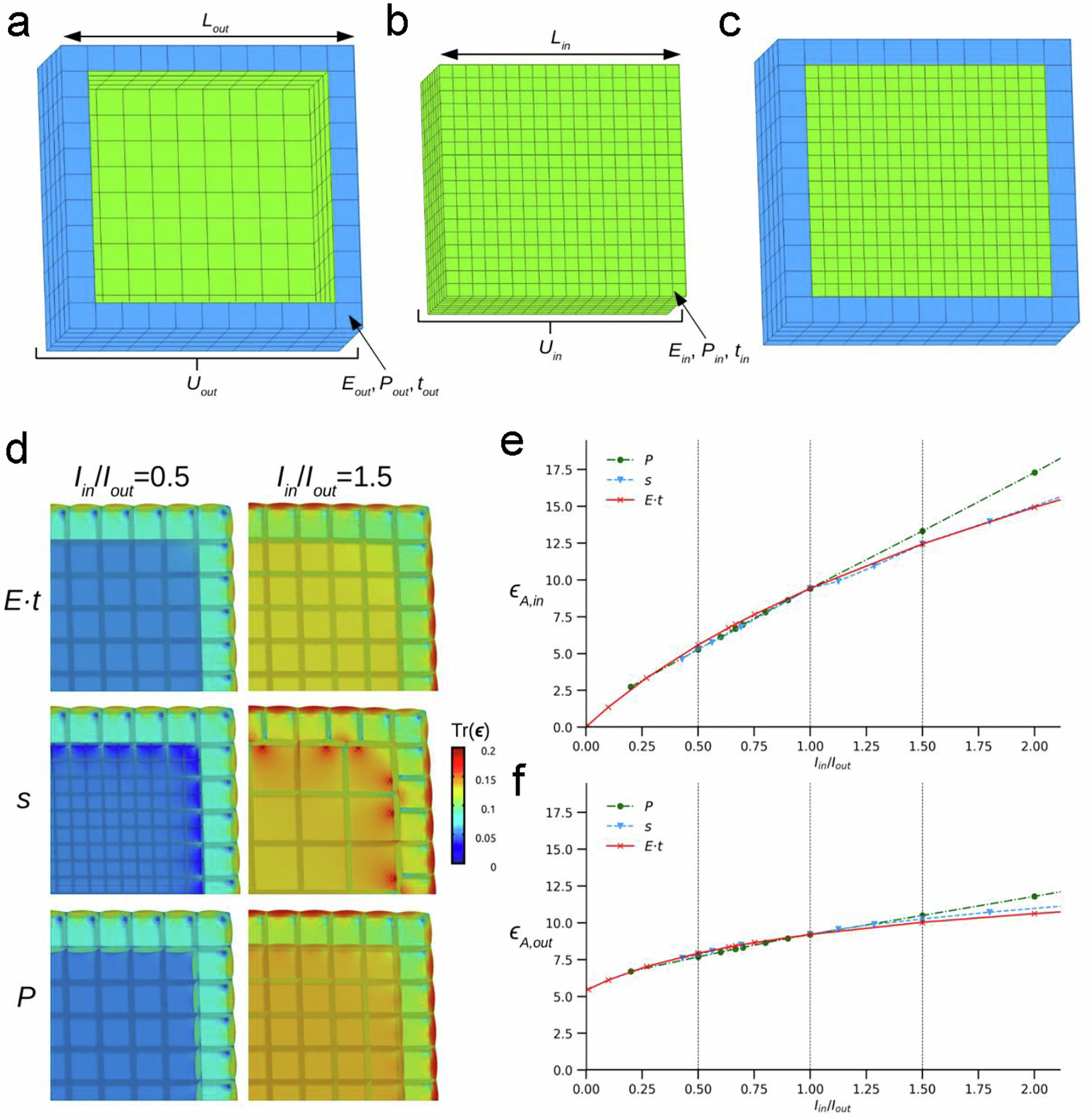

a to c, Cross-section of the model template of the cube of cubes. a, Outer layer of the tissue with constant properties. It is of total size Lout = Uoutlout where Uout is the number of cells along the side of the cubic tissue and lout the side of those cells. b, Inner tissue of total size Lin = (Uout-2)lout. It is made of UinxUinxUin cells of size lin = Lin/Uin. c, Assembled outer layer and inner tissue. d, Detailed view of Fig. 2b. Color scale: Trace of the Green-Lagrangian strain tensor Tr(ε) per element. (e and f) For each parameter Et, s, and P, areal strains (in %) of anticlinal walls within inner e and outer f cells are plotted against the ratio of inflation potential in inner vs outer cells.
