Main

A key step in mobile mRNA studies is the assignment of RNA-seq reads to different genotypes. One way of identifying the genotype is based on single nucleotide polymorphisms (SNPs) (Fig. 1). Typically, a requirement is made for a defined number of RNA-seq reads to have a SNP that corresponds to the alternative allele for a transcript to be assigned to a foreign genotype. Published criteria are: ≥1 RNA-seq read covering at least two SNPs3, ≥2 reads3, ≥3 reads20 or >3 reads2 covering a single SNP. When these criteria are met, the corresponding transcript is defined as mobile.

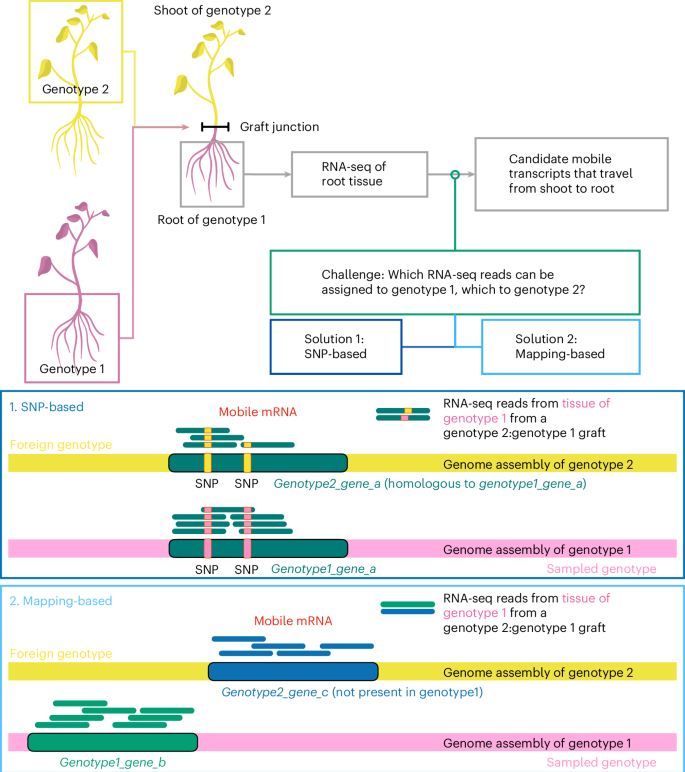

Fig. 1: Grafting coupled with RNA-seq to identify transcripts that move from tissue of one genotype/species/ecotype/cultivar into tissue of another across the graft junction.
Fig. 1: Grafting coupled with RNA-seq to identify transcripts that move from tissue of one genotype/species/ecotype/cultivar into tissue of another across the graft junction.
Full size image

Grafting-based strategy for identification of mRNAs that move from shoot (scion) to root (stock), from genotype 2 to genotype 1, using a scion:stock = genotype 2:genotype 1 heterograft. The same strategy can be used to identify transcripts that move from shoot to root from genotype 1 to genotype 2 using a genotype 1:genotype 2 graft. Transcripts that move root to shoot can be identified by analysing mRNAs in shoot tissue. Natural grafts, such as those established between the parasitic dodder plant and its host plants, can be used in place of artificial grafts. A key challenge in all such approaches is how to assign transcripts to each genotype; methods for doing so are based on (1) SNP identification or on (2) the alignment to different reference genomes. For grafts from the same species, or similar genotypes, SNPs can be used to distinguish between genotypes and thus identify the source genotype of each transcript (1). For grafts between different species, mapping (2) each RNA-seq read to the genome assemblies can be an effective method for determining which transcripts are specific to one species.

As previously reported21, criteria based on absolute numbers of reads, such as those above, exhibit a read-depth dependency (Extended Data Fig. 1). This is a consequence of sequencing noise.

Illumina sequencing machines produce base-calling errors at a rate of ~0.1–1% per base22,23. Sequencing providers often provide a quality assurance, for instance, that 85% of the reads have a Phred quality score of at least Q30 (that is, a base-calling error of less than 10−3 = 0.1%). However, base-calling inaccuracies are not the only source of error. Before sequencing, reverse transcriptases can introduce base changes with an error rate of ~0.001–0.01%; the reverse transcription reaction error may exhibit a nucleotide bias, for instance, ‘G’ to ‘A’24,25, and a range of other artefacts26. On average, 6.4 ± 1.24% of sequences are mutated22. The average error rate of next-generation sequencing technologies has been estimated as 0.24 ± 0.06% per base22,27, with RNA-seq errors tending to be higher27.

We therefore investigated whether noise in RNA-seq may influence the identification of mobile mRNAs. Figure 2a lists how many reported mobile mRNAs have numbers of reads with SNP occurrences that are consistent with an assumed error rate21,28. As an example, for an accuracy of SNP calling of 99.97% (that is, 0.03% sequencing noise, Phred score Q35, and an error probability for the alternative allele of ~0.01%), the evidence for 1,086 out of 2,006 (54%) and 384 out of 1,130 (34%) previously identified mobile mRNAs2,3 is in line with what would be expected from sequencing noise (Fig. 2a).

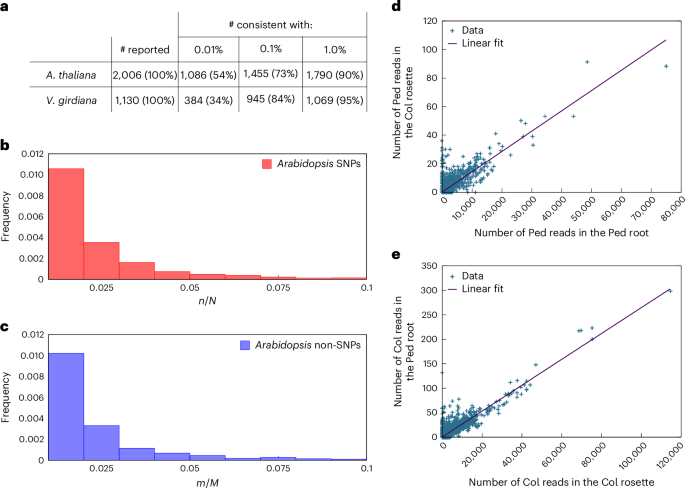

Fig. 2: Alternative interpretations for the evidence for mobile mRNAs.
Fig. 2: Alternative interpretations for the evidence for mobile mRNAs.
Full size image

a, Total numbers of reported mobile mRNAs in Arabidopsis thaliana2 and Vitis girdiana3 that can be explained by expected sequencing noise. Two values for the probability of the sequenced nucleotide at a SNP position being assigned to an alternative allele are given: 0.01% and 0.1%. b,c, The distributions of nucleotides at SNP and other positions (‘non-SNP’) can be informative for evaluating the evidence for the alternative allele. b, Histograms of the ratio of the number reads that match the alternative allele, n, over the number of reads of local and foreign reads, N, for each SNP position in the mobile population on examples from Arabidopsis2. Several SNPs have reads that match the alternative allele (n/N > 0). c, Histograms of the ratio of the number reads that match the second most frequent nucleotide, m, over the sum of the number of reads over the most frequent and second most frequent nucleotide, M, for neighbouring positions to SNPs. An exact two-sample Kolmogorov–Smirnov test does not find significant differences in the distributions over SNPs and other positions (D = 0.089302, P = 0.3575). A Welch two-sample t-test (P = 0.6421), Wilcox rank sum test (P = 0.6388) or an exact two-sample Kolmogorov–Smirnov test (P = 0.4065) does not support the values for SNPs being higher than other positions. d,e, Of the 2,006 previously identified mobile mRNAs2, 953 unique mobile mRNAs were found in only 1 replicate in different organs of an adult Ped-0:Col-0 (root:shoot) graft. Such high numbers are not consistent with our hypothesis of sequencing noise and biological variation. Investigating the reciprocal relationship between root alleles that were detected in the rosette (d) and vice versa (e), in the root (1,373 mRNAs/867 unique) and rosette (577 mRNAs/151 unique) samples, identifies a strong linear correlation (P = 2 × 10−16) between expression in the source tissue and potential mobility. Interestingly, those SNPs that lie towards the lower read depth in each plot deviate the most from the linear relationship. However, these transcripts have low read numbers only in the ‘source’ tissue, whereas they have high read numbers in the sampled tissue and reads over SNPs that are consistent with sequencing errors. These plots thus show two effects: sequencing noise + either non-selective transport across the whole transcriptome or contamination.

One way to increase the accuracy of detecting foreign transcripts is to consider multiple SNPs per read. If SNPs are located closely together, then a single RNA-seq read may cover more than one SNP. Accounting for co-occurring SNPs on the same read leads to the multiplication of their probabilities, resulting in higher accuracy (less likely to occur by chance), less pronounced read-depth dependence than single SNP criteria (Extended Data Fig. 1) and greater confidence in these reads being from a foreign genotype. We therefore examined reads over co-occurring SNPs (Extended Data Fig. 3 and Supplementary Table 1). In the Arabidopsis homograft datasets2, we found a total of 1,753,179 reads covering more than 1 SNP in the root and 1,977,539 in the shoot of Col-0; of these 1,675 (0.10%) and 1,797 (0.091%), respectively, had reads supporting the alternative allele for at least 1 but not all SNPs. These inconsistent calls are in line with the notion that sequencing noise may confound the identification of mobile mRNAs. We found 29 reads (1.6 × 10−3%) in the root and 2 reads (1.0 × 10−4%) in the shoot for which all SNPs supported the alternative allele. Interestingly in Ped-0 homograft data, the proportion of reads with full support for the alternative allele was significantly higher (0.038% in the root, 0.12% in the shoot). Investigating these co-occurring SNPs revealed another confounding factor in the identification of mobile mRNA; several loci showed apparent heterozygosity in the Ped-0 ecotype (Extended Data Fig. 4).

Such apparent heterozygosity could be caused by a lack of introgression or gene copy-number variation; it has been estimated that 10% of the annotated genes in Arabidopsis have copy-number variation29,30. Differences in gene copy numbers can lead to reads not mapping correctly, which gives rise to pseudo-SNPs and pseudo-heterozygosity29,30. Of the 2,570 genes assigned as pseudo-heterozygous30, we found 188 mobile transcripts2 (Extended Data Figs. 2 and 4). We identified 19 transcripts in the Ped-0 samples that are likely caused by mismapping; interestingly, these include transcripts that frequently fulfill the criteria for being classified as mobile (Supplementary Table 3). Thus, in addition to technological noise, there are also biological causes that could be falsely interpreted as SNPs of an alternative allele. As a consequence, it becomes important to not rely solely on Phred scores for estimating errors in SNP assignments. We next sought to estimate this background noise level, that is, the frequency for finding the alternative allele when the alternative allele is not actually present. This value can be estimated from available Arabidopsis homograft data2. We counted the number of RNA-seq reads in the homograft with a SNP that matched the foreign genotype. For Arabidopsis homograft datasets (ecotypes Col-0 and Ped-0), these background noise levels were 0.084% (Col-0:Col-0 root), 0.082% (Col-0:Col-0 shoot), 0.68% (Ped-0:Ped-0 root) and 0.51% (Ped-0:Ped-0 shoot). The higher background error rate in Ped-0 is consistent with more Col-0 transcripts being identified as mobile in sampled Ped-0 tissue2. For an average background error rate of 0.34%, we find that over 1,455 out of 2,006 (>73%) and over 945 out of 1,130 (>84%) of annotated mobile mRNAs would not be distinguishable from expected errors (Fig. 2a). Consistent with this, poor overlap between experiments has been noted18,31, orthologues in closely related species exhibit conflicting mobility, and reported low ratios of mobile to endogenous mRNAs3,5,7 are in line with the level of noise.

Another way to distinguish noise from potential evidence for the alternative allele is to investigate the differences in nucleotide distributions at SNP positions compared to other positions in the sequence (non-SNP positions). If a second genotype were present, we would expect the distribution of nucleotides at any SNP position to be enriched in the nucleotide that supports the alternative allele. Furthermore, mRNAs that are transported to cells with low endogenous level (potential signals) would have a value of n/N close to 1, where n is the number of reads that match the alternative allele and N the total number of reads (endogenous + foreign). We investigated the distribution of n/N for each SNP in the mobile population of Arabidopsis2. While we do not find evidence for n/N values close to 1, there are non-zero values of n/N that seem to support the presence of the alternative allele (Fig. 2b). However, looking at all neighbouring positions of SNPs and computing the number of reads with the second most frequent nucleotide, m, over the sum of the most frequent and second most frequent nucleotides, M, we find no support for the SNP positions being different (P = 0.3575) (Fig. 2c). Thus, the expected shift in the distribution towards higher n/N values, that is n/N > m/M, is not observed. Given the low prevalence, it is important to note that this analysis does not exclude there being instances, potentially even thousands, of reads with SNPs associated with mobile mRNAs in the data, but if so we cannot distinguish them from noise.

Interestingly, two samples from Arabidopsis2 do contain numbers of foreign reads that exceed expected noise levels. Investigating further, we find that these samples exhibit a strong linear correlation between the read counts of the grafted tissues (Fig. 2d,e). Similarly, Arabidopsis transcripts found in Cuscuta pentagona correlate with the expression levels in the host genotype1. Finding constant proportions of a whole transcriptome is indicative of contamination. Another explanation is that the whole transcriptome is transported, with detection being proportional to read depth. Given the available data, we cannot distinguish between these possibilities.

Approaches that do not rely on SNPs, such as for cross-species studies, might avoid some of the above issues. A typical pipeline for analysing between-species grafts first maps reads to the reference genome of the sampled tissue (genotype 1 in Fig. 1). Unmapped reads are then compared to the reference genome of the potential source tissue (genotype 2 in Fig. 1). The success of this approach depends on the quality of the genome assembly. Supplementary Table 2 lists some genome completeness estimates for assemblies that were used in previous mobile mRNA studies. For instance, at the time of the study that investigated the movement of transcripts from a Nicotiana benthamiana scion to a Solanum lycopersicum (tomato) rootstock6, ~15% of the genome was not yet assembled (Extended Data Fig. 6). The authors therefore collected RNA-seq data and applied stringent mapping criteria to mitigate effects of using an incomplete assembly. However, repeating their procedure, we found that many reads that did not map to the tomato genome all aligned to small regions of the N. benthamiana genome, and that coverage was highly uneven over exons (Extended Data Figs. 5 and 6). Furthermore, blasting the reads identified as being from N. benthamiana against the whole NCBI nucleotide database resulted in 100% matches to highly conserved sequences contained within many genomes, including N. benthamiana and other Solanaceae species, in particular to 18S ribosomal RNA genes, which accounted for 97.7% of the blast hits to N. benthamiana (Extended Data Fig. 8). To test for false negatives, we mapped the heterograft reads directly to the N. benthamiana genome and found 16 short transcripts that could not be distinguished between genomes (Supplementary Table 4).

In addition to genome assembly quality, read depth can also bias the interpretation of RNA-seq data from grafts between different species (Extended Data Fig. 7). For instance, ~30% of the Arabidopsis thaliana transcriptome was reported to move into Cuscuta pentagona, while only 9% of the tomato transcriptome moves to Cuscuta1. However, there is a large discrepancy in the amount of RNA-seq data between tomato (6 Mb) and Arabidopsis experiments (2 Gb). Greater coverage would be expected to lead to more transcripts being detected32,33,34, thus explaining the reported bias in mobility between species.

Overall, our study raises questions about published numbers of mobile mRNAs. The experimental evidence for movement of a small number of mRNAs over long distances in plants is compelling5,6,11,15,17,35,36. However, on the basis of RNA-seq studies, several thousand mobile transcripts have been reported1,2,3,4,6,7. Here we question this extrapolation from tens of validated cases to the published vast numbers of potential long-distance signalling agents.

Recommendations

We described several challenges in identifying mobile mRNAs from short-read RNA-seq data (Fig. 3). While we do not present solutions, we suggest checks that can be performed to reduce the risk of false positives. We thus end with a list of recommendations. We assume that experimental issues have been taken care of, such as checking the samples for cross-contamination, verifying that graft junctions form functional vascular connections, and every effort has been made to use high-quality genome assemblies.

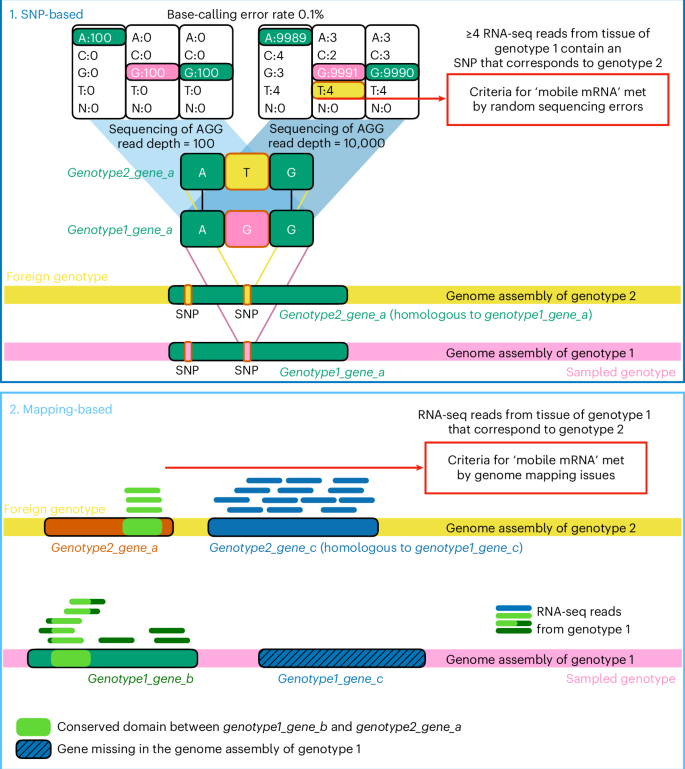

Fig. 3: Mobile mRNA identification is not without challenges.
Fig. 3: Mobile mRNA identification is not without challenges.
Full size image

(1) Technological noise can lead to challenges in the assignment of RNA-seq reads. In SNP-based methods of mobile mRNA detection, it is important to be able to differentiate between sequencing-associated errors and genuine SNPs. In the above case, an RNA-seq read with a ‘T’ at the SNP position would be indicative of the read having come from the alternative allele, genotype 2. However, every position has an error rate and the higher the read depth, the more incorrect base calls are to be expected. Base changes could arise for reverse transcriptase or amplification steps, although their error rate is typically orders of magnitude lower than sequencing errors. Conserved regions in gene families can give rise to similar challenges in distinguishing mapping ambiguities from genuine SNPs. Defining an mRNA as being mobile based on thresholds of RNA-seq reads that contain a SNP can result in base-calling errors and mapping ambiguities biasing the interpretation. To reduce the risk of such events occurring, further stringent filters can be applied (for instance, using only SNPs that are bi-allelic2) or applying rigorous statistical comparisons (for instance, estimating the allele calling frequencies and comparing them between homograft and heterograft21). (2) Genome complexity and genome quality can lead to mapping challenges. Orthologous sequences (light green) can result in some RNA-seq reads aligning to a different gene and different genotype. Genome assemblies that are not complete (telomere to telomere) from exactly the same genotype as used for grafting can result in potential mismappings. The shaded blue gene in genotype 1 is missing in the reference genome assembly, resulting in RNA-seq reads from this transcript being mapped to genotype 2.

  1. 1.

    SNP reliability. A genome mapping visualization tool such as IGV37 can be used to check for pseudo-heterozygosity and contamination in the samples. Observing the distribution of nucleotides at potential SNP positions and comparing to other positions can provide confidence in the SNPs and the alternative allele calls. These distributions should be compared to those from homograft data.

  2. 2.

    Co-occurring SNPs. RNA-seq reads that cover multiple SNPs can be used to check whether the SNPs that are associated with a certain genotype co-occur in such reads. Long-read and direct RNA sequencing have higher error rates but would allow the full transcript with all SNPs to be assessed. Sequencing protocols that barcode individual molecules by using adapters with unique molecular identifiers (UMIs) can be used to determine the error rates and check whether all reads from the same molecule are consistent in terms of their genotype assignment.

  3. 3.

    Accuracy of experimental and computational procedures for identifying foreign RNA-seq reads. Calculating the ratio of the number of RNA-seq reads assigned to an alternative allele (foreign reads) over the total number of mapped RNA-seq reads for an experiment (foreign + endogenous reads) is a useful metric. This value should be computed for homografts and compared to the value calculated from heterograft data.

  4. 4.

    Reproducibility and consistency of putative mobile transcripts. Independent biological replicates should be used to characterize the inherent variability in the identification of candidate mobile transcripts. Reciprocal grafting is recommended to evaluate whether mobile mRNA and their orthologues are consistently mobile (if mobility motifs are inherent to transcripts, then near-identical sequences would be expected to also be mobile) and, if not, potentially pinpoint determinants of mobility.

  5. 5.

    Alternative hypotheses. Definitions for mobile mRNAs using non-validated criteria are best avoided. It is important to test different hypotheses (for example, SNP vs sequencing noise; read from a foreign genotype vs mapping error; transport vs contamination; signalling molecules vs leftovers from differentiating cells) to explain the data. The plausibility of associated mechanisms can lend weight to different hypotheses.

Methods

All code and scripts are freely available from our GitHub repository at https://github.com/mtomtom/reanalysis-mobile-mrna/tree/main (ref. 38).

RNA-seq data processing

The raw reads were mapped to the references using hisat2 (v.2.1.0)39,

hisat2 -x genome -1 read1 -2 read2 > mapping.sam

and processed using samtools (v1.9)40,

samtools sort -o mapping.bam mapping.sam

samtools index mapping.bam

Expression level quantification

The expression levels were quantified with Stringtie (v.1.3.5)41 using

stringtie mapping.bam -e -G genes.gff -o output.gtf -A output.abundance.txt

Quantification of raw counts of all nucleotides

The raw counts were quantified with bcftools (v.1.10.2)40 using

bcftools mpileup -A -q 0 -Q 0 -B -d 500000

--annotate FORMAT/AD, FORMAT/ADF, FORMAT/ADR, FORMAT/DP, FORMAT/SP, INFO/AD,

INFO/ADF, INFO/ADR

These flags were chosen to compare the raw error rates between the homograft and heterograft to catch all nucleotides. Note that the bcftools mpileup default sequencing depth is 8,000, but the most highly expressed genes have up to 200,000 reads covering a locus within the datasets we considered.

Blast search

The NCBI nucleotide database was downloaded on 21 October 2022 and blast+ (v.2.9.0)42 was utilized for alignments using

blastn -db nt -query unmapped.fasta -max_target_seqs 10 -max_hsps 1-evalue 1e-25

-outfmt '6 qseqid sseqid pident evalue staxids sscinames scomnames sskingdoms stitle'

Estimating the accuracy of mobile mRNA detection

If we are only interested in the number of reads that contain a SNP that corresponds to the alternative allele, we can use a binomial distribution (q is the probability the SNP matches the alternative allele, 1 − q is the probability that it does not) to evaluate the probability of this event occurring by chance21. The probabilities of errors occurring by chance were calculated from a standard cumulative binomial distribution, P(k ≥ m|N) = 1 − P(k < m∣N), which accounts for the requirement of having k reads, where k is at least m, out of N. Considering replicates can be handled in the same way (the probability of each SNP is computed from the cumulative binomial function and the requirement for a defined number of replicates can likewise be computed from a cumulative binomial function). Multiple SNPs per read results in a multiplication of probabilities. Cumulative binomial function values were computed using standard available functions in Python and R.

Assessing how many SNPs can be explained by sequencing-associated errors

Rather than ‘defining’ a transcript as mobile, we evaluated the probability of the data being consistent with expected noise against the probability of the data being best explained by the presence of two genotypes (and therefore potential candidates for mobile transcripts)21. Essentially, this means that if we find 10 out of 100 reads that match the alternative allele, we compute how likely this would occur by chance for a defined error rate. The implicit but rarely checked assumption in all SNP-based mobile mRNA detection pipelines is that the occurrence of reads that support the alternative allele in the heterograft data is larger than in homograft data. The uncertainty in the inferred error rate depends on the amount of data. We capture this uncertainty through probability distributions to inform inferences drawn from the data21. This ratio of the statistical evidence of one hypothesis over another is known as the Bayes factor43. The classifications in Fig. 2a are based on the commonly used value of log Bayes factor greater than 1 (refs. 21,43). The statistical comparison of error rates was performed using baymobil28.

Statistics for comparing nucleotide distribution as SNP positions vs other positions

To compare the full distributions of n/N and m/M values for different positions of RNA-seq reads, we used an exact two-sample Kolmogorov–Smirnov test, ks.test, available in R44. To evaluate whether the data supported the SNP distributions having higher values of n/N than other positions (m/M), we used an asymptotic two-sample Kolmogorov–Smirnov test. These tests were carried out for histograms with 100 bins.

Pseudo-heterozygosity

We downloaded the pseudo-heterozygous data from https://zenodo.org/records/6025134 (ref. 30). From the vcf-file we extracted all heterozygous calls for accession 9947 (Ped-0) and obtained 6,303 heterozygous SNPs. We compared these SNPs against the MATRIX_GWAS_raw_position.txt (from https://doi.org/10.5281/zenodo.5702395). We intersected these potential duplicate genes with the list of mobile genes2 and found 19 duplicate genes. These are given in Supplementary Table 3.

Genome assembly completeness estimation

We downloaded all the assemblies mentioned in the original papers and estimated their completeness with Abyss (v.1.9.0) using the command ‘abyss-fac’.

Contamination analysis

We analysed the samples of the root (1,373 mRNAs/867 unique) and rosette (577 mRNAs/151 unique), and reciprocally inspected the relationship between root alleles that were detected in the rosette and vice versa. We took the raw sequencing depth for 48,934 previously identified SNPs. For each SNP, we plotted the number of reads with a rosette allele (Col-0) found in the root sample (Ped-0) against the number of reads with the same SNP in the rosette sample. Similarly, we plotted the number of reads with the root allele (Ped-0) found in the rosette sample (Col) against the number of reads with the endogenous SNP (Ped-0) in the root sample. The linear fit was performed within gnuplot45.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
