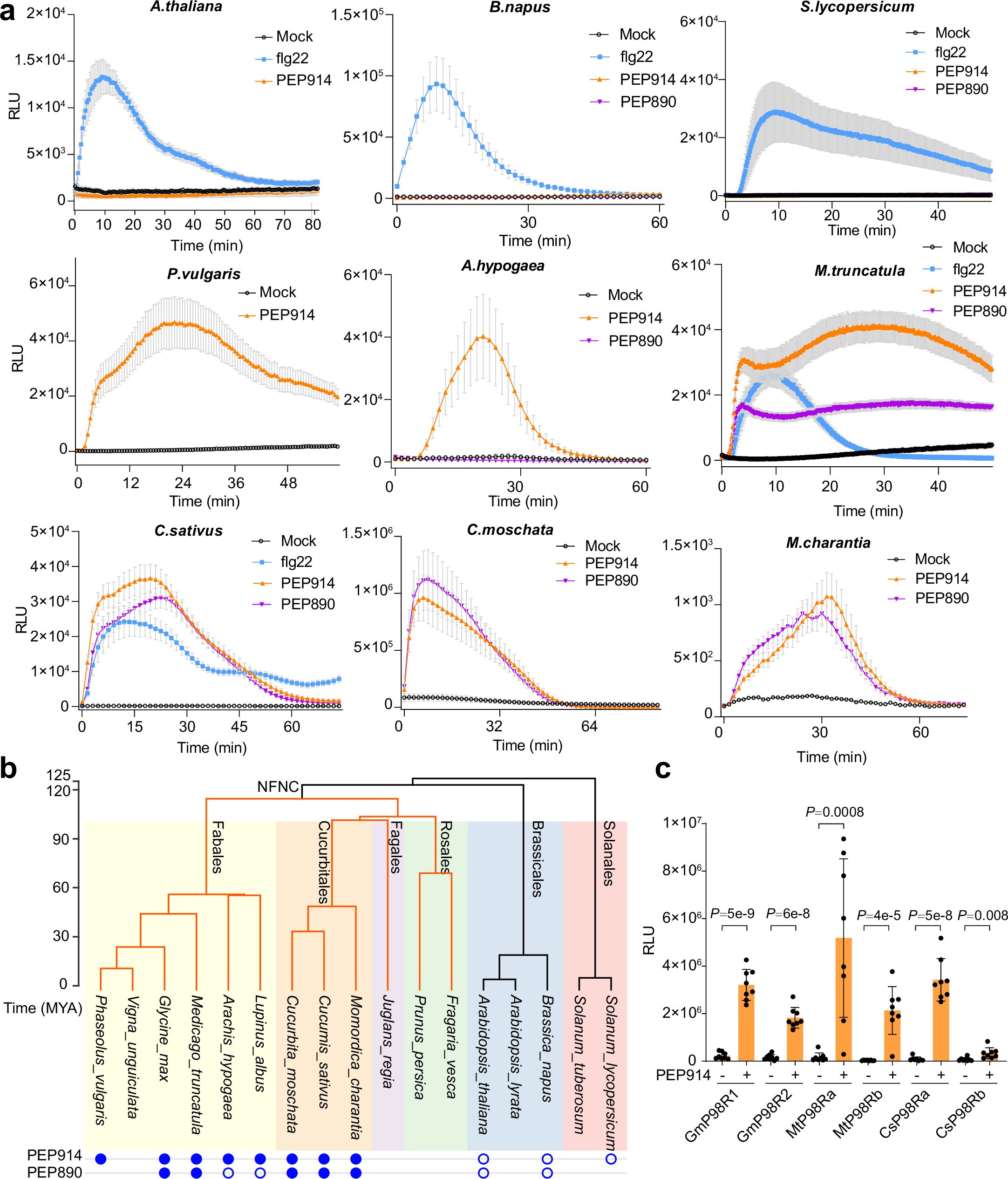

Extended Data Fig. 9: PEP914-P98R module is present in Fabales and Cucurbitales.
From: Large-scale pairing identifies a soybean phytocytokine-receptor module conferring disease resistance
a, ROS production triggered by PEP914 and PEP890 in the indicated plant species. ROS production in response to 1 μM peptides was measured. Mean RLU values (± SEM) are shown (n = 8). b, PEP914- and PEP890-induced ROS production in the indicated plant species. The species tree was generated using TimeTree 543. Species displaying positive and no ROS responses to the peptides are indicated by filled and open circle, respectively. NFNC, nitrogen fixing nodulation clade. c, ROS production mediated by CsP98Ra, MtP98Ra, and MtP98Rb in response to PEP914 or PEP890 in N. benthamiana. Full-length of indicated RKs were transiently expressed in N. benthamiana. ROS production in response to 1 μM peptides was measured after two days of expression. Cumulative RLU values (± SEM) are shown (n = 8). Statistical analysis was performed with two-sided Student’s t-test.
