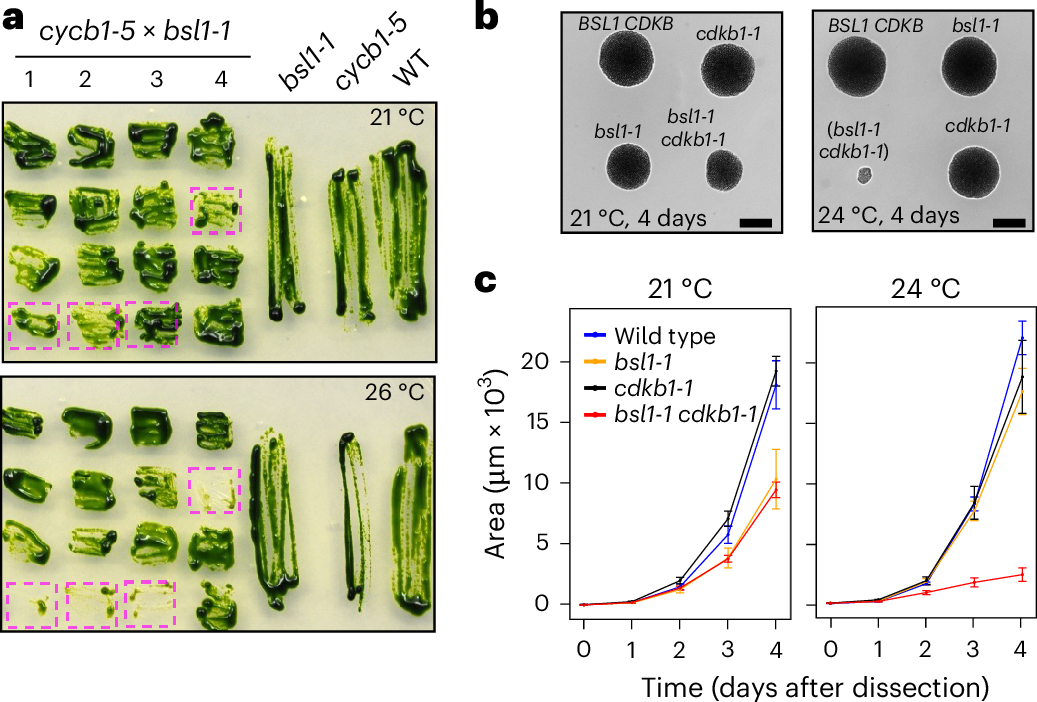

Fig. 4: bsl1-1 interacts genetically with cdkb1-1 and cycb1-5.
From: Mitotic entry is controlled by the plant-specific phosphatase BSL1 and cyclin-dependent kinase B
a, Tetrads from a bsl1-1 × cycb1-5 cross were dissected at 21 °C and restreaked to duplicate plates at 21 °C and 26 °C. The bsl1-1 cycb1-5 double mutants (magenta boxes) show a synthetic lethal phenotype at 26 °C. b, Representative images of tetrads from a bsl1-1 × cdkb1-1 cross grown at 21 °C and 24 °C for four days. Scale bars, 100 µm. c, Colony sizes of the indicated strains dissected from bsl1-1 × cdkb1-1 crosses and grown at 21 °C (n = 4 tetrads) or 24 °C (n = 8 tetrads). The error bars indicate s.e.m.
