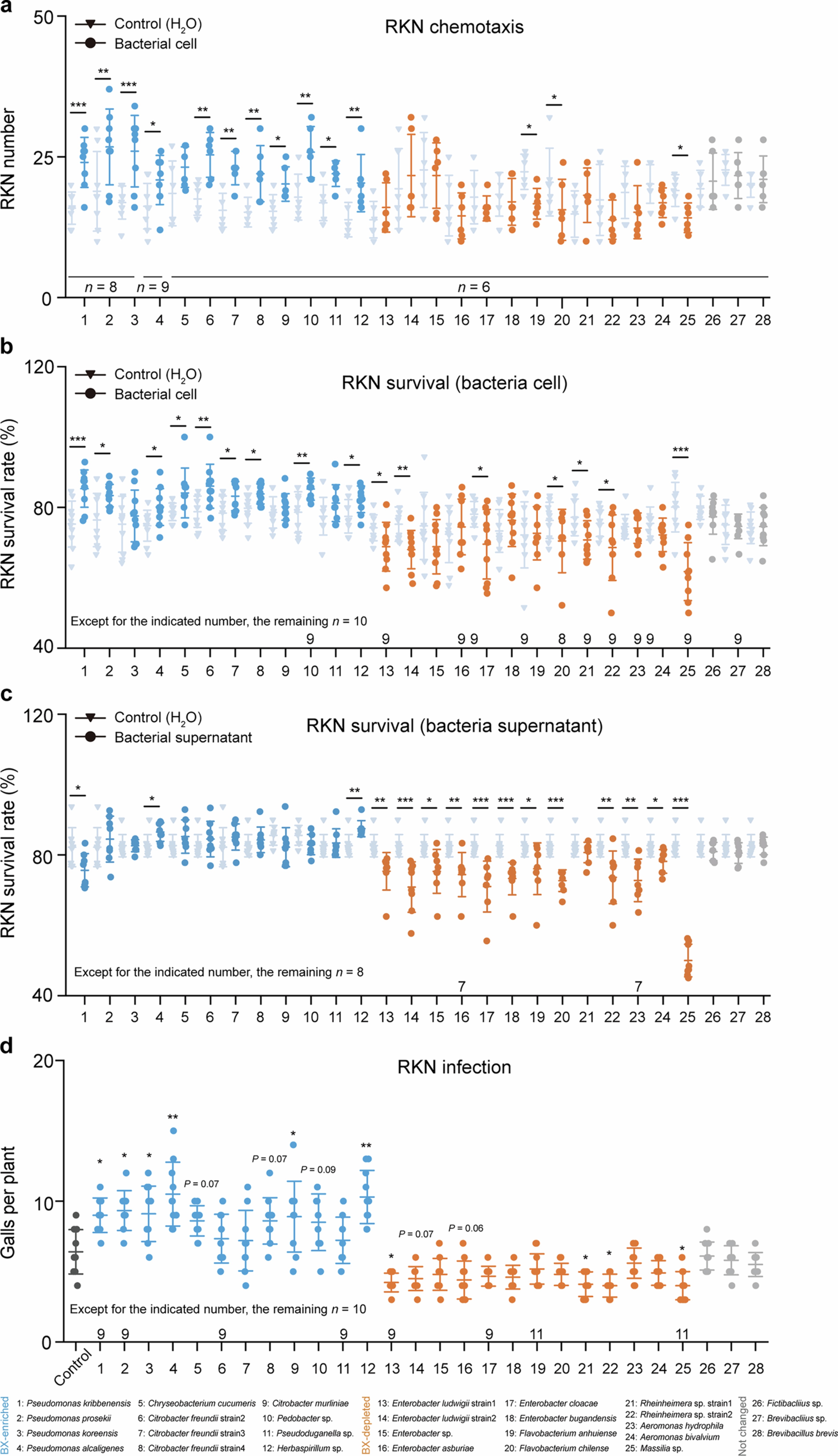

Extended Data Fig. 2: Effects of individual bacteria strains on RKN chemotaxis, mortality and infection.
a, Number of J2s migrated toward bacterial cells or respective controls. b, c, Survival rate of J2s treated with different bacterial cells (b) and supernatant (c). Bacterial culture medium or sterile water served as a control. d, Gall numbers on bx1 plants after inoculation with individual bacteria strains. Data are presented as mean ± s.d. The exact number of biological replicates is indicated above the X-axis. Data points represent individual replicates. Asterisks indicate significant differences between the bacteria and control treatments (ANOVA followed by pairwise comparisons of FDR-corrected LSMeans, *P < 0.05; **P < 0.01; ***P < 0.001). The raw data and exact P values for all comparisons in this figure are provided in Source Data Extended Data Fig. 2.
