Fig. 1: Dynamics of community homeostasis indices in bacterial, eukaryotic, and archaeal communities of GS and BS under PCS stress. | npj Biofilms and Microbiomes

Fig. 1: Dynamics of community homeostasis indices in bacterial, eukaryotic, and archaeal communities of GS and BS under PCS stress.

From: Geocaulosphere soil bacterial community drives potato common scab outcomes beyond pathogen abundance

Fig. 1: Dynamics of community homeostasis indices in bacterial, eukaryotic, and archaeal communities of GS and BS under PCS stress.

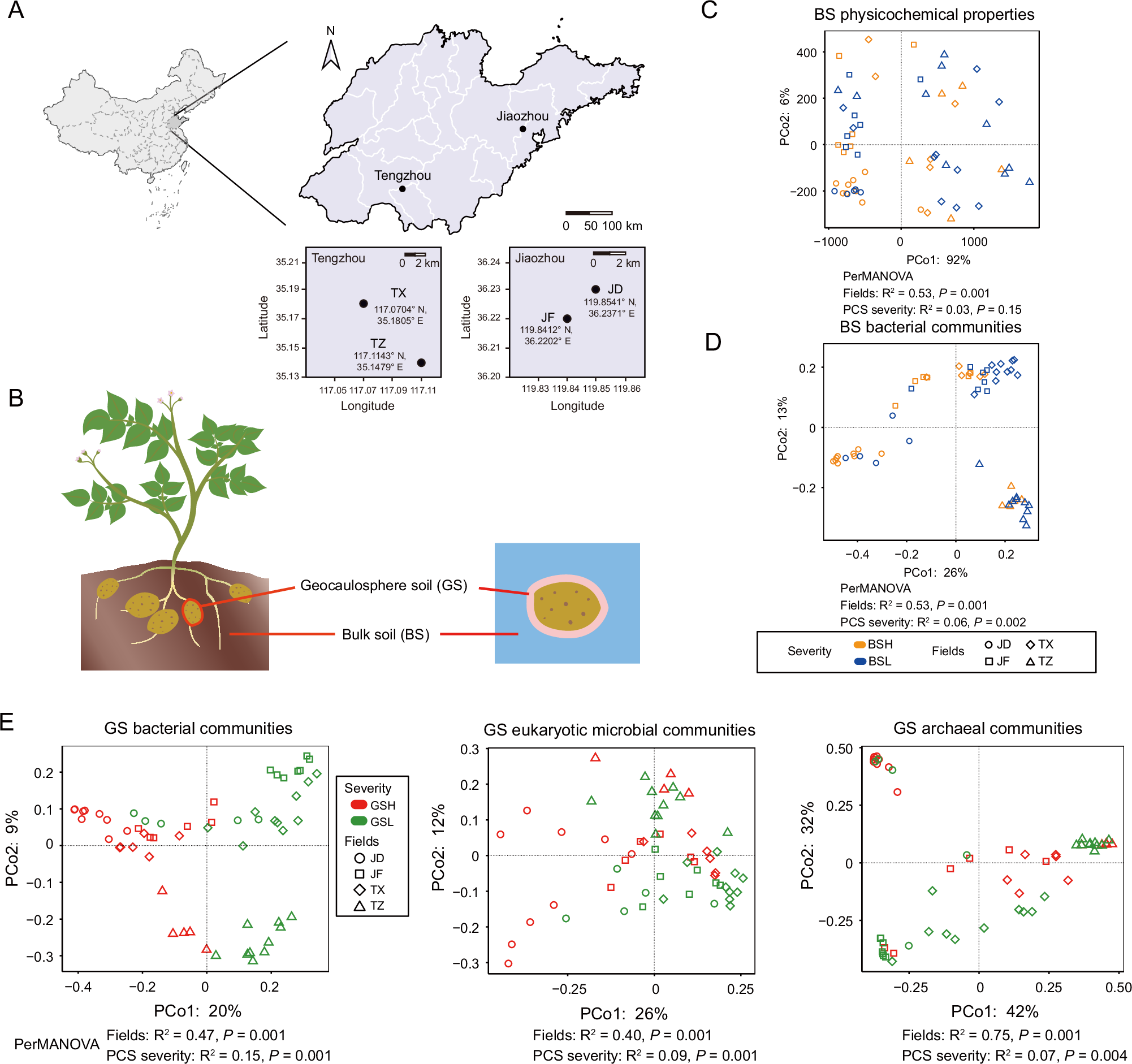

A Soil samples were collected from four fields, including TX and TZ in Tengzhou and JD and JF in Jiaozhou. B Two compartments of soil, such as GS and BS, were sampled for each selected plant. The GS represented the soil within 2 mm proximity of the tuber surfaces. The BS was collected from the plant growth area at a depth of 5–15 cm (from the cultivation hole after plant removal). Both PCoA and ADONIS showed that the soil physicochemical properties (C), bacterial communities (D). E PCoA revealed variations in GS bacterial, eukaryotic, and archaeal communities between fields or PCS severities.
