Fig. 4: Effect of infection status on the microbiome network correlation structure.

From: Profound taxonomic and functional gut microbiota alterations associated with trichuriasis: cross-country and country-specific patterns

Fig. 4: Effect of infection status on the microbiome network correlation structure.

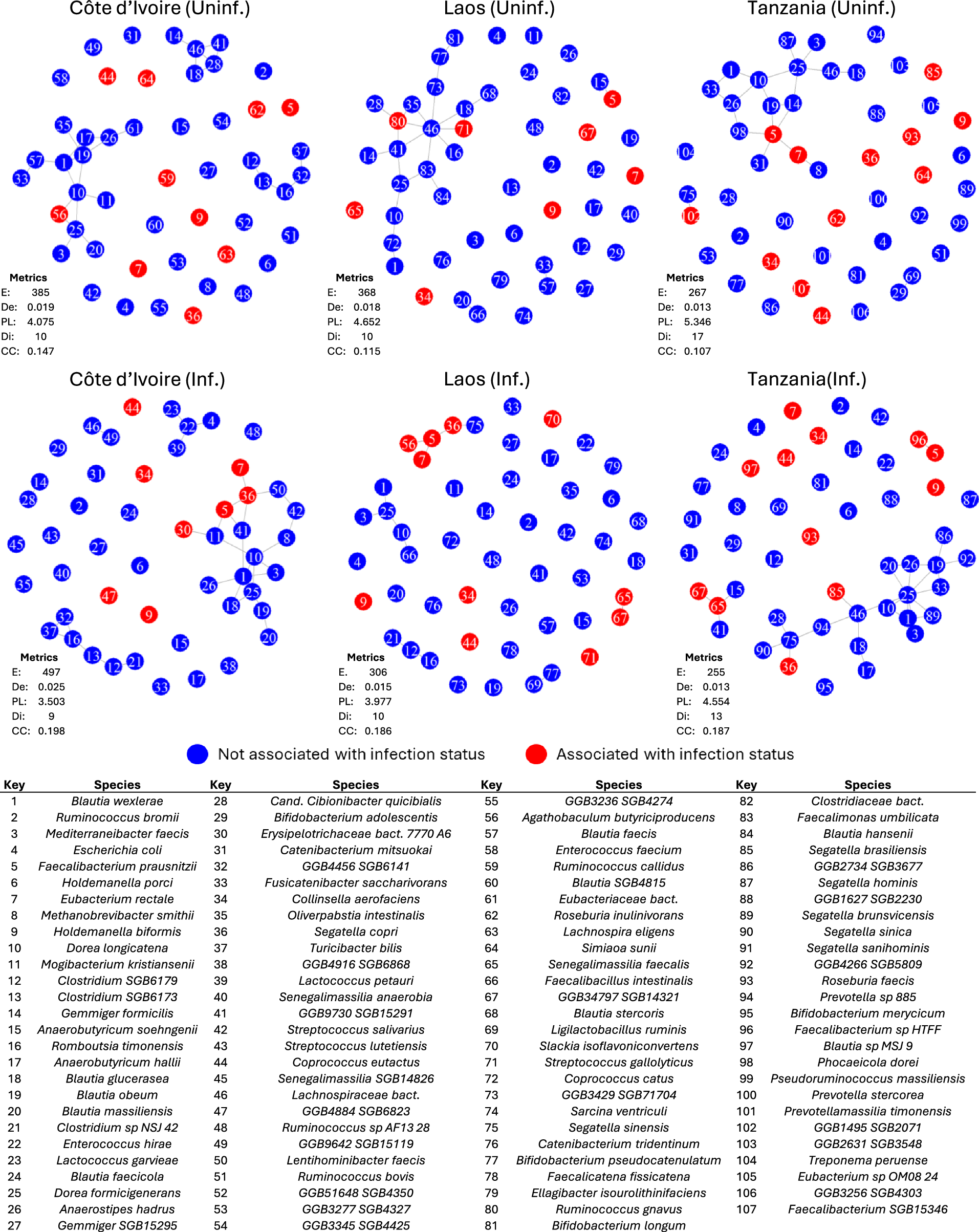

SpiecEasi analysis of taxonomic profiles stratified by country and infection status. The visualization was based on the 50 most abundant species in the different groups, while the metrics were calculated using the 200 most abundant species in each group. Network metrics are as follows: E edges, De density, PL average path length, Di diameter, CC clustering coefficient. The numbers in the correlation graphs correspond to the species listed in the table at the bottom of the figure. Inf. infected; Uninf. uninfected.
