From: Unsupervised phase mapping of X-ray diffraction data by nonnegative matrix factorization integrated with custom clustering

Fig. 6

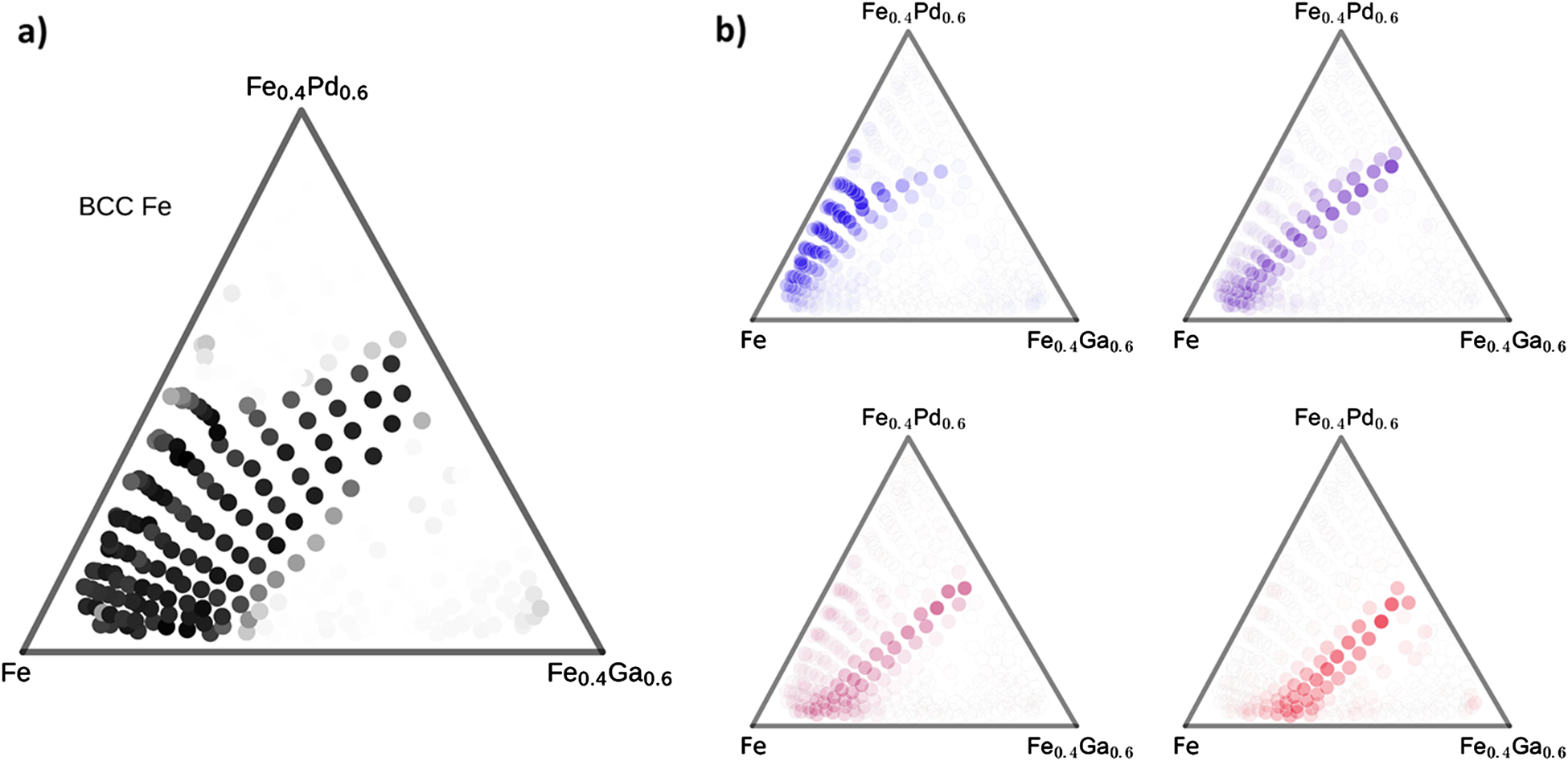

Peak shifting in the Fe-Ga-Pd system: a Combined weights for the four basis patterns corresponding to the BCC Fe structure. b The abundance of each peak-shifted pattern. The evolution of the structure can be deduced from the distribution of the abundances and the relative position of the peaks (the colors are matched with those of the patters in Fig. 5c)
