Fig. 5 | npj Computational Materials

Fig. 5

From: Prediction of room-temperature half-metallicity in layered halide double perovskites

Fig. 5

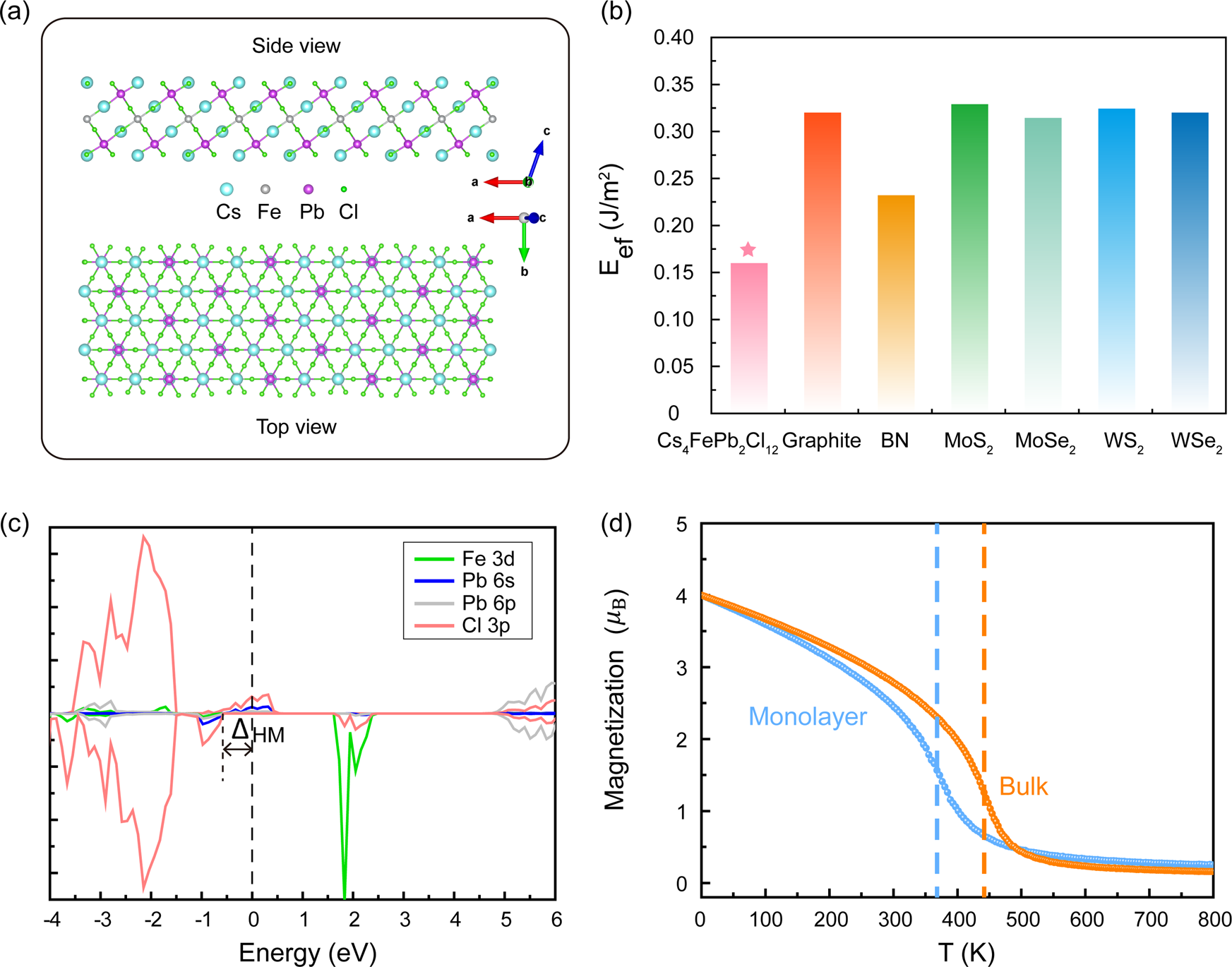

Magnetic properties of bulk and monolayer Cs4FePb2Cl12. a Top and side views of Cs4FePb2Cl12 monolayer. b Calculated exfoliation energy (Eef) for Cs4FePb2Cl12 and several layered compounds for comparison. c Orbital-projected DOS for Cs4FePb2Cl12 monolayer. Ef is set to zero. d Magnetic moment per Fe site as a function of temperature for bulk Cs4FePb2Cl12 (orange line) and Cs4FePb2Cl12 monolayer (blue line) from MC simulations. The vertical dashed lines indicate the Tc.
