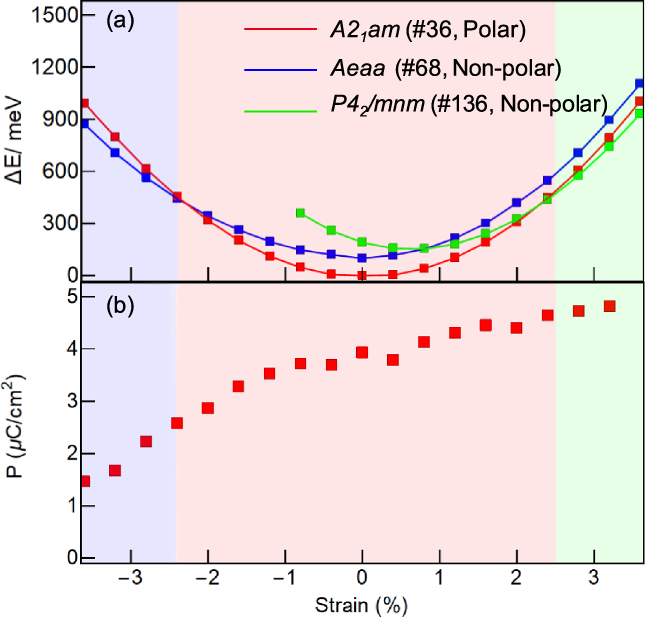

Fig. 4: Effect of strain on Sr3Sn2O7.
From: Suppressing the ferroelectric switching barrier in hybrid improper ferroelectrics
a The energy of different metastable phases vary with biaxial strain. Transitions to nonpolar phases are observed on both tensile and compressive strain. b The polarization strength of the polar phase as a function of strain. The background colors indicate different ground state structures.
