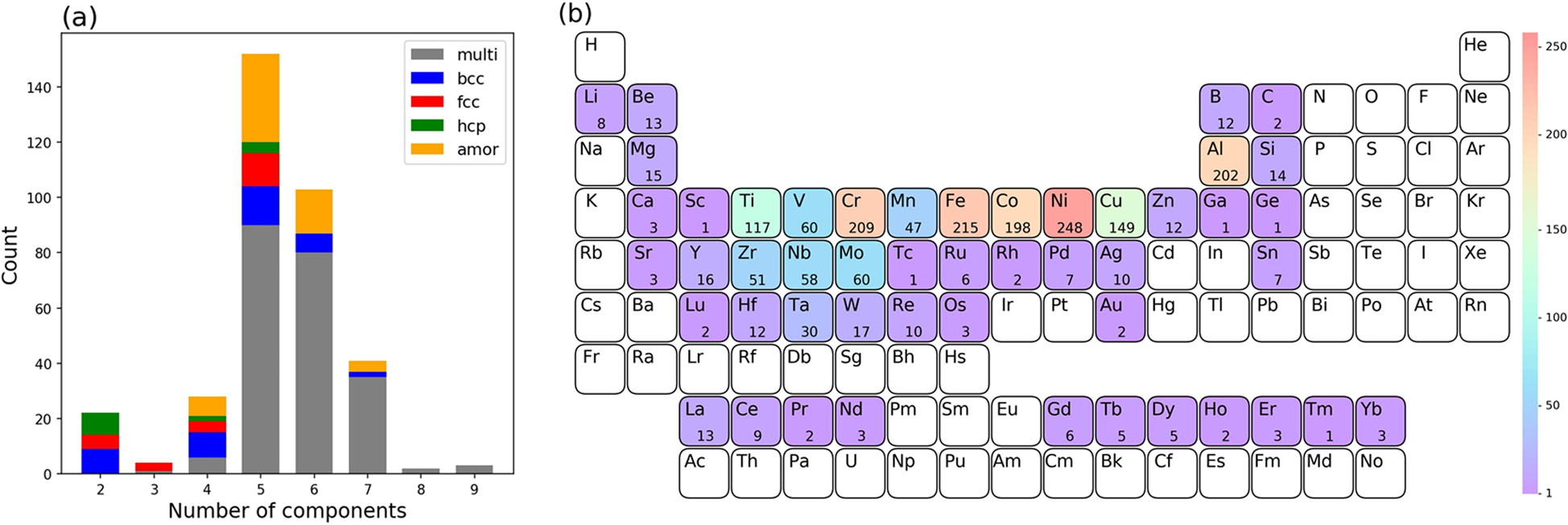

Fig. 5: Statistics of the 355 HEAs in the dataset.
From: A general and transferable deep learning framework for predicting phase formation in materials
a The numbers of binary to nonary HEAs and the proportions of different phases. b The occurrence numbers of elements in the dataset are given under periodic table background. The blank squares, e.g., squares for noble gases, signify the elements not in the dataset.
