Fig. 5: Phase transformations of carbon and GaN.
From: An automated predictor for identifying transition states in solids

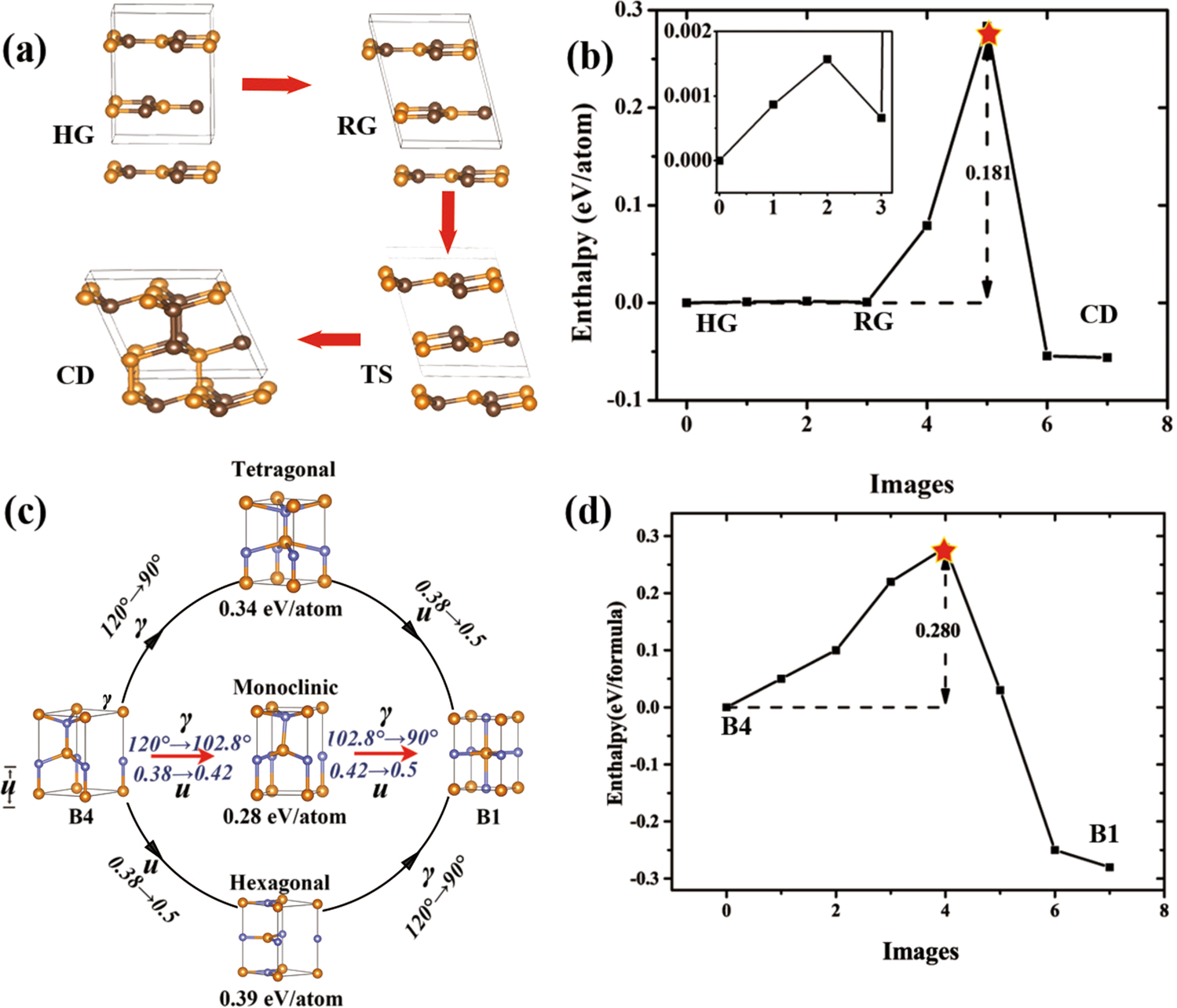

a Structure change from HG to CD through RG and TS of carbon. The orange and brown balls both represent carbon atoms. b MEP from HG to CD of carbon. Part of the MEP is enlarged in the inset. c Phase transformations from B4 to B1 in GaN. The orange and light blue balls represent Ga and N atoms, respectively. d MEP from B4 to B1 transformation of GaN. Note that the TS is denoted by a red star.
