Fig. 4: Characterisation properties Li-ion.

From: Pores for thought: generative adversarial networks for stochastic reconstruction of 3D multi-phase electrode microstructures with periodic boundaries

Fig. 4: Characterisation properties Li-ion.

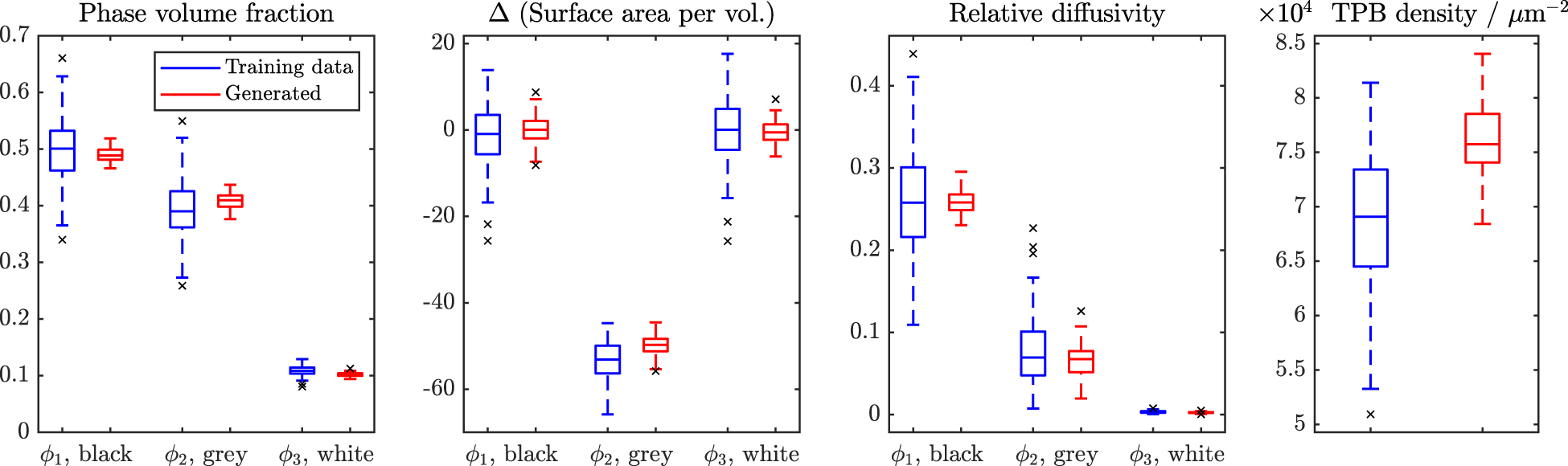

Microstructural characterisation properties for 100 training samples (blue) and 100 generated realisations (red) for the Li-ion cathode. In all cases, greater diversity is observed in the training set than the generated samples. Boxes show 25th–75th percentiles and the median. Black crosses show outliers.
