Fig. 8: Analysis on the temperature field.

From: Phase-field modeling of grain evolutions in additive manufacturing from nucleation, growth, to coarsening

Fig. 8

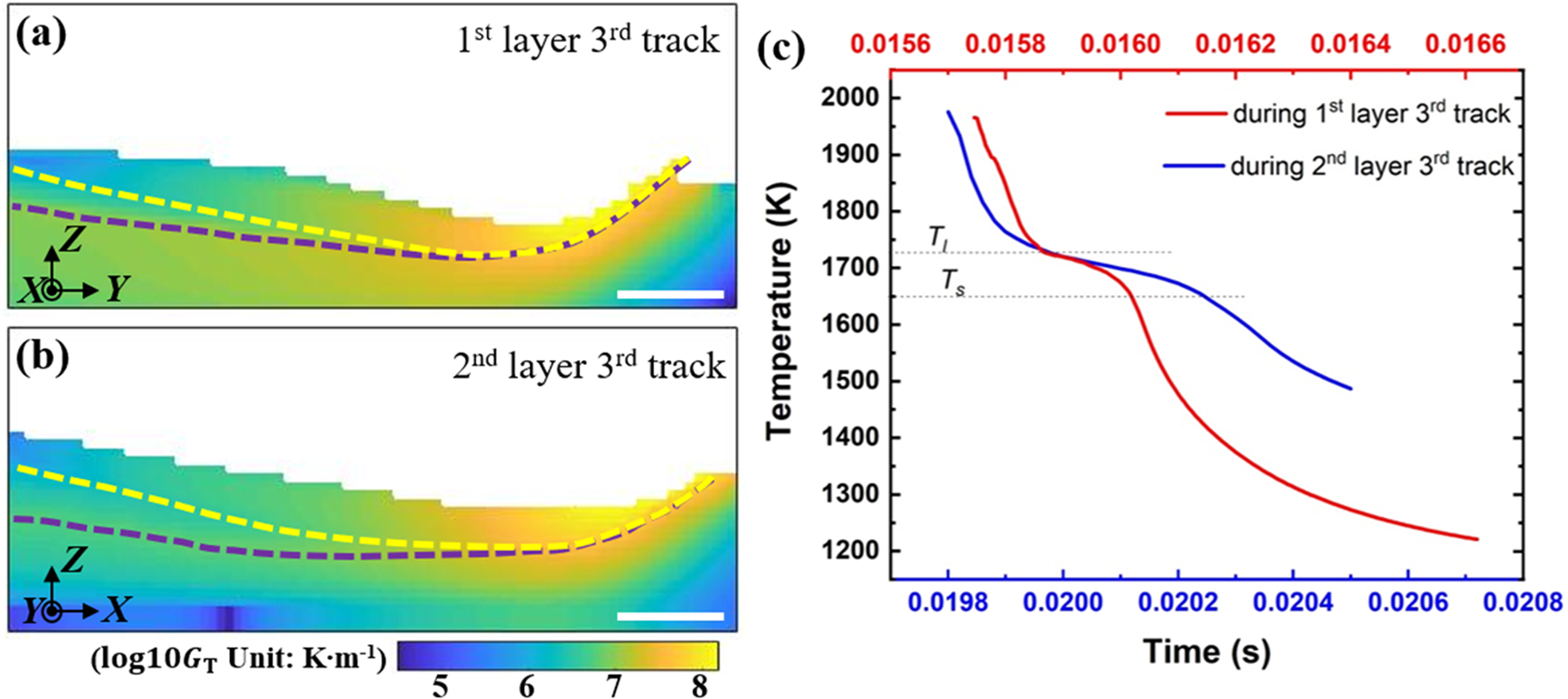

Temperature gradient at the longitudinal section of the molten pool in a 1st layer 3rd track and b 2nd layer 3rd track, with yellow/purple dashed line indicating the contour of liquidus/solidus temperature. The region between the two curves is named mushy zone. The color bar represents the value of \(\log 10G_T\). c Temperature histories of the 1st layer 3rd track and 2nd layer 3rd track. Scale bar, 50 µm in a, b.
