Fig. 2: The variation of simulated CBED patterns.

From: Probing atomic-scale symmetry breaking by rotationally invariant machine learning of multidimensional electron scattering

Fig. 2

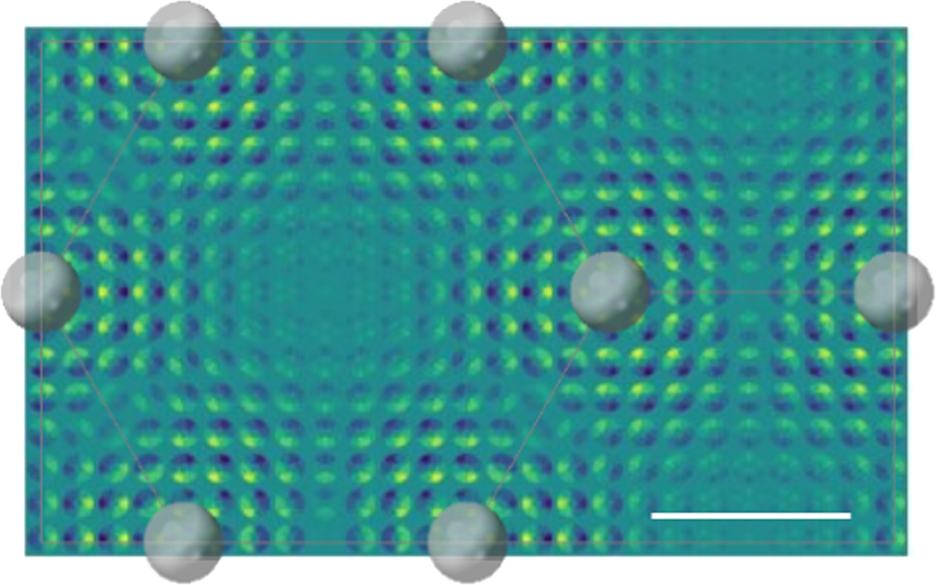

Simulated CBED patterns as a function of probe position for 60 kV incident electrons on graphene overlayed on the atomic positions. An aberration-free probe with a probe forming aperture of 31 mrad was assumed with resulting CBED patterns having a diameter of 62 mrad. No incoherence was added at this stage. The scale bar shown is 1 Å in length.
