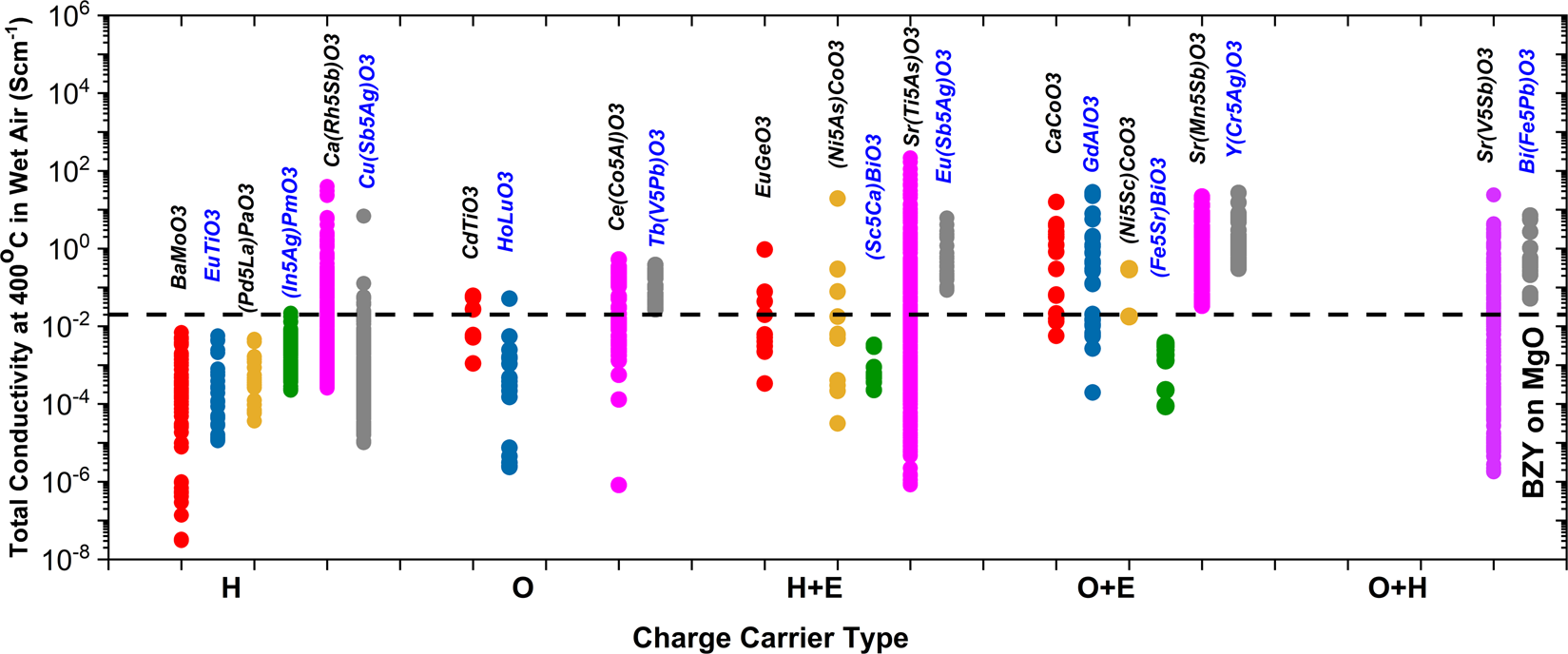

Fig. 6: Summary of all the screened stable perovskites of different charge carriers. | npj Computational Materials

Fig. 6: Summary of all the screened stable perovskites of different charge carriers.

From: Accelerated design and discovery of perovskites with high conductivity for energy applications through machine learning

Fig. 6

Different colored symbols indicate different classes of perovskites: red solid symbols are pure type I (AO + BO2) perovskites, blue are type II (A2O3 + B2O3) perovskites, yellow are the A-site doped type I perovskites, green are A-site doped type II, purple are the B-site doped type I, and gray are the B-site doped type II perovskites. Type I are doped with M2O3 and type II are doped with MO type oxides. The top candidate for each class has been labeled. The conductivity of BZY at 400 °C is shown by a black line for reference.
