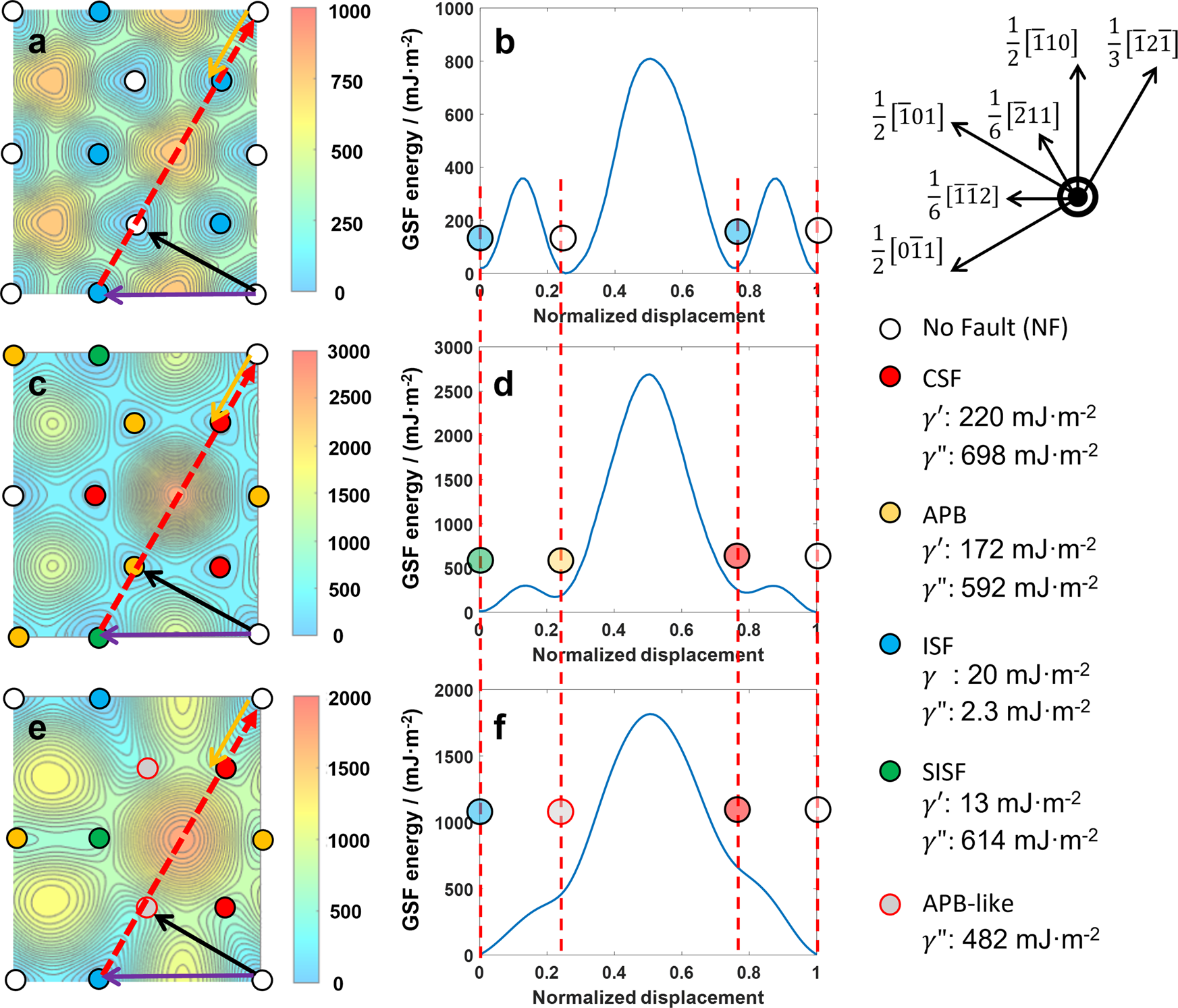

Fig. 1: GSF analysis of γ, γ′ and γ" phases.
From: Generalized stacking fault energy surface mismatch and dislocation transformation
GSF surface of {111} plane of a γ, c γʹ, and e γ" phases and the energy landscape along the \(\left[ {\bar 12\bar 1} \right]\)direction of b γ, d γ′, and f γ" phases. The no fault (NF) structure is the stacking-fault-free structure in all three phases. The legends for GSF contour plots in (a, c, e) have units of mJ m−2. The same unit is applied to all GSF contour plots.
