Fig. 5: Quantification of similarities and differences in BBP shapes.

From: Coarse-grained molecular dynamics integrated with convolutional neural network for comparing shapes of temperature sensitive bottlebrushes

Fig. 5

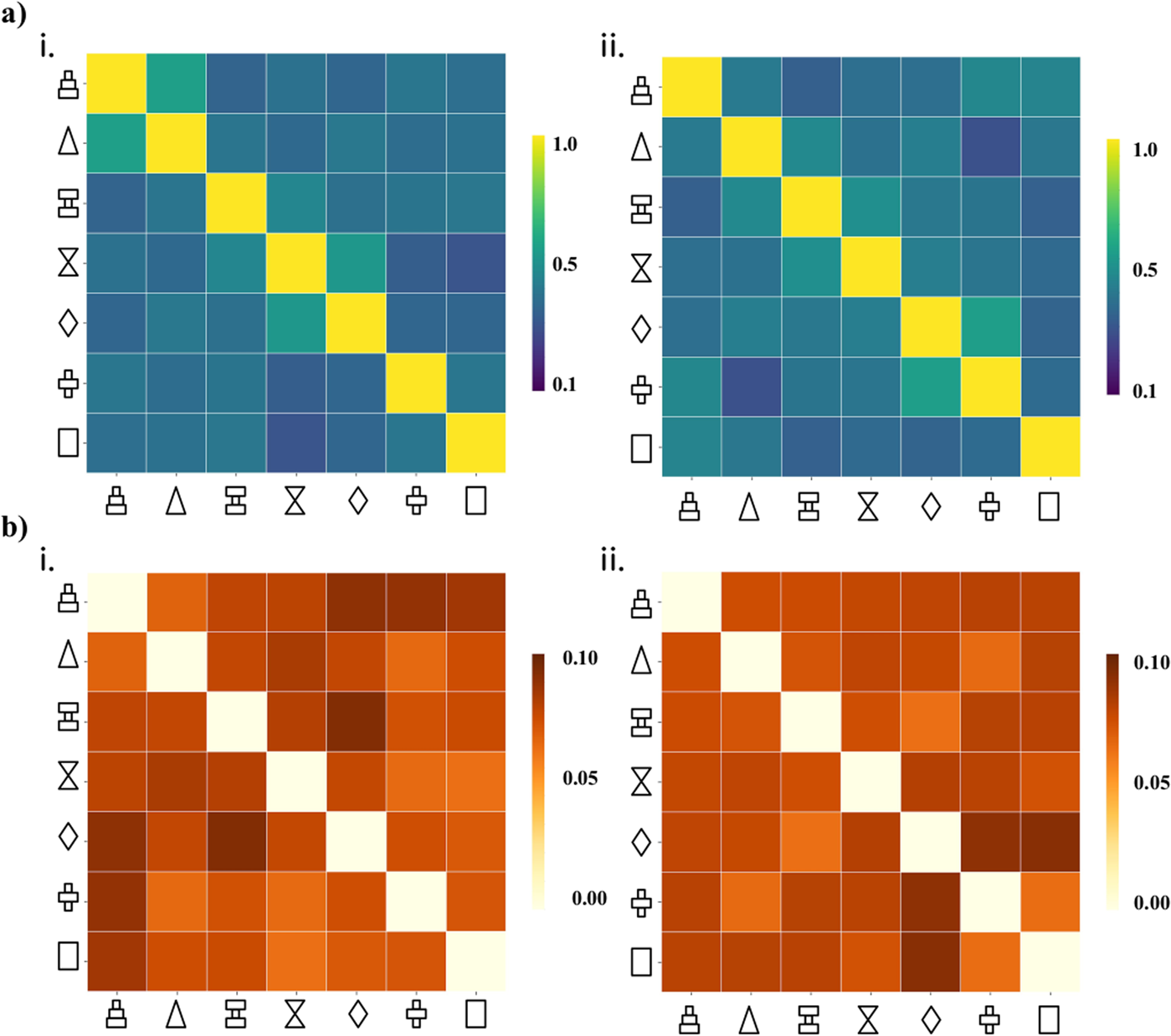

Shape-wise comparison of the (a) mean cosine similarity and (b) mean similarity standard deviation between the extracted feature vectors for each shape at (i) 300 K and (ii) 320 K. Legend for the similarity and standard deviation values is presented alongside each plot. Shape legend same as Fig. 3.
