Fig. 4: Spatial distributions of bond currents at the resonant energy of E ~ 0 for different BNRs with various arrangement of (2,2) and (2,3) chains in the CSR.

From: Resonant tunneling in disordered borophene nanoribbons with line defects

Fig. 4: Spatial distributions of bond currents at the resonant energy of E ~ 0 for different BNRs with various arrangement of (2,2) and (2,3) chains in the CSR.

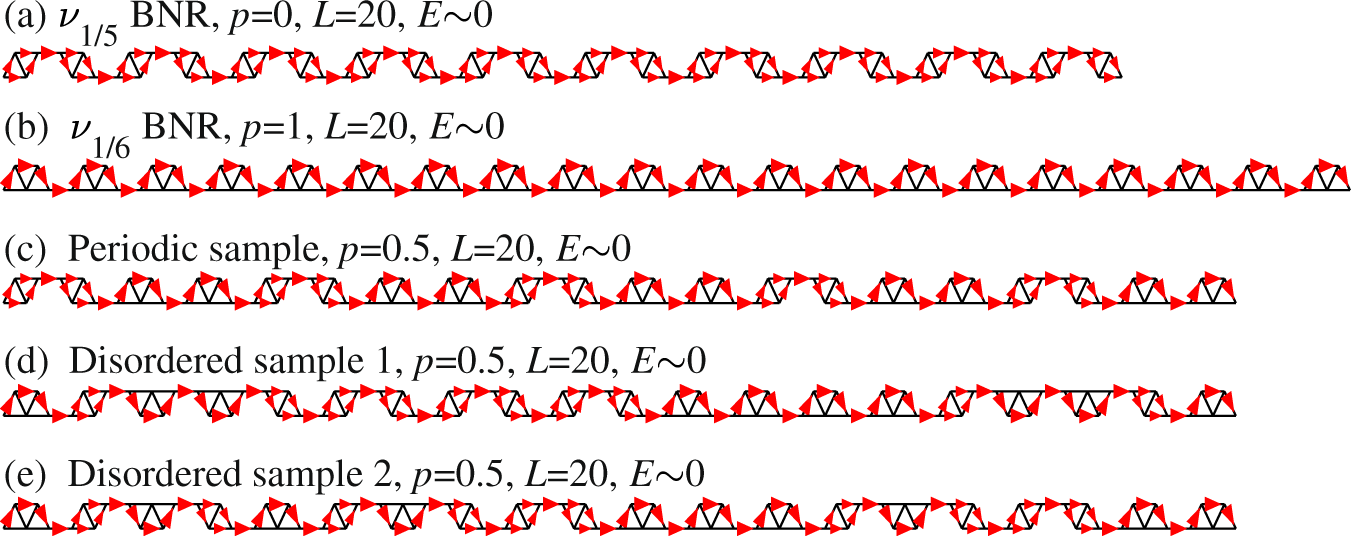

The top two panels refer to (a) a \(\nu _{1/5}\) BNR and (b) a \(\nu _{1/6}\) one, the middle panel (c) to a periodic BNR with p = 0.5, and the bottom panels (d) and (e) to two disordered samples with p = 0.5. Here, the width is N = 2, the length is L = 20, and the size of the arrows is proportional to the magnitude of bond currents.
