Fig. 5: Spatial distributions of averaged interchain currents 〈Il(n)〉 of disordered BNRs at the resonant energies marked by the stars in Fig. 2c. | npj Computational Materials

Fig. 5: Spatial distributions of averaged interchain currents 〈Il(n)〉 of disordered BNRs at the resonant energies marked by the stars in Fig. 2c.

From: Resonant tunneling in disordered borophene nanoribbons with line defects

Fig. 5: Spatial distributions of averaged interchain currents 〈Il(n)〉 of disordered BNRs at the resonant energies marked by the stars in Fig. 2c.

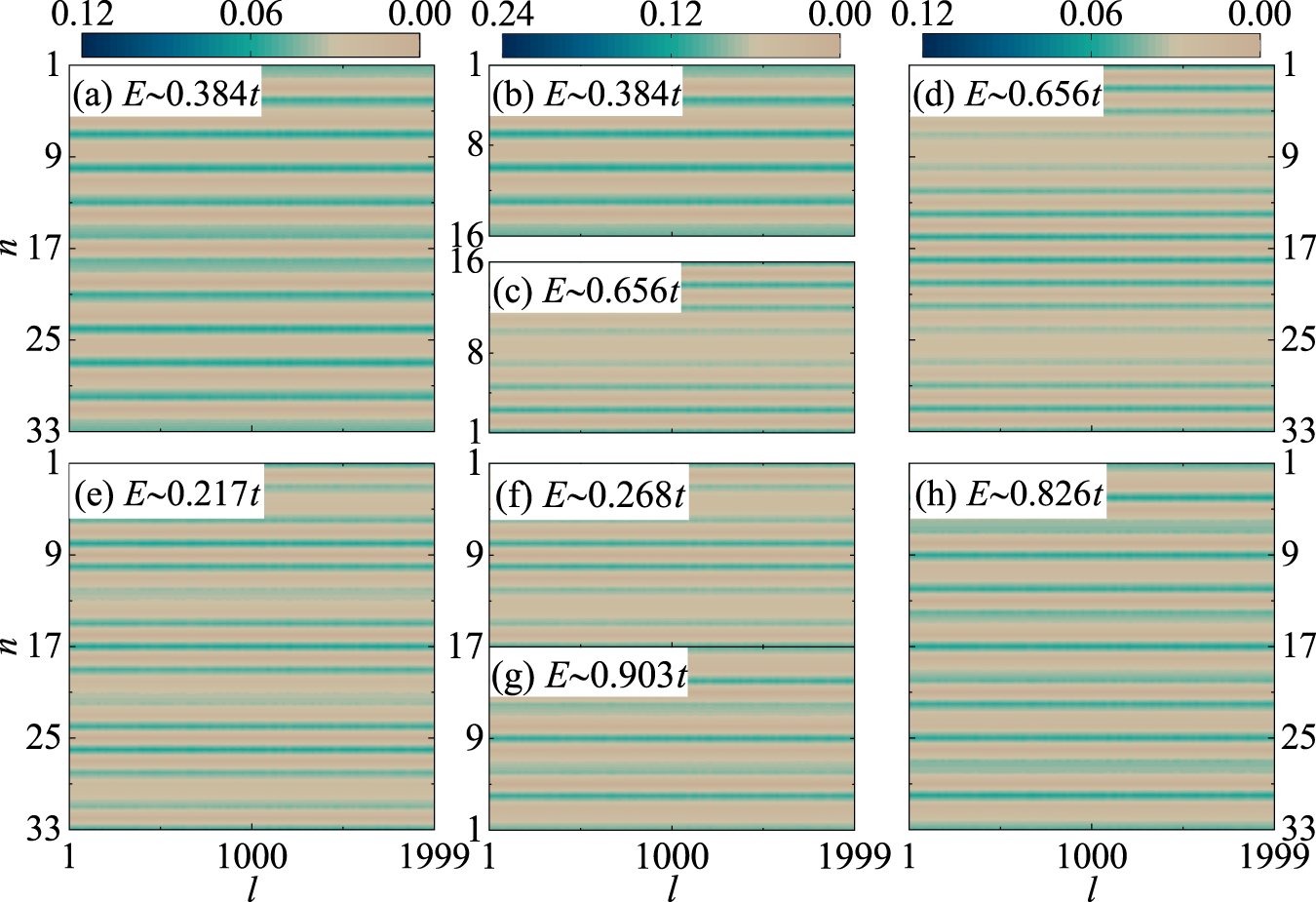

2D plots of 〈Il(n)〉 vs chain index l and row index n for N = 33 at (a) \(E\sim 0.384t\), (d) \(E\sim 0.656t\), (e) \(E\sim 0.217t\), and (h) \(E\sim 0.826t\), for N = 16 at (b) \(E\sim 0.384t\) and (c) \(E\sim 0.656t\), and for N = 17 at (f) \(E\sim 0.268t\) and (g) \(E\sim 0.903t\).
