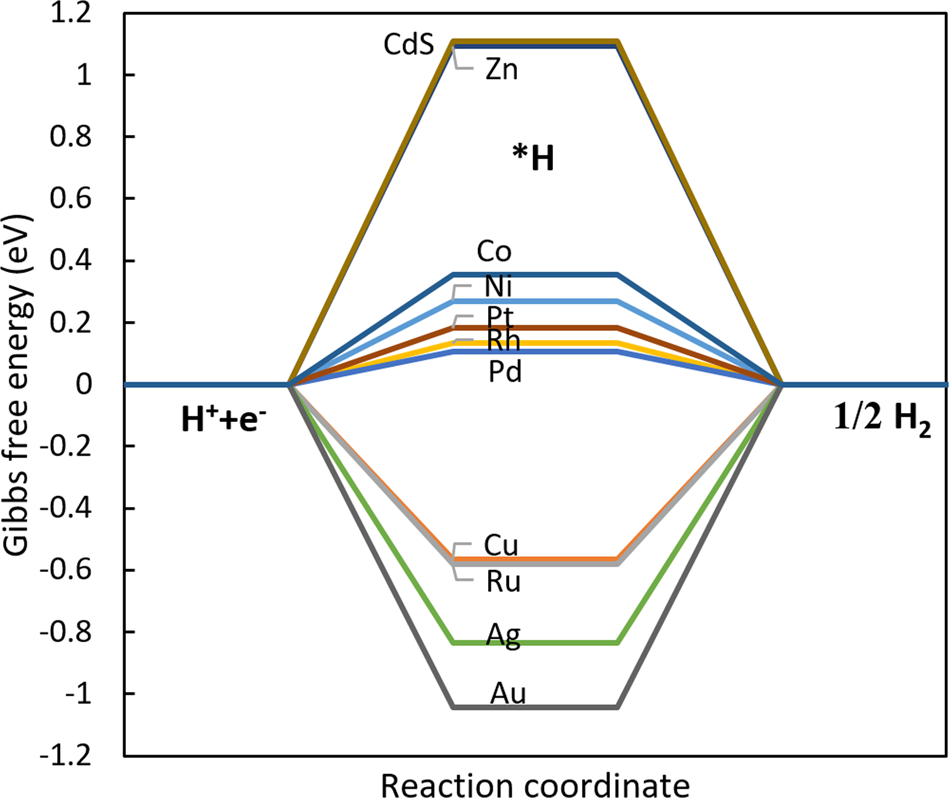

Fig. 7: Gibbs free energy diagrams of the pristine CdS surface and TM@CdS surfaces for HER.
From: Computational screening of transition metal-doped CdS for photocatalytic hydrogen production
H* indicates the adsorbed hydrogen atom on the doped CdS surface. Data are available in Zenodo.
