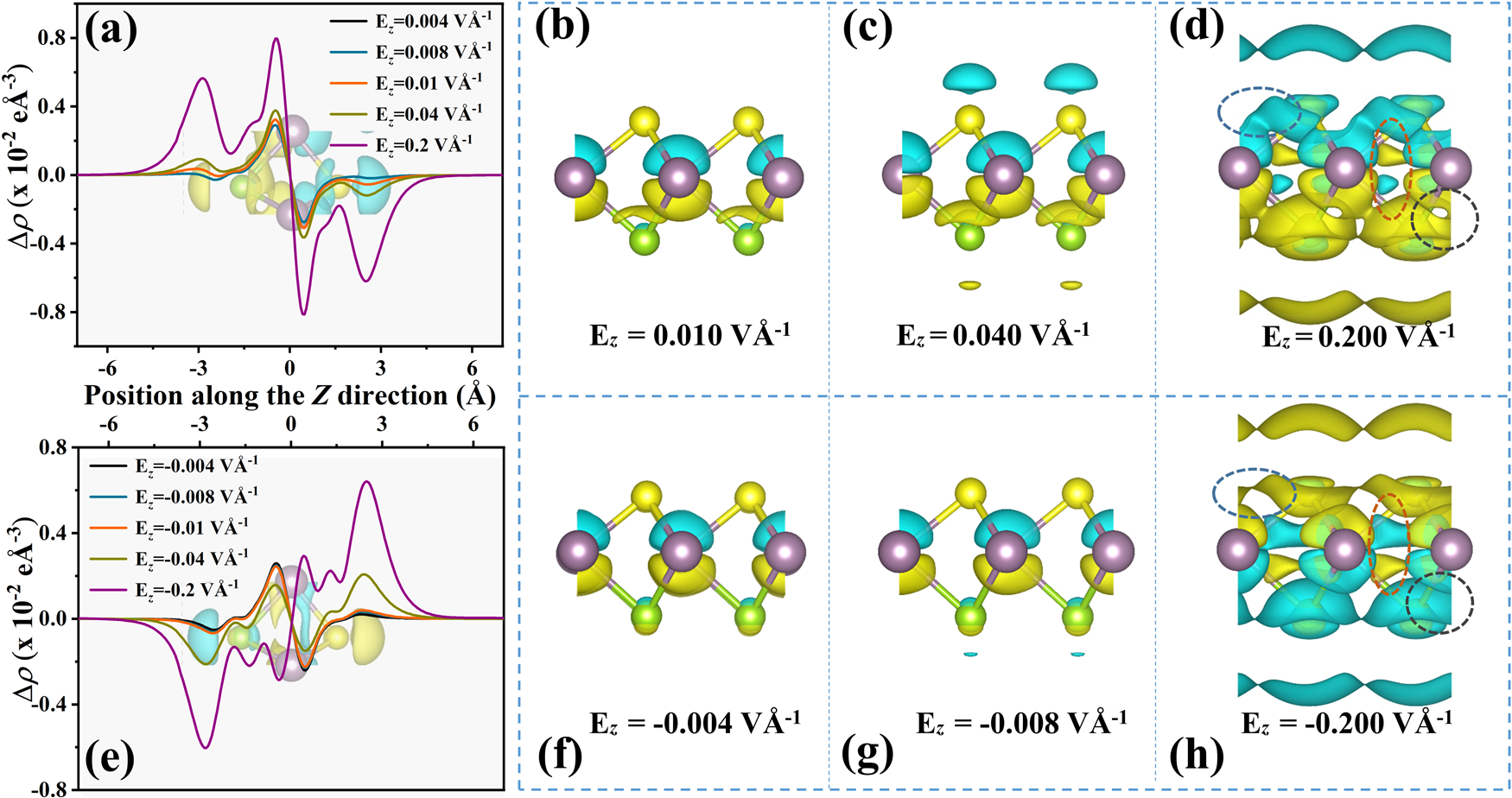

The difference in charge density induced by the representative positive a and negative e electric fields. The detailed analysis is presented based on the representative electric fields of 0.010 b, 0.040 c, and 0.200 VÅ−1 d, as well as −0.004 f, −0.008 g, and −0.200 VÅ−1 hρ = ρ(Ez) – ρ(Ez = 0)) (yellow: positive accumulation of charge, blue: negative depletion of charge). The isosurface is 10−5 for the contour plot.
