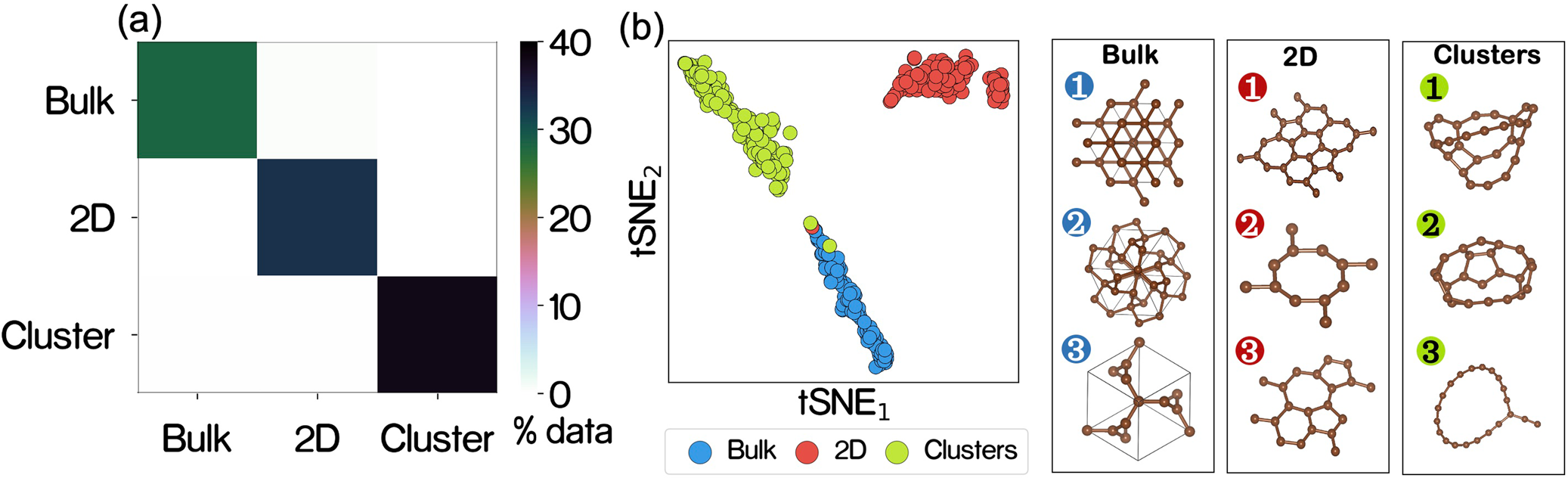

Fig. 4: Classification of carbon polymorphs of different dimensionalities 0D (Clusters), 2D (Sheets), and 3D (Bulk).

a Shows the confusion matrix of the prediction on the test dataset by CEGANN. b The t-SNE plot of the feature representation of the test dataset as predicted by CEGANN.
