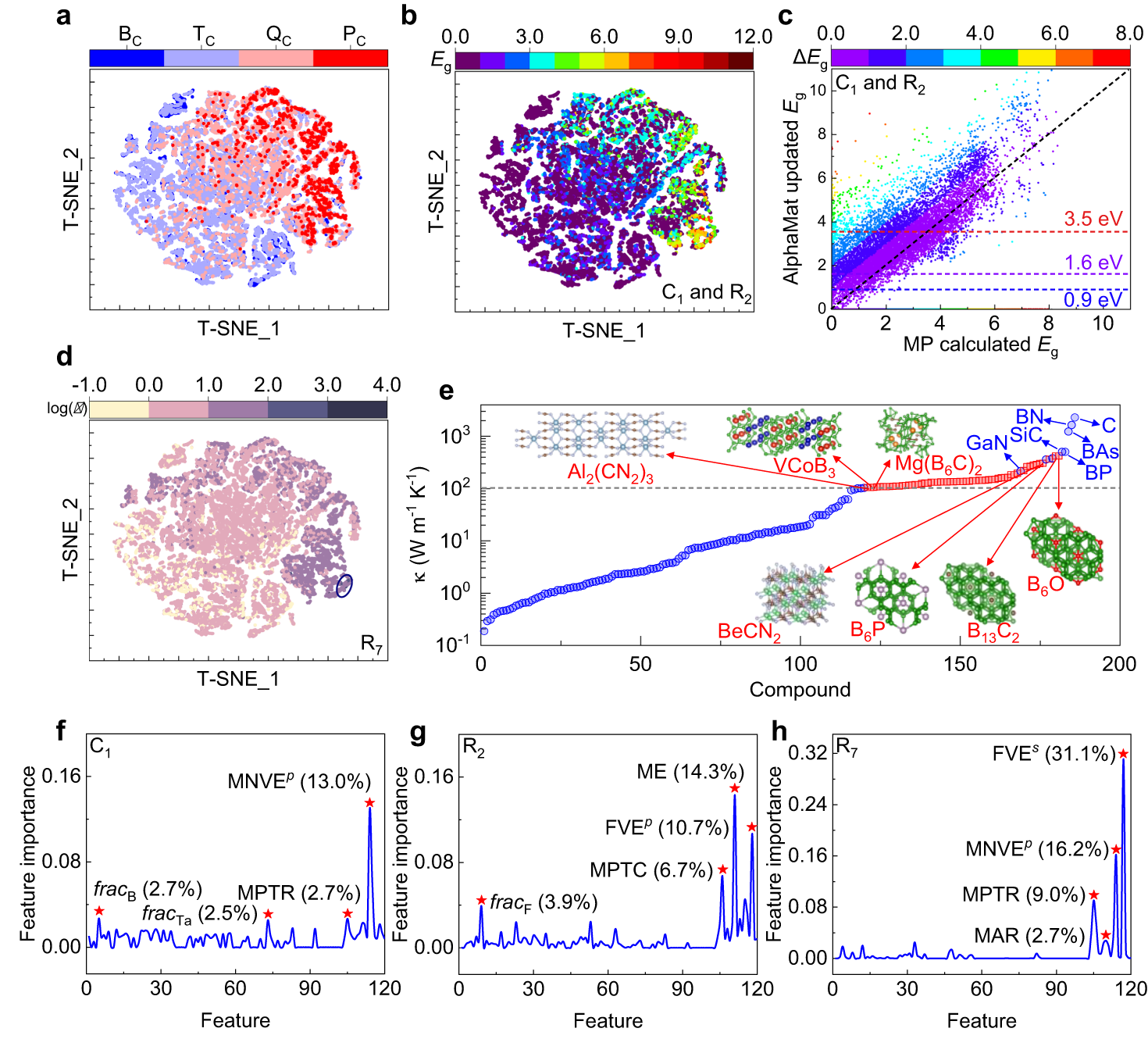

Fig. 3: Material discovery through C1, R2, and R7 models established by AlphaMat.
From: AlphaMat: a material informatics hub connecting data, features, models and applications
a t-SNE plot, where the sites are colored with their compound type. b t-SNE plot, where the sites are colored with their Eg. c Correlation of predicted Eg and calculated Eg, the color bar denotes the Eg changes. d t-SNE plot, where the sites are colored with their thermal conductivity, the oval mark determines the compounds with high thermal conductivities. e Discovered compounds with high thermal conductivities (red squares) and the known compounds (blue circles). f Embedded feature importance of C1. g Embedded feature importance of R2. h Embedded feature importance of R7.
