Fig. 6: Disordered liquid and amorphous structures.

From: Complex Ga2O3 polymorphs explored by accurate and general-purpose machine-learning interatomic potentials

Fig. 6

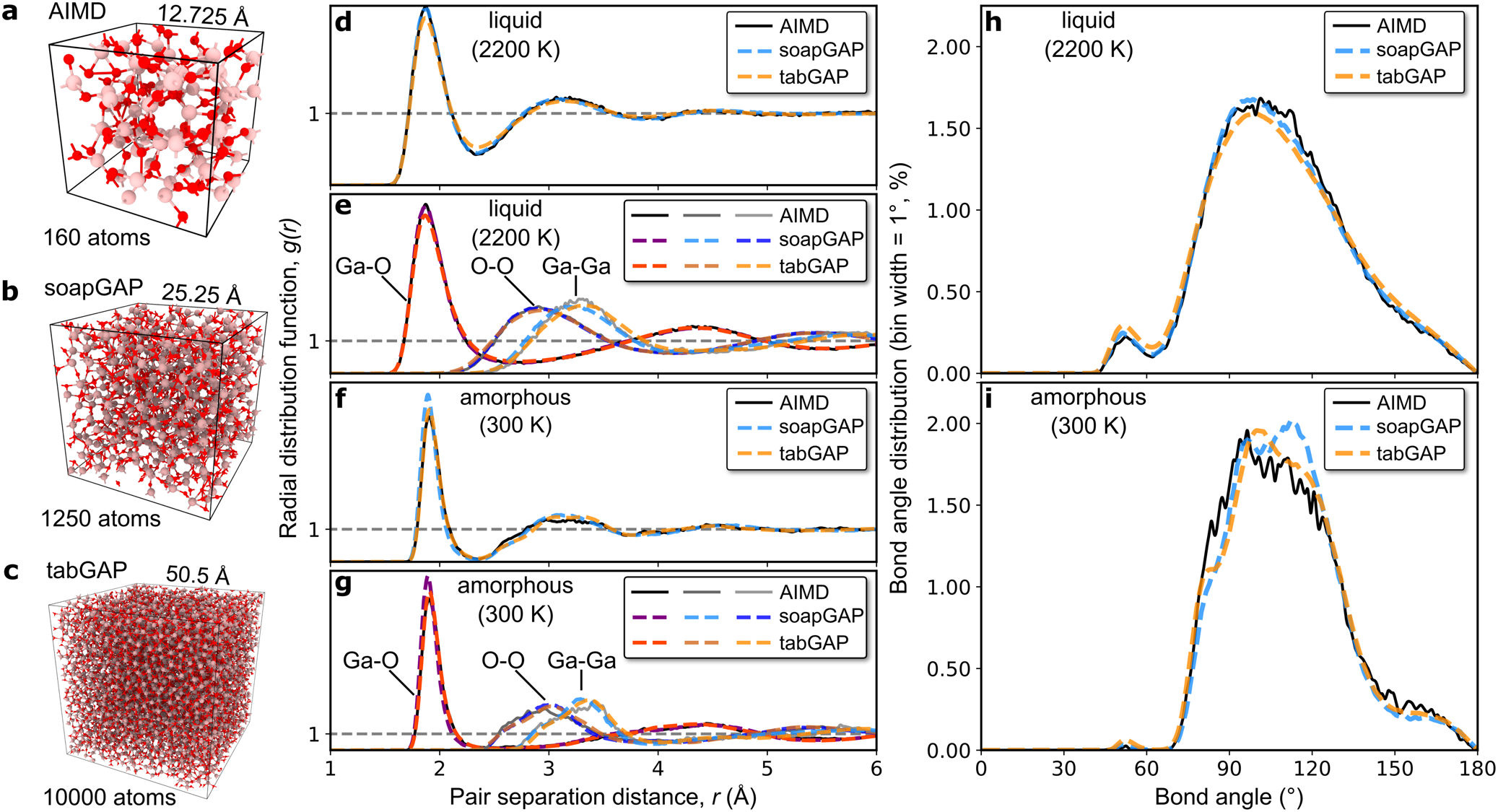

Left panel: Three liquid/amorphous cells with consistent density of 4.84 g cm−3 used for (a) AIMD, (b) soapGAP and (c) tabGAP runs. Middle panel: RDFs and PRDFs of the (d, e) liquid and (f, g) amorphous configurations. Right panel: Bond angle distributions (h, i) of the Ga-O bonds with the cutoff distance of 2.4 Å where the first valley of the RDF lies.
