Fig. 8: Energy composition of a semicoherent interface.
From: Coherent and semicoherent α/β interfaces in titanium: structure, thermodynamics, migration

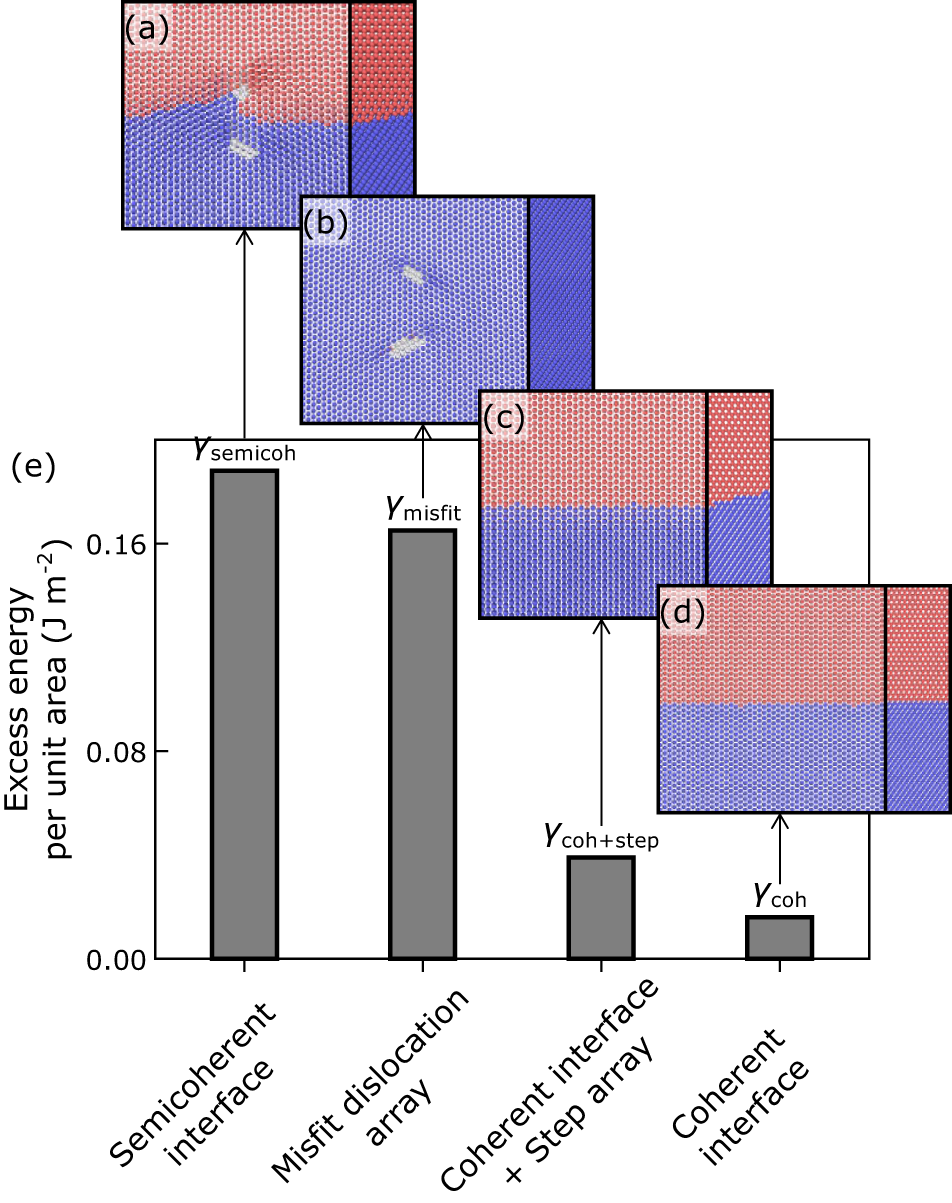

a–d Show the atomic structures of semicoherent interface, an array of misfit dislocations, coherent interface plus steps, and coherent interface, respectively. e Shows the excess energies of the structures (a–d).
