Fig. 9 | npj Computational Materials

Fig. 9

From: An anisotropic lattice Boltzmann - phase field model for dendrite growth and movement in rapid solidification of binary alloys

Fig. 9

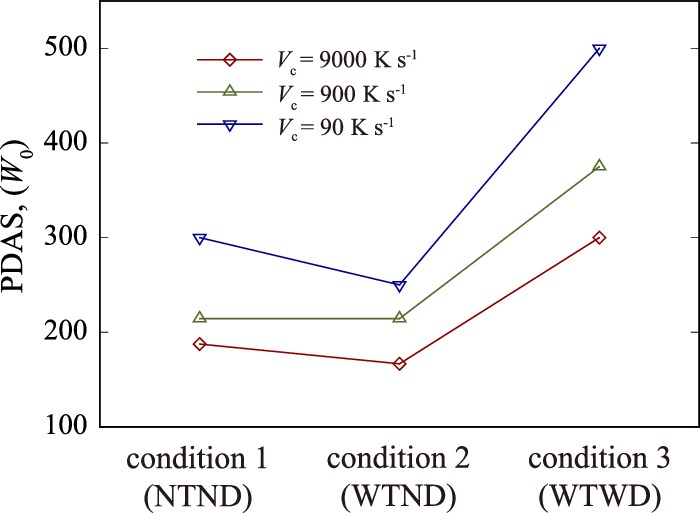

Comparison of PDAS in equilibrium solidification and rapid solidification at different cooling rates. A total of three conditions are shown, namely, NTND, WTND and WTWD. The red line with diamond represents the cooling rate is 9000 K s−1. The green line with triangle represents the cooling rate is 900 K s−1, and blue line with inverted triangle 90 K s−1.
