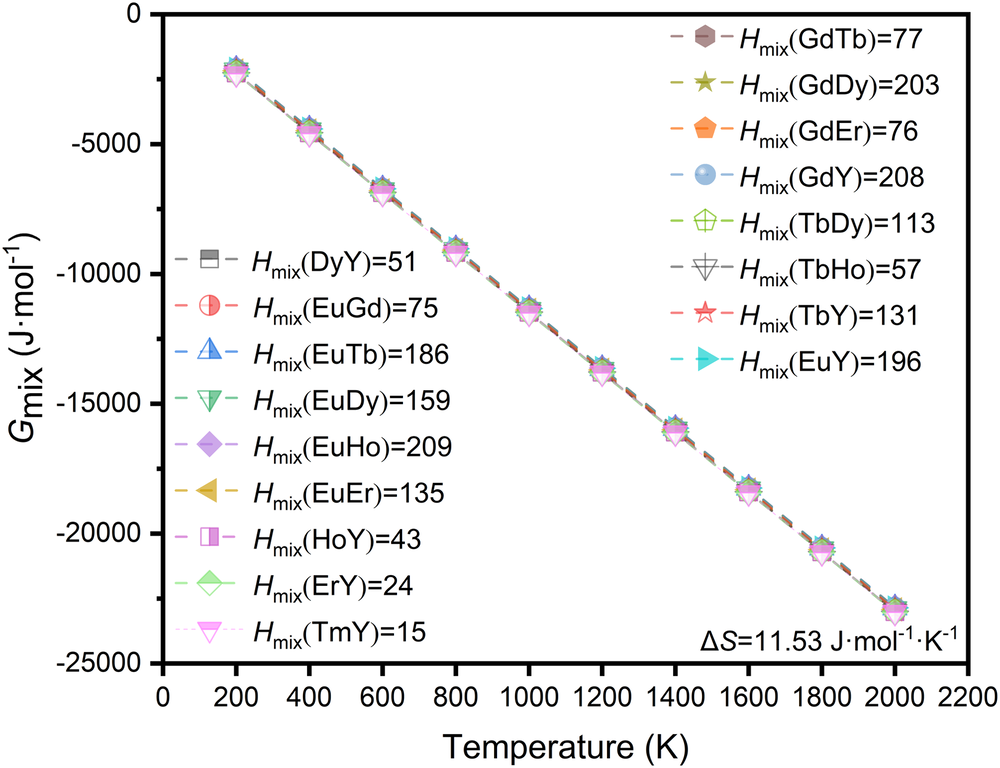

Fig. 9: The mixing Gibbs free energy of (RE10.25RE20.25Yb0.25Lu0.25)2Si2O7 at different temperatures.
The calculated mixing enthalpies and mixing entropy of various (RE10.25RE20.25Yb0.25Lu0.25)2Si2O7 are all listed in the figure, respectively.
Fig. 9: The mixing Gibbs free energy of (RE10.25RE20.25Yb0.25Lu0.25)2Si2O7 at different temperatures. | npj Computational Materials
