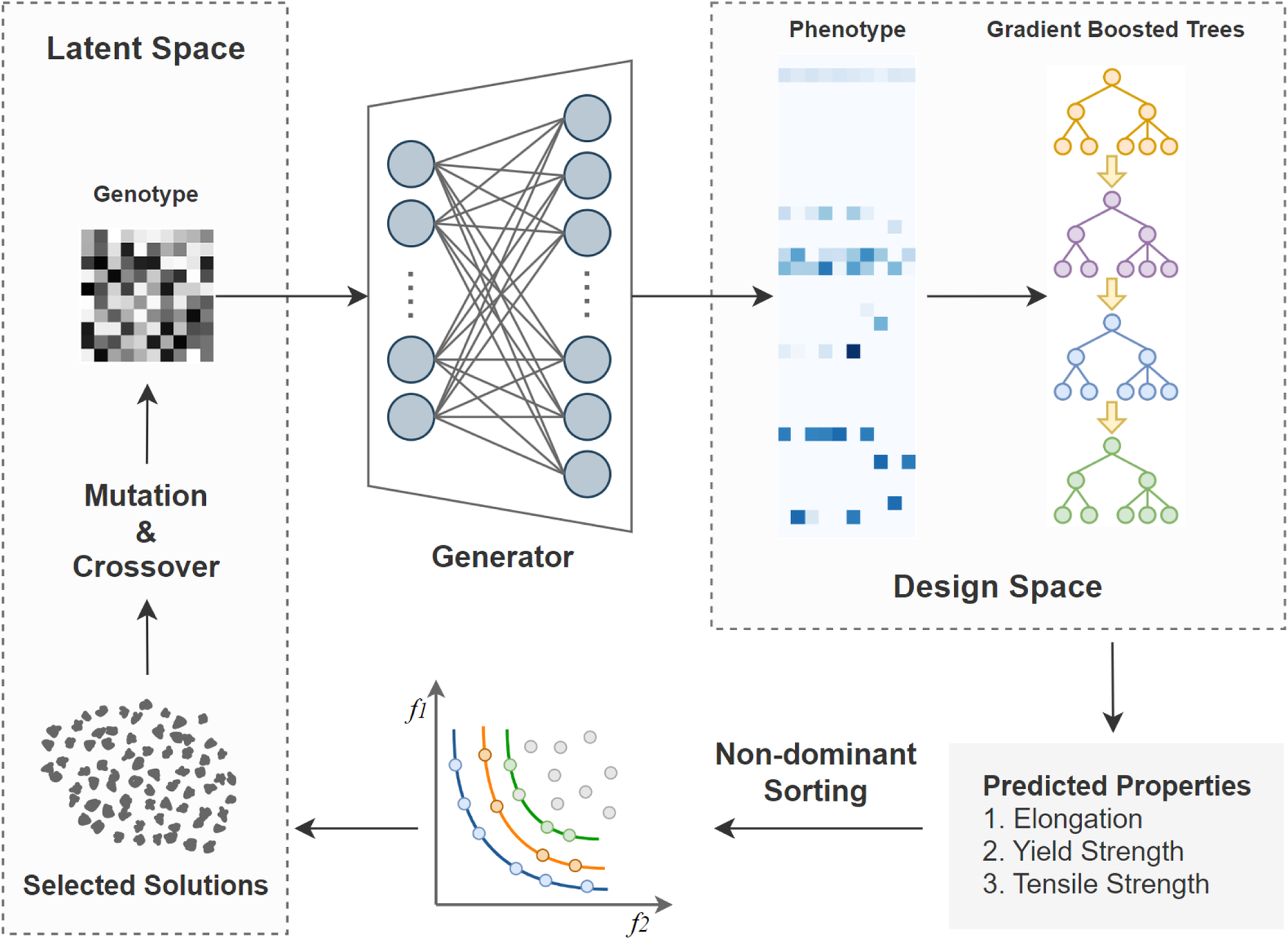

Fig. 6: Schematic representation of the proposed NSGAN framework.

The genotype and phenotype are indicated by heatmaps, displaying the values of the latent variables and design specification across dimensions. The phenotype heatmap reveals that the data distribution in the design space is highly sparse, with most dimensions equal to 0.
