Fig. 6: CrystalNet architecture.
From: Towards end-to-end structure determination from x-ray diffraction data using deep learning

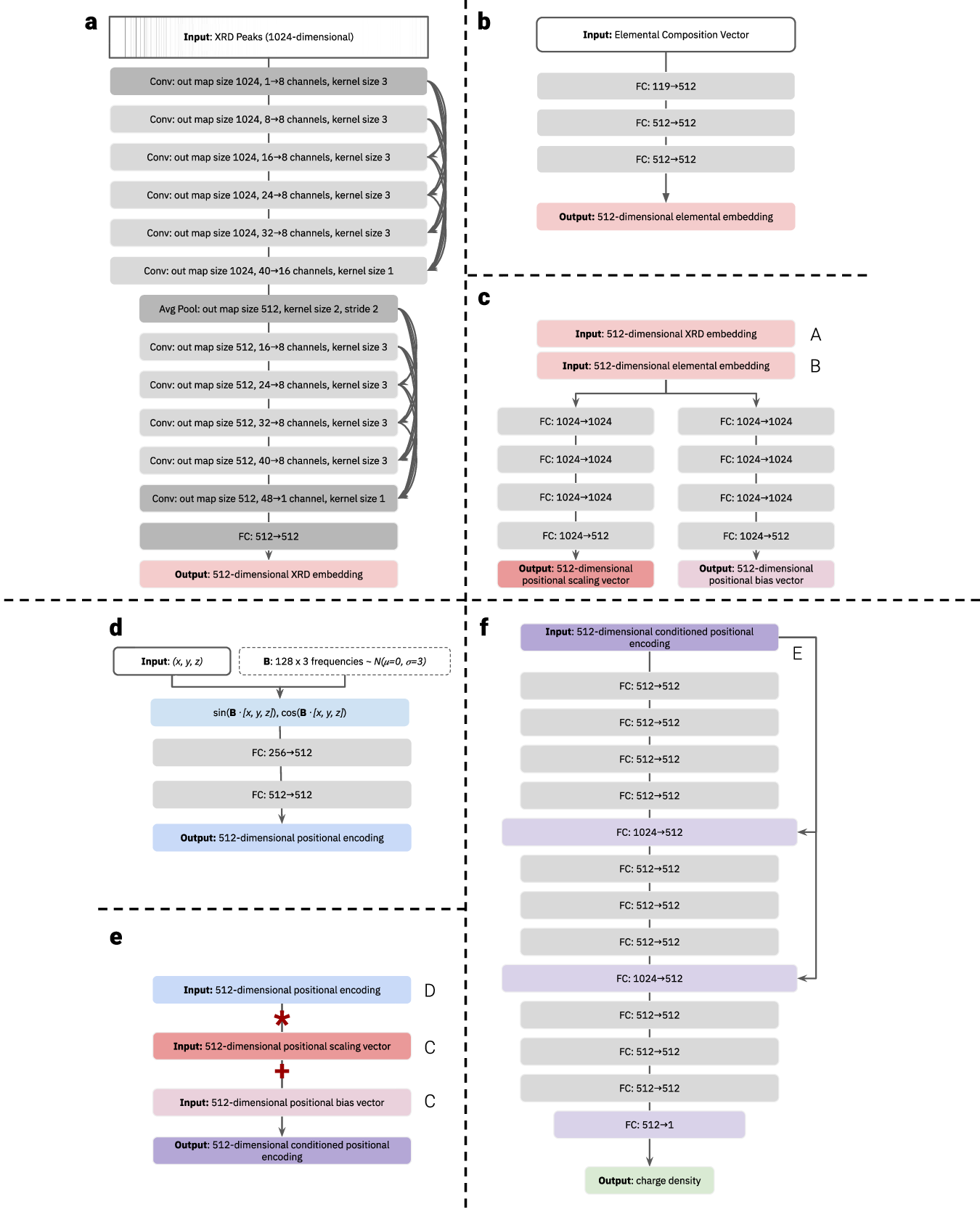

a shows the architecture of the x-ray diffraction encoder, b shows the architecture of the elemental composition encoder, c shows the architecture of the feature fusion network, d shows the architecture of the positional encoder, e shows the architecture of the conditioning network, and f shows the architecture of the final charge density regressor.
