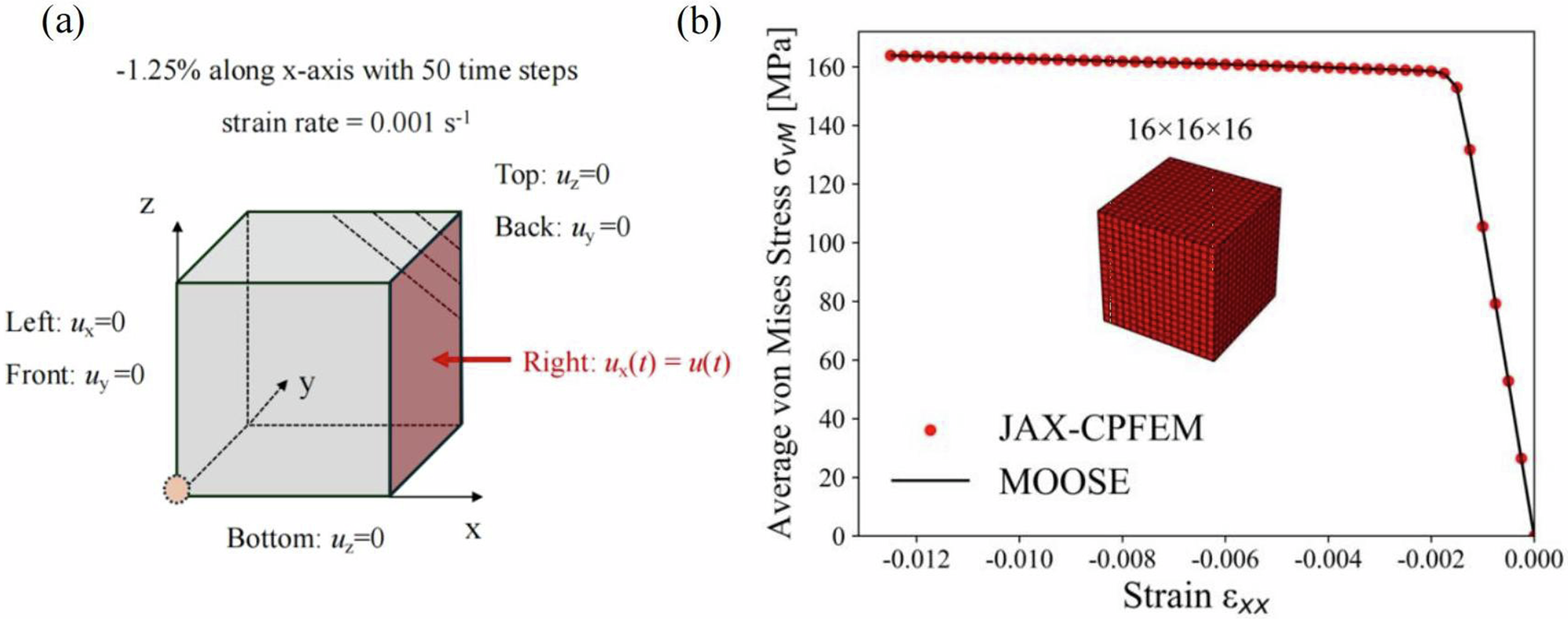

Fig. 1: Comparison of the CPFEM results between JAX-CPFEM and MOOSE for Case study 1: single crystal tantalum (BCC).

From: Efficient GPU-computing simulation platform JAX-CPFEM for differentiable crystal plasticity finite element method

Fig. 1

In (a), we show the boundary condition: the compressive experiment compresses the right surface with a prescribed displacement condition and applies constraints on the other five faces. b A comparison of simulation results of the same problem between JAX-CPFEM (points) and MOOSE (line).
