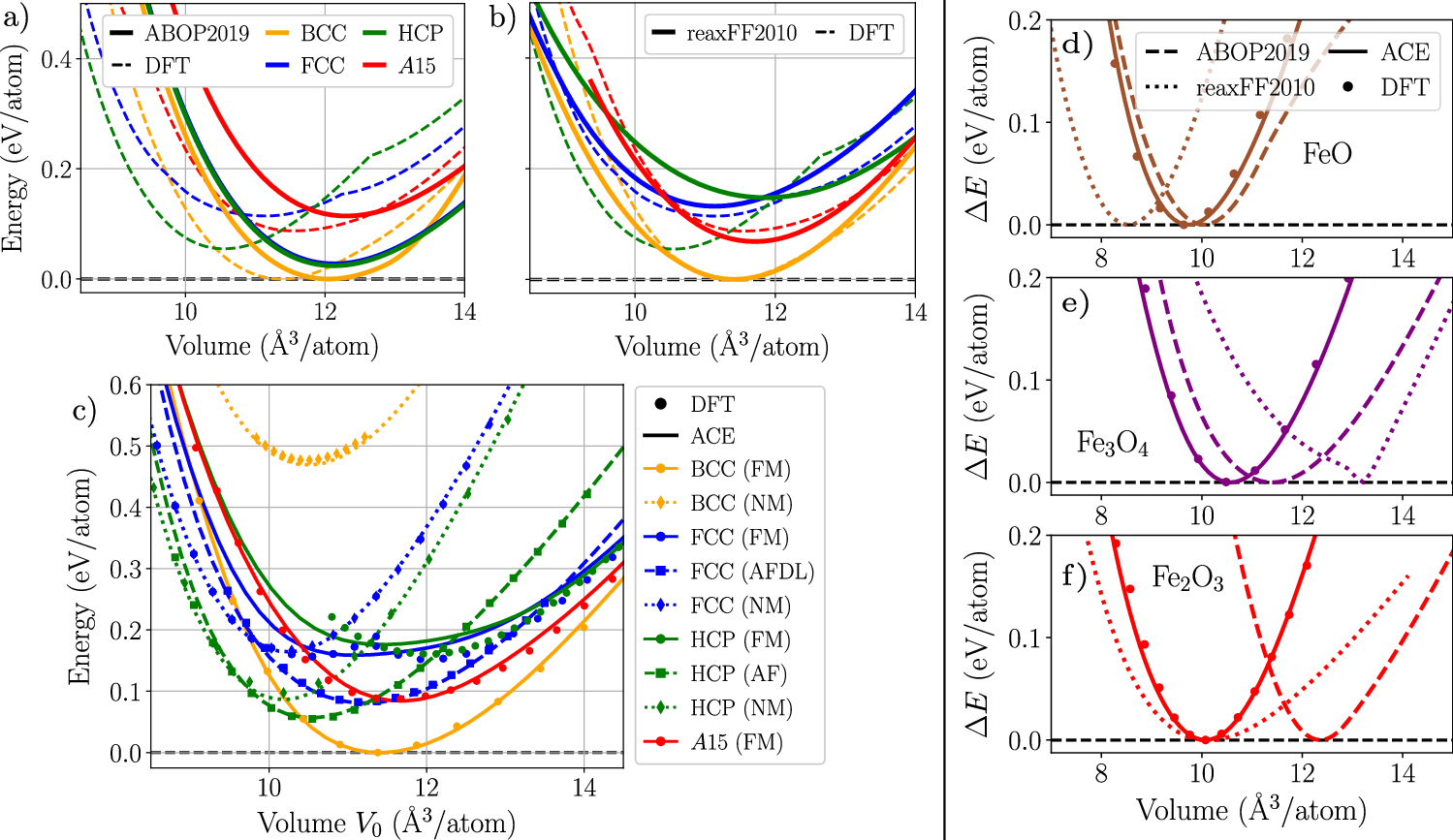

Fig. 2: Energy-volume for iron and iron oxides.
From: Development of an atomic cluster expansion potential for iron and its oxides
