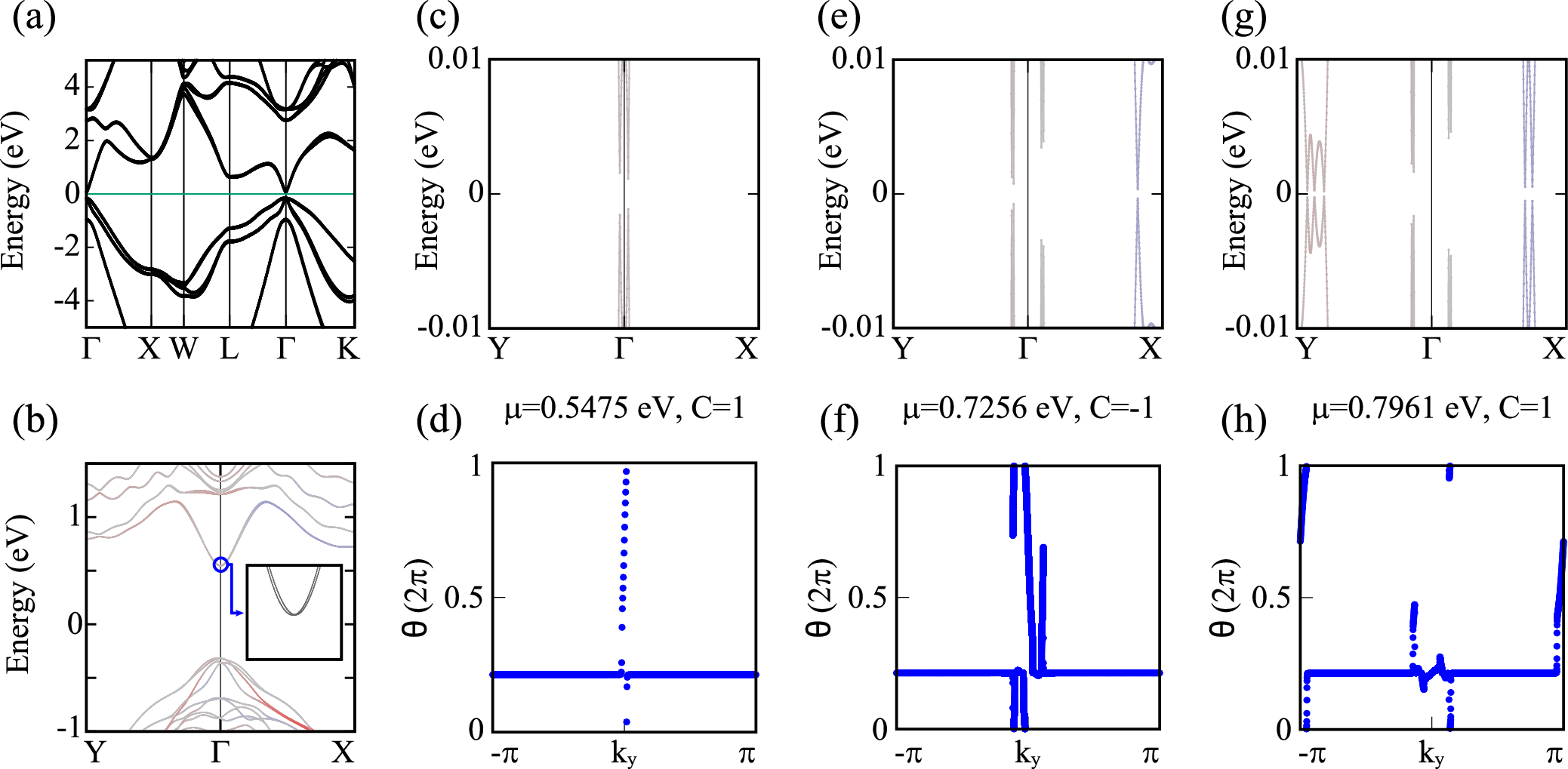

Fig. 8: Numerical results of InSb.
From: A numerical method for designing topological superconductivity induced by s-wave pairing
a Band structure corresponding to the TB model of InSb. b Band structure of the 10-layer slab in the (001) direction. c, d BdG band spectrum, and the Wilson loop with μ = 0.5475 eV, the corresponding Chern number is 1. e, f BdG band spectrum, and the Wilson loop with μ = 0.7256 eV, the corresponding Chern number is −1. g, h BdG band spectrum, and the Wilson loop with μ = 0.7961 eV, the corresponding Chern number is 1.
