Fig. 2: Representative vibrational modes and effective mass distribution of the DM-based resonator.
From: Multi-target digital material design via a conditional denoising diffusion probability model

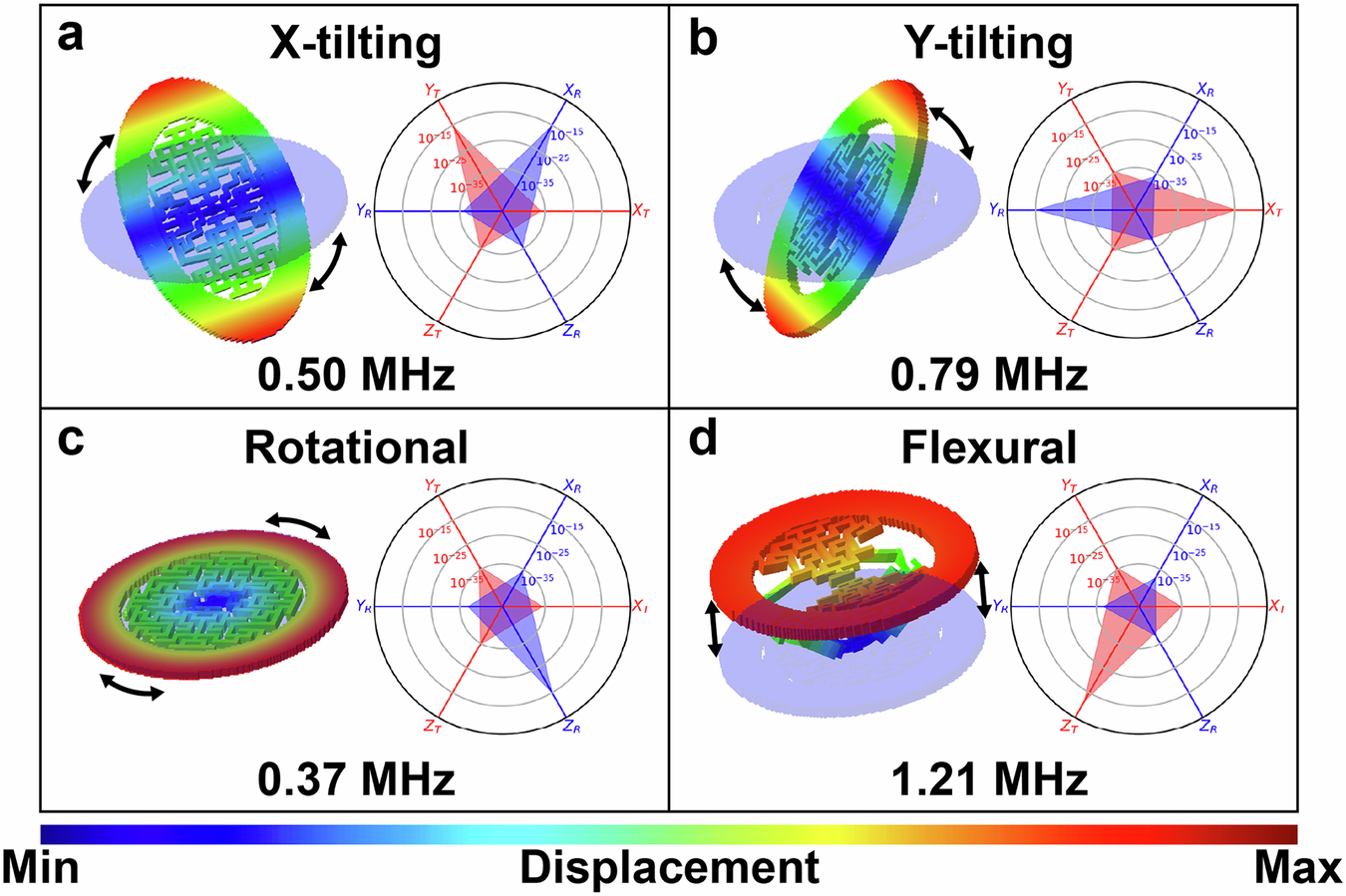

Finite element analysis (FEA) simulated mode shapes (left) and effective masses (the subscript T denotes translation in the corresponding direction, while the subscript R represents rotation in the corresponding direction) for: a the X-tilting mode, b the Y-tilting mode, c the Rotational mode, and d the Flexural mode. The units of the effective mass components are in kilograms (kg), for both translational and rotational motions. The differences in effective mass distribution across various vibrational modes are used for the automatic extraction of each mode’s frequency.
