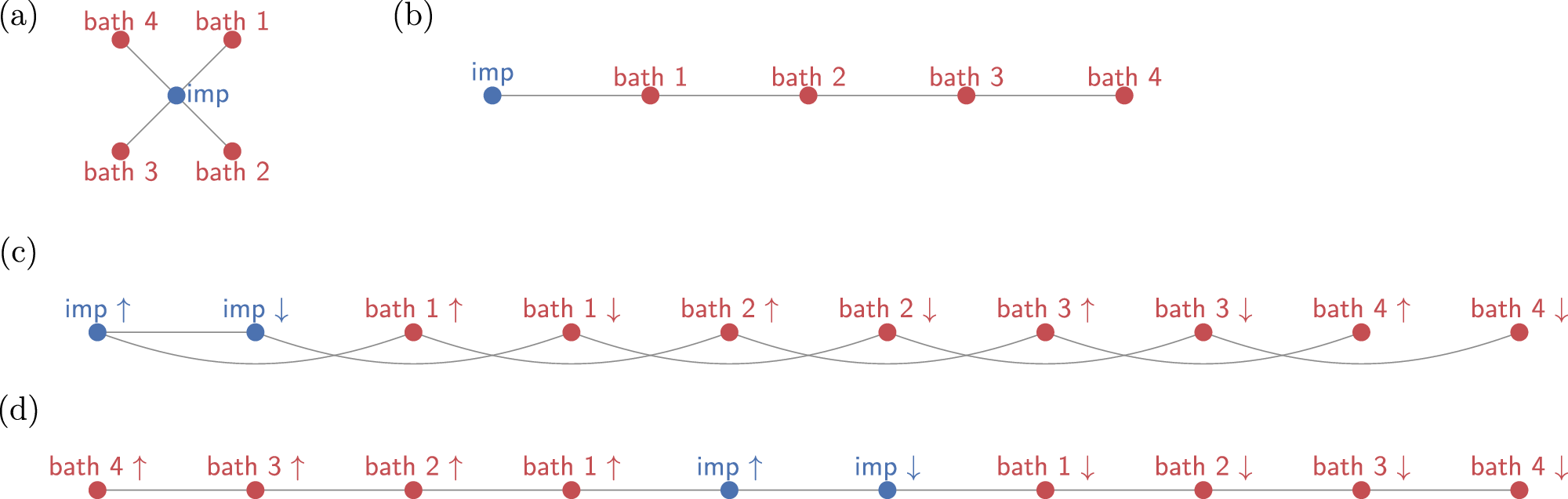

Fig. 5: Mapping and topology of the AIM for 4 bath sites.
From: Dynamical mean field theory for real materials on a quantum computer
The star topology is shown in subfigure (a) and subfigure (b) shows the chain topology. Subfigure (c) shows the Jordan-Wigner mapping of spin-orbitals to qubits, where the order is based on qubit indexing, and subfigure (d) illustrates the same mapping with re-indexed qubits. The gray lines in c, d connect sites which are coupled in the Hamiltonian.
